Armorgard Turntable Truck TT1 Operational And Maintenance Manual

Platform trolley

Advertisement

Quick Links

turntable truck
TM
Operational and maintenance manual
Suitable for: TT1, TT1-PRO
023 9238 0280
armorgard.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turntable Truck TT1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Armorgard Turntable Truck TT1

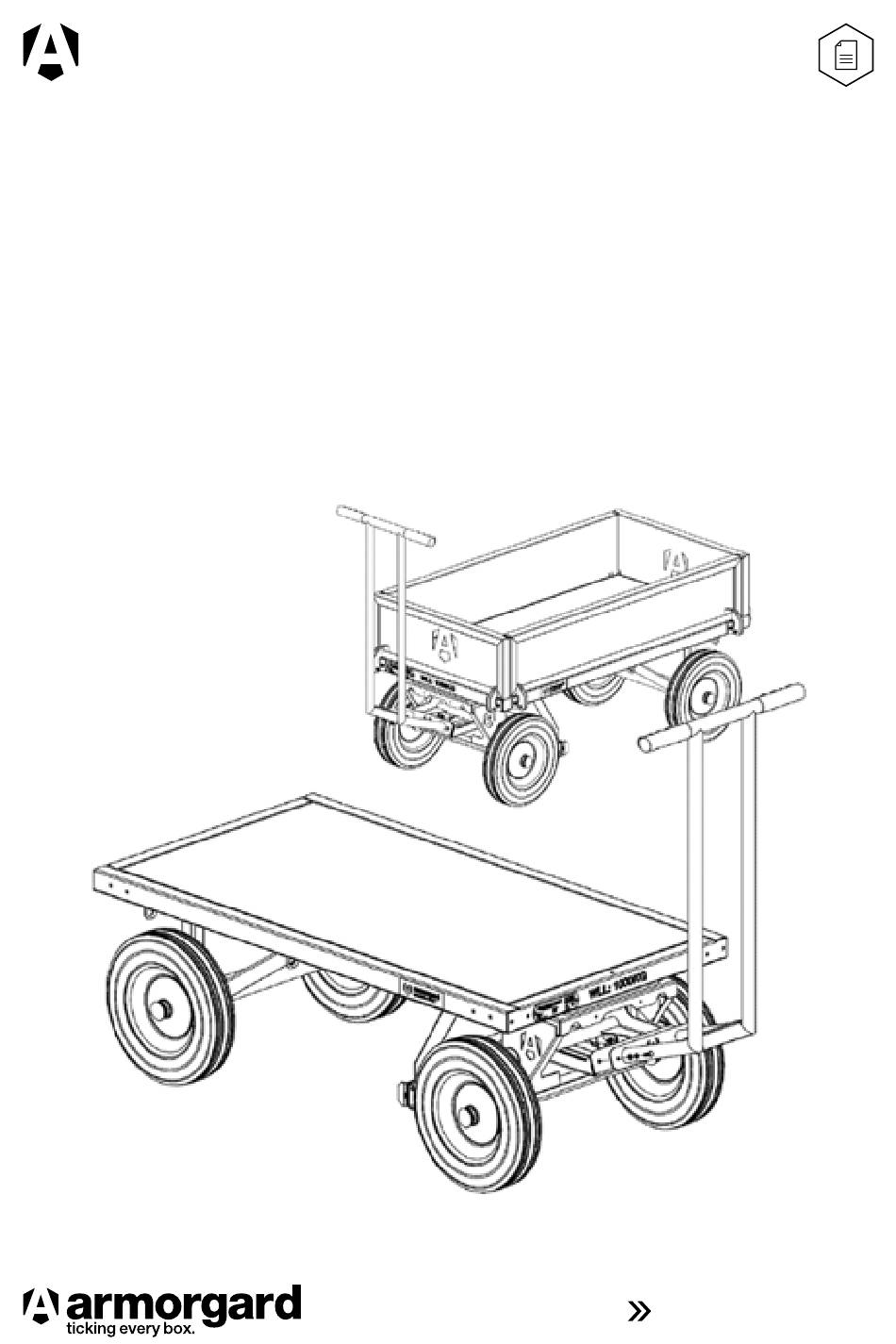

  • Page 1 Operational and maintenance manual Suitable for: TT1, TT1-PRO 023 9238 0280 armorgard.co.uk...
  • Page 2 Welcome Welcome to your Armorgard Turntable Truck. The trolley that takes the strain of transporting bulk quantities of material and equipment. Please consult this manual for instructions on how to get the most from it. Please read this operational and maintenance manual carefully prior to setting up and using the Turntable Truck.
  • Page 3: Table Of Contents

    Contents Safety information Product specification What’s included Tools you’ll need Getting to know your Turntable Truck How to assemble your Turntable Truck How to use your Turntable Truck Optional extras How to fit the side kit How to use the side kit Storing the unit Transporting the unit Equipment care...
  • Page 4: Safety Information

    Before using the Turntable Truck, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. The Turntable Truck is too heavy to be safely lifted by one person. Carry out a risk assessment before lifting or lowering any Turntable Truck to ensure there is no risk of injury.
  • Page 5: Product Specification

    Whilst every effort has been made to ensure this operational and maintenance manual covers every aspect needed to operate your product safely, please take care whilst using the product and always operate with caution. Always liaise with management personnel on site for any additional operational restrictions that you need to be aware of. Don’t Take care when manoeuvring Overload the trolley...
  • Page 6: What's Included

    What’s included... 1x Turntable Truck/ 1x handle 2x M6x20 hex head screw Turntable Truck PRO 2x M6 washer 2x M6 spring washer 8x TT1 side bracket (TT1-SK only) 2x TT1 long side panels 16x M6 x 20 coach bolt 8x M6 x 35 hex head bolt 2x TT1 short side panels (TT1-SK only) 16x M6 washer...
  • Page 7: Tools You'll Need

    Tools you’ll need... 2x 10mm spanner, ratchet or socket...
  • Page 8: Getting To Know Your Turntable Truck

    Getting to know your Turntable Truck The trolley that takes the strain of transporting bulk quantities of material and equipment. Raised heavy-duty deck Soft-grip handle for good ground clearance that automatically and easy loading springs to upright position Large puncture-proof Lashing solid rubber points to...
  • Page 9: How To Assemble Your Turntable Truck

    How to assemble your Turntable Truck Attach the handle to the trolley using Check the handle is secure and the the M6 washers and M6 spring materials are safely stored before washers on each side, as shown moving off. above.
  • Page 10: How To Use Your Turntable Truck

    How to use your Turntable Truck PRO The handle will be upright when Simply pull the handle down into a stationary and the brake will be comfortable driving position. The engaged. Before use, ensure any brake will automatically disengage and material being moved is not in contact can be moved.
  • Page 11: Optional Extras

    Take your Turntable Truck to the next level with these optional extras Contact the Armorgard team to find out more about the optional extras for your product. Turntable Truck side kit TT1-SK To secure loads when in transit...
  • Page 12: How To Fit The Side Kit

    How to fit the side kit Insert the M6 coach bolts into the Lift the side panel into position. Ensure square holes from the inside of the the holes in the panel align with the frame. Attach the bracket and fix in slots in the bracket.
  • Page 13: How To Use The Side Kit

    How to use the side kit Grab the top lip of the side panel and Pull panel away from the trolley to lift until the bolts in the brackets hit lower the side. The brackets will slot the top of the slot. Guide the bolt head in and out of the frame when lowering through the cut-out at the top.
  • Page 14: Storing The Unit

    Storing the unit When leaving the unit unattended, If using the unit with the SafeStop ensure that it is not left on a slope or in deadman braking system, ensure that the middle of walkways. nothing could fall out, or is pushing the handle down as this will deactivate the brake.
  • Page 15: Transporting The Unit

    Transporting the unit The Turntable Truck’s design makes transporting easy. The unit features solid, puncture-proof wheels to make transporting the unit easy over rough terrain. When transporting the TT1-PRO, the handle must NEVER be pushed down, as this will deactivate the brake. Always ensure that during transport, We suggest for the handle to be the product is secured to the carrier...
  • Page 16: Equipment Care

    Equipment care The Turntable Truck is weather resistant and constructed with a durable powder coated fin- ish, so it is suitable for outdoor use, however it does not mean it is waterproof. It is important to note that any materials susceptible to water damage should be sealed/covered. Always ensure that the product dataplate remains visible and in good condition, especially the unique serial number.
  • Page 17: Warranty

    Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of 12 months - please refer to the terms and conditions for what this covers. Spare parts Wheels Handle kit Side panels and fixings with fixings Brake springs...
