Summary of Contents for Coppernic Access-ER

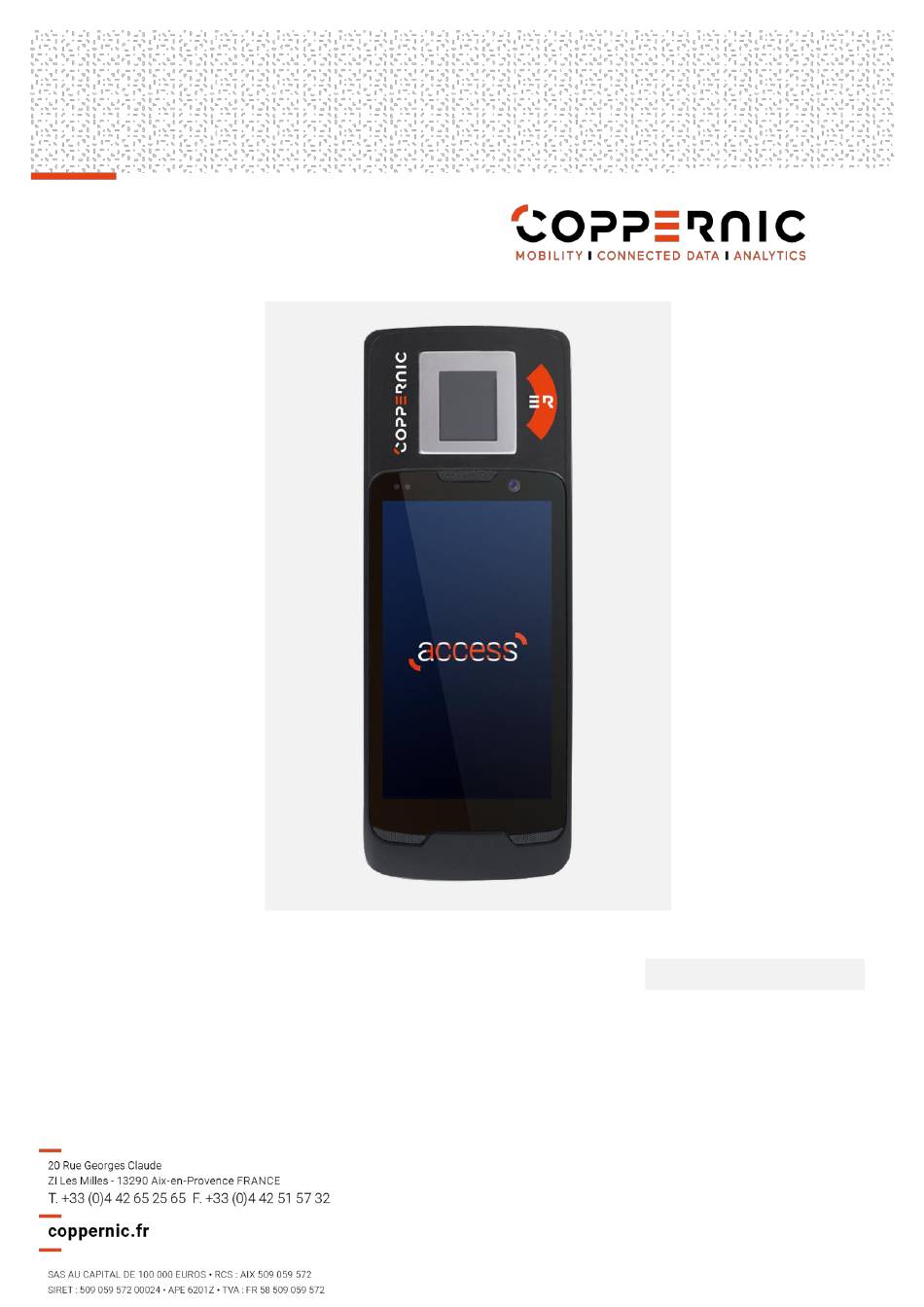

- Page 1 Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 | Non-Contractual Pictures |...
-
Page 2: What's In The Box
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 WHAT'S IN THE BOX ? Access-ER – HF NFC / FAP30 / SC DEVICE HANDSTRAP EU PLUG CABLE MICRO USB C | NOTICE BATTERY USB A POWER SUPPLY TEST REPORT... -
Page 3: Product Overview
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 PRODUCT OVERVIEW Access-ER – HF NFC / FAP30 / SC Finger print Smart card receiv reader indicators P1 function camera P3 function key KEY LEFT UP P2 function key... -
Page 4: Setting Up Your Device
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Setting up your device NANO SIM | MICRO SD cards installation • Press the left and right latches at the same time and remove the battery. • Insert the Micro SD card into SD slot •... - Page 5 Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Setting up your device Battery installation • Insert the battery, lower part first. • Press the upper side of the battery until you hear a "click". NOTE Make sure that the latches are properly positioned to the left and right so that the battery door closes properly.
- Page 6 Before using the Access-ER, please charge the battery using one of the following accessories approved by COPPERNIC. Insert the micro USB-C cable into the Access-ER and the USB A cable into the power supply. > The Micro USB C | USB A cable is included in the device’s box.
-
Page 7: Back View
+37°C) the device or cradle may for small periods of time alternately enable and disable battery charging to keep the battery at acceptable temperatures. The Access-ER and its cradle indicates when charging is disabled due to abnormal temperatures via its LED. -
Page 8: Using Your Device
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Using your device TURNING ON | TURNING OFF your device Power On | Press and hold for 3 seconds the ON | OFF button. Power Off | Press and hold for 2 seconds the ON | OFF button and select “Power off”... -
Page 9: Fingerprint Sensor
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Using your device DATA CAPTURE | photos & videos Use cameras to take photos and record videos. Go to the Home screen > select "Camera" > press the camera icon to take a picture/ switch to the video icon and press for video recording. -
Page 10: Smart Card Reader
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Using your device SMART CARD READER To read the smart card : Remove the cap Insert smart card in the right direction as below Page 09 |... -
Page 11: Regulatory Information
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Regulatory information Operating frequencies Access-ER – HF NFC / FAP30 / SC EUT type Handheld Device Brand Name Coppernic Model Name Access-ER GSM 850 : 824 ~ 845 (FCC, ISED) - Page 12 Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Regulatory information CE RF Specification: Access-ER – HF NFC / FAP30 / SC Page 11 |...
- Page 13 Quick Start and Regulatory Guide 230125 A00 CAUTION Only use accessories tested and approved by COPPERNIC to ensure compliance with European standards. Operation of the device without regulatory approval is illegal. Wireless Device Country Approval Regulatory markings, subject to certification, are applied to the device signifying the radio(s) are approved for use in the European countries under CE coverage.
- Page 14 Power Adaptor Use only an Access-ER approved Power Adaptor with electrical ratings: Output 5VDC, min 2A, with a maximum ambient temperature of at least 45°C. Use of alternative power adaptor will invalidate any approvals given to this device and maybe dangerous.
-
Page 15: Battery Safety
Access-ER – Smart Card Quick Start and Regulatory Guide 230125 A00 Battery Safety The area in which the units are charged should be clear of debris and combustible materials or chemicals. Particular care should be taken where the device is charged in a non-commercial environment. - Page 16 Access-ER – Smart Card Quick Start and Regulatory Guide QSG 230125 A00 FCC Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ( 1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 17 Access-ER – Smart Card Quick Start and Regulatory Guide QSG 230125 A00 IC Caution: English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device.
