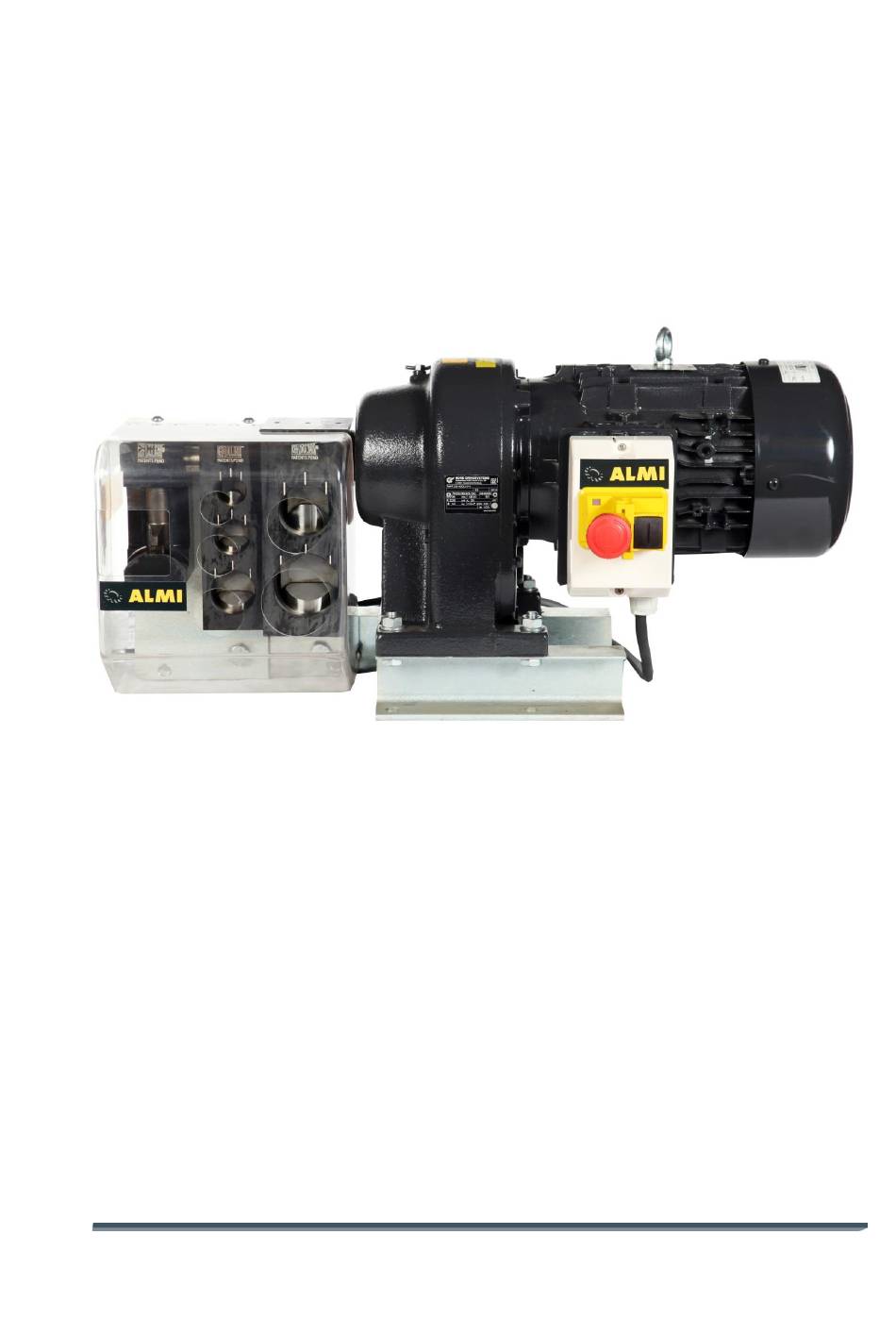

- Page 1 User manual Pipe notcher Type: AL 1-2U ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 1 of 23...
-
Page 2: Table Of Contents
Operation........................18 6.4. Shut down ........................ 18 Maintenance ........................18 7.1. Precautionary measures ..................19 7.2. Checkpoints and lubrication schedule ..............19 ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 2 of 23... - Page 3 Appendix:………………………………………………...EU Declaration of Conformity for machines Appendix: ..........exploded view drawing with drawing number 03.00008 Appendix: ..........exploded view drawing with drawing number 03.00009 ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 3 of 23...
-
Page 4: Foreword
The information indicated by this symbol warns you of potential problems. Furthermore, the symbol warns you that you can seriously injure yourself or that you can seriously damage the machine. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 4 of 23... -
Page 5: Re-Ordering The User Manual
1.5. Re-ordering the user manual Extra copies of the user manual can be ordered from ALMI Machinefabriek BV of Vriezenveen. When ordering, indicate the document number and the number of copies. The document number is indicated in the footer area. -
Page 6: Introduction
Weight 92 kg Figure 2.3-1: Sample type plate For the location of the attached CE-mark and type plate, see Figure 2.3-2. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 6 of 23... -
Page 7: Function Of The Machine
3 ALMI reserves the right to have work on the machine carried out by third parties during and after the warranty period. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG... -
Page 8: Safety Regulations
Also refer to section 1.3 “Target group for each chapter”. Safety shield Figure 3.1-1: Safety provisions ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 8 of 23... -
Page 9: Warning Symbols On The Machine
Wear safety gloves during notching operations. Sharp burrs on the tube ends can result from notching operations. Always think of the safety of yourself and others! ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 9 of 23... -
Page 10: The Operator
The machine must be in a sufficient state of repair that no dangerous situations can occur. The troubleshooting chart is provided in chapter 7. Use only original parts. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 10 of 23... -
Page 11: Summary Of The Safety Regulations
Only sufficiently trained personnel may open protective shields to perform service. Also refer to section 1.3 “Target group for each chapter”. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 11 of 23... -
Page 12: Description
4.5. Controls and adjustments For operation, the machine has the following controls. The controls and adjustments are shown in Figure 4.5-1. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 12 of 23... -
Page 13: Operation
When the motor is running, the punches are moved up and down by the eccentrics and punch springs. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 13 of 23... -
Page 14: Notching
180° and inserted into the hole again. ATTENTION! Wear safety gloves during notching operations. Sharp burrs on the tube ends can result from notching operations. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 14 of 23... -
Page 15: Technical Data
The following loose components are included in the scope of delivery: part quantity description Pipe notcher Power supply cable without plug User manual “exploded view” drawing with drawing number AL 1-2-U ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 15 of 23... -
Page 16: Unpacking
Replace the motor switch and the no-voltage coil. Section 4.7 shows what is required. Replace the type plate of the machine. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 16 of 23... -
Page 17: Transport And Storage
The machine is ready for use when all of the procedures relating to unpacking, setup and electrical connection are complete. See sections 5.2, 5.2 and 5.2. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 17 of 23... -
Page 18: Operation
Maintenance This chapter provides information about the maintenance of the machine. This chapter is intended for the maintainer of the machine. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 18 of 23... -
Page 19: Precautionary Measures
The serial number for a housing is indicated on its left side. The part number, The part number is indicated on the exploded view drawing provided with this user manual, drawing number AL 1-2U. 7.3.1. Replacement of a punch and/or spring Before replacement of the punch or spring, the plug must be removed from the mains outlet. - Page 20 See figure 7.3-1. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 20 of 23...
-
Page 21: Housing Replacement
If the procedure described above is not followed and this results in faulty assembly, we cannot provide coverage under the warranty. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 21 of 23... -
Page 22: Trouble
The machine must be disposed of in accordance with the legal requirements of the country in which it is used. The owner is responsible for disposal of the machine. ALMI Machinefabriek B.V., Vriezenveen Doc.no.: 100287-HB-08 AL 1-2U ENG Revision and revision date: 5 9-3-2016 Page 22 of 23... -
Page 23: Ec Declaration Of Conformity
Type Number(s) AL 1-2U We, ALMI Machinefabriek BV, declare under our sole responsibility that the above mentioned product(s) conform to the essential requirements of the following European Union directives: The object of the declaration described above is in conformity with the following regulations:...
