Rubix STACK Series Owner's Manual

Hide thumbs

Advertisement

Table of Contents

OWNER'S MANUAL
A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H
Phone: 330-57RUBIX (330-577-8249) | Email: support@rubixbattery.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STACK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Rubix STACK Series

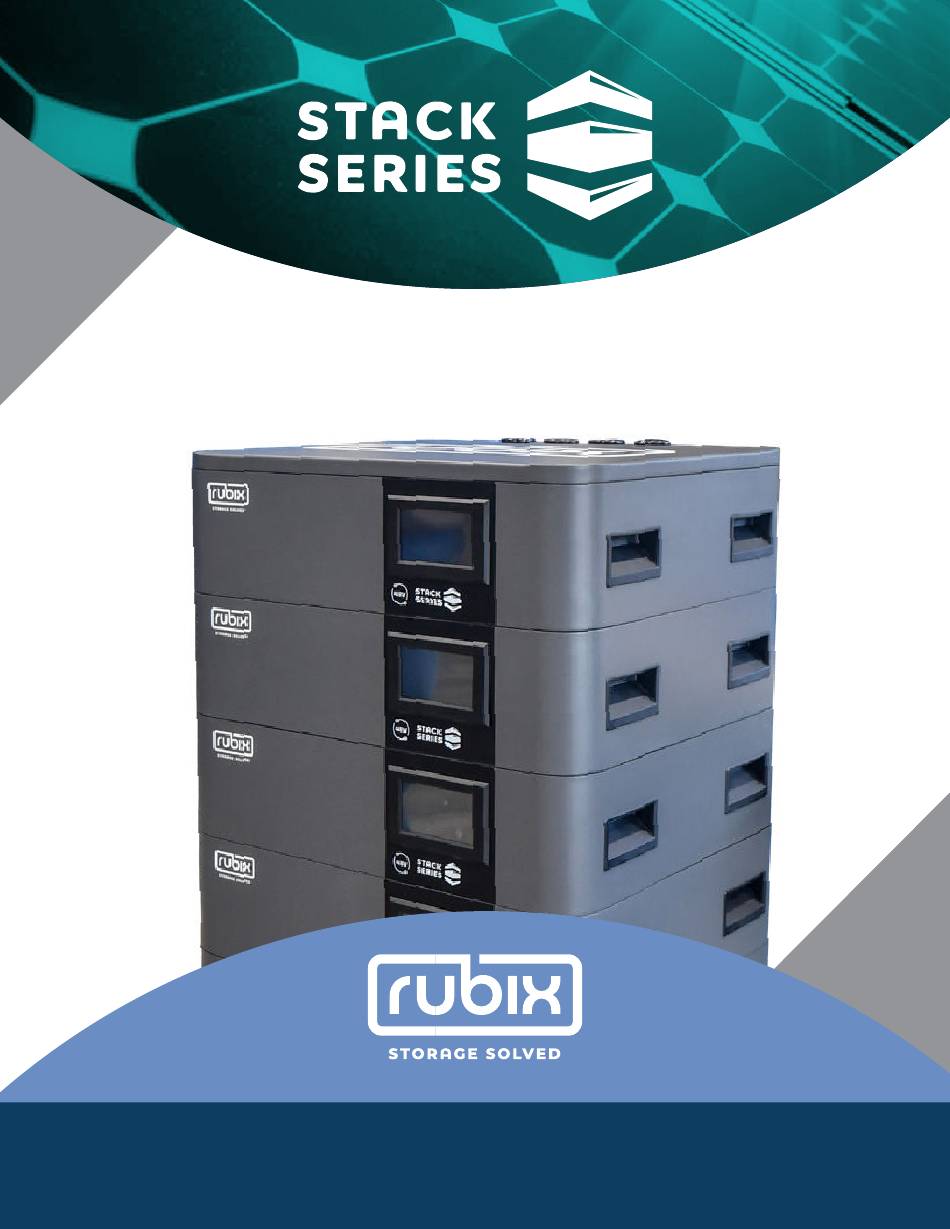

  • Page 1 OWNER’S MANUAL A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H Phone: 330-57RUBIX (330-577-8249) | Email: support@rubixbattery.com...
  • Page 2 TABLE OF CONTENTS...

  • Page 3: What's Included

    WHAT’S INCLUDED TOOLS NEEDED The following tools are required for installing your battery bank: CAUTION • • • • 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 4 UNPACKING YOUR BATTERY Batteries may be packed with Styrofoam and/or cardboard. Before heading to a job site, confirm CAUTION how many batteries are in the crate as quantities and crate sizes are subject to change without notice. R U B I X A P R O D U C T O F A R K B A T T E R Y &...

  • Page 5: Safety And Environment

    SAFETY & ENVIRONMENT CAUTION 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 6 WIRING COMPARTMENT GUIDE R U B I X A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H...

  • Page 7: Battery Identification

    BATTERY IDENTIFICATION 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 8 LCD GUIDE R U B I X A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H...
  • Page 9 LCD GUIDE 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 10 LCD GUIDE R U B I X A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H...
  • Page 11 LCD GUIDE 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 12 LCD GUIDE R U B I X A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H...
  • Page 13 LCD GUIDE 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 14 LCD GUIDE R U B I X A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H...
  • Page 15 LCD GUIDE 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 16 INSTALLATION: SECTION A Rubix Stack batteries are designed to stack on top of each other. Follow this sequence to stack your batteries. R U B I X A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H...
  • Page 17 INSTALLATION: SECTION B All Rubix batteries should be paralleled (positive to positive and negative to negative) Never connect lithium batteries in series unless the manufacturer allows it. See image 9. • • • 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 18 INSTALLATION: SECTION C NOTE Many of the networking settings in Rubix Stack Section C is recommended for open batteries are password protected. The password and closed loop applications. is 7777. Do not share it with people who are unauthorized to work on or program the battery.
  • Page 19 INSTALLATION: SECTION C 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 20 INSTALLATION: SECTION D After assigning each battery a unique address number, connect a standard Ethernet cable (included with base and lid kit) from the CAN port of the master battery (the battery with the address set at 00) to the CAN or CANBUS port on the inverter. See image 13.
  • Page 21 INSTALLATION: SECTION E Rubix Stack batteries have a unique feature called multiway closed loop comm that allows flexible charge voltages when batteries are communicating with inverters. The maximum range is 55.0V–57.6V. Many inverters only allow a single voltage value in closed loop communication. This means EQ, Absorb and Float will all show the same value.
  • Page 22 INSTALLATION: SECTION F Rubix Stack batteries can be installed in open loop applications. In many cases, this is preferred and allows the installer greater flexibility with settings. The term ‘Open Loop’ simply denotes that there is no communication between the battery bank and the inverter(s).
  • Page 23 CLOSED LOOP COMM WITH SOL-ARK When communicating with a Sol-Ark inverter, follow this sequence: (See image 15) See image 16 • • • • • • • • 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 24 CLOSED LOOP COMM WITH SOL-ARK o the system. o the system. (This also o the system. (This also -acid (This also -acid n off-grid r 10 seconds before the inverter shuts down to prevent n off-grid -acid r 10 seconds before the inverter shuts down to prevent n off-grid th the batt temp sensor to adjust optimal voltages for lead- r 10 seconds before the inverter shuts down to prevent...

  • Page 25: Rapid Shutdown

    RAPID SHUTDOWN Rubix Stack batteries are equipped with a Rapid Shutdown feature. See image 17. To use Rapid Shutdown: 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...

  • Page 26: General Specifications

    GENERAL SPECIFICATIONS RS51100(48V100AH) RS25200(24V200AH) MODEL ENERGY RATING 51.2V 100AH (5.12KWH) 25.6V 200AH (5.12KWH) 32 × PARALLEL 32 × PARALLEL ENERGY SCALABILITY (163.84KWH) (163.84KWH) CHARGING/DISCHARGING MAX CONTINUOUS DISCHARGE POWER 90A (4.6KW) 180A (4.6KW) RECOMMENDED DISCHARGE POWER 75A (3.84KW) 150A (3.84KW) PEAK DISCHARGE POWER (3SEC) 200A (10.2KW) 400A (20.4KW) MAX CONTINUOUS CHARGING POWER...
  • Page 27 GENERAL SPECIFICATIONS RS51100(48V100AH) RS25200(24V200AH) IP RATING IP50 IP50 OUTDOOR RATED INSTALLATION POSITION HORIZONTAL WITH BASE UNIT ONLY MAXIMUM BATTERIES PER STACK TERMINAL SPECS M8 STAINLESS STEEL BOLT-ON BOLT-ON MAX TERMINAL TORQUE 20FT-LBS 20FT-LBS CYCLE LIFE RATING RATED LIFE CYCLE (100% DOD) 3,000 CYCLES 3,000 CYCLES RATED LIFE CYCLE (80% DOD)
  • Page 28 GENERAL SPECIFICATIONS RS51100(48V100AH) RS25200(24V200AH) INTERNAL COMPONENTS CELL CHEMISTRY LIFEP04 LIFEP04 CELL FORMAT PRISMATIC PRISMATIC BALANCING TYPE IMPACTIVE IMPACTIVE MAX BALANCING CURRENT 1.1A 1.1A CELL CONNECTION WELDED BUSBAR WELDED BUSBAR TOUCHSCREEN LCD FEATURES   STATE-OF-CHARGE   PACK VOLTAGE  ...
  • Page 29 GENERAL SPECIFICATIONS 48V100Ah/24V200Ah 48V100Ah/24V200Ah 48V100Ah/24V200Ah (Internal View) (Lid Sizes) (Base Sizes) 30.7 KWh 20.4 KWh 15.3 KWh 10.2 KWh 24V Battery 48V Battery Individual Battery Modules 330-57RUBIX (330-577-8249) rubixbattery.com support@rubixbattery.com...
  • Page 30 Rubix: Built by installers, for installers. A P R O D U C T O F A R K B A T T E R Y & M I L L E R T E C H...

This manual is also suitable for:

Rs51100(48v100ah)Rs25200(24v200ah)Stack rs51100Stack rs25200
