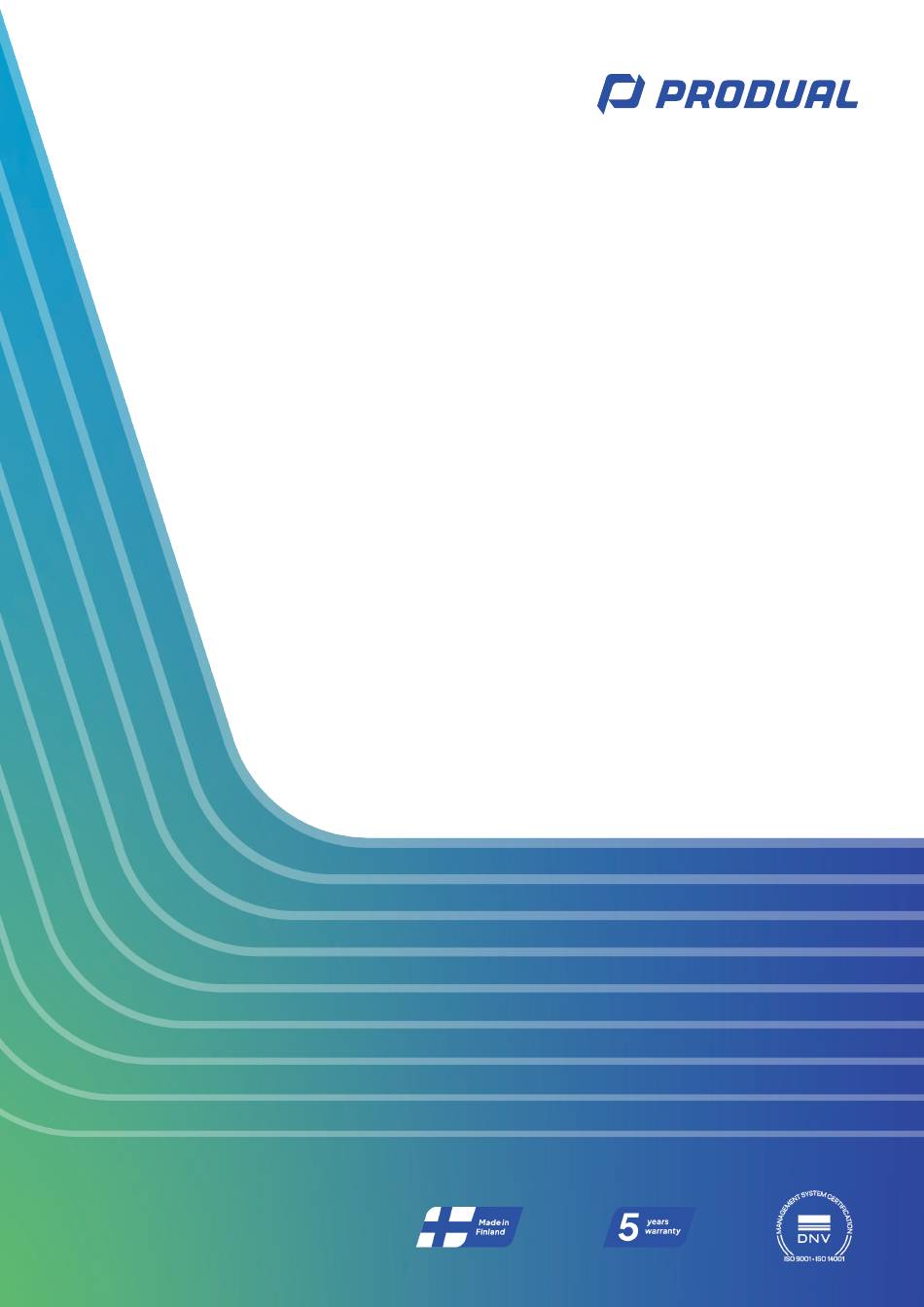

- Page 1 KLK duct humidity transmitter USER GUIDE...
-
Page 2: Table Of Contents
7.3.2 Discrete inputs....................... 22 7.3.3 Input registers........................ 22 7.3.4 Holding registers......................22 8 Disposal................24 Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 3: Introduction
These transmitters are intended to be connected to building automation systems in the HVAC/R industry. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 4: Safety Precautions
These notes also provide information that is useful but not critical to the user. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. -
Page 5: Main Components
Modbus connector (-M models) Terminal block Display connector Relay output (-R models) Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 6: Functional Description
If you configure the settings via bus (-M models), use the following holding registers: Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. -
Page 7: Control Functions
Proportional band, temperature 10...320 1.0...32.0 °C 40010 Integration time 50…5000 50…5000 s Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 8: Maximum Selection Control
Temperature = 3 V Control output = 4 V Humidity = 4 V Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 9: Commissioning
3. Insert the termination jumper in position on the circuit board. A. Termination jumper 4. Close the cover. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 10: Mounting The Product
The maximum screw diameter is 4 mm. The probe diameter is 10.1 mm. 5. Mount the duct flange on the duct with screws. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 11: Wiring
Important: For CE and UKCA compliance, a properly grounded shielding cable is required. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 12: Selecting The Display Mode (-N Models Only)
Be very careful when you open the cover. The display board is connected to the circuit board with a cable. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 13: Ml-Ser Transmitter Commissioning Tool
2. For -N models, remove the display cable from the display connector on the circuit board. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. -
Page 14: The Ml-Ser Commissioning Tool Menu
2-10V/-mA 0-5V/-mA] 0-5V/-mA] The menu structure continues on the next page. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... - Page 15 [no / yes] Info menu Software Device serial number version [YYYXXXXXXX] Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug...
-
Page 16: The Communications Menu (Modbus)
Sets the low limit value for the humidity measurement range. You can adjust this value by 1 % steps. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 17: The Controller Menu
The controller can control devices based on temperature, humidity or both. The controller uses both measurements in the maximum selection control mode. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 18: The Relay Menu
This menu is available in -R models. In this menu, you can adjust the relay setpoint and hysteresis to change the relay switching point. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 19: The Info Menu
The ML-SER commissioning tool resets the device settings to factory settings. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 20: Maintenance
Mechanical stress damages the sensor element and changes the measurement accuracy of the sensors. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 21: Modbus
2. You try to write the value 600 to the register. 3. The value 500 is written to the register. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... -
Page 22: Coils
0 - 1 - 2 - 3 0. O 1. Humidity 2. Temperature 3. Maximum selection Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug... - Page 23 1. 2…10 V / - mA 2. 0…5 V / - mA Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug...
-
Page 24: Disposal
Produal distributor for further information on environmental aspects and recycling instructions for professional recyclers. Produal Oy | Keltakalliontie 18, FI 48770 Kotka, Finland | tel. +358 10 219 9100 | info@produal.com | Information is subject to change without prior notice. EN - 1132240ug...
