Factory Buys Direct AVENGER FBDPI9 Owner's Installation And Operation Manual

Portable radiant heater 4,000 to 9,000 btu

Hide thumbs

Table Of Contents

Quick Links

Download this manual

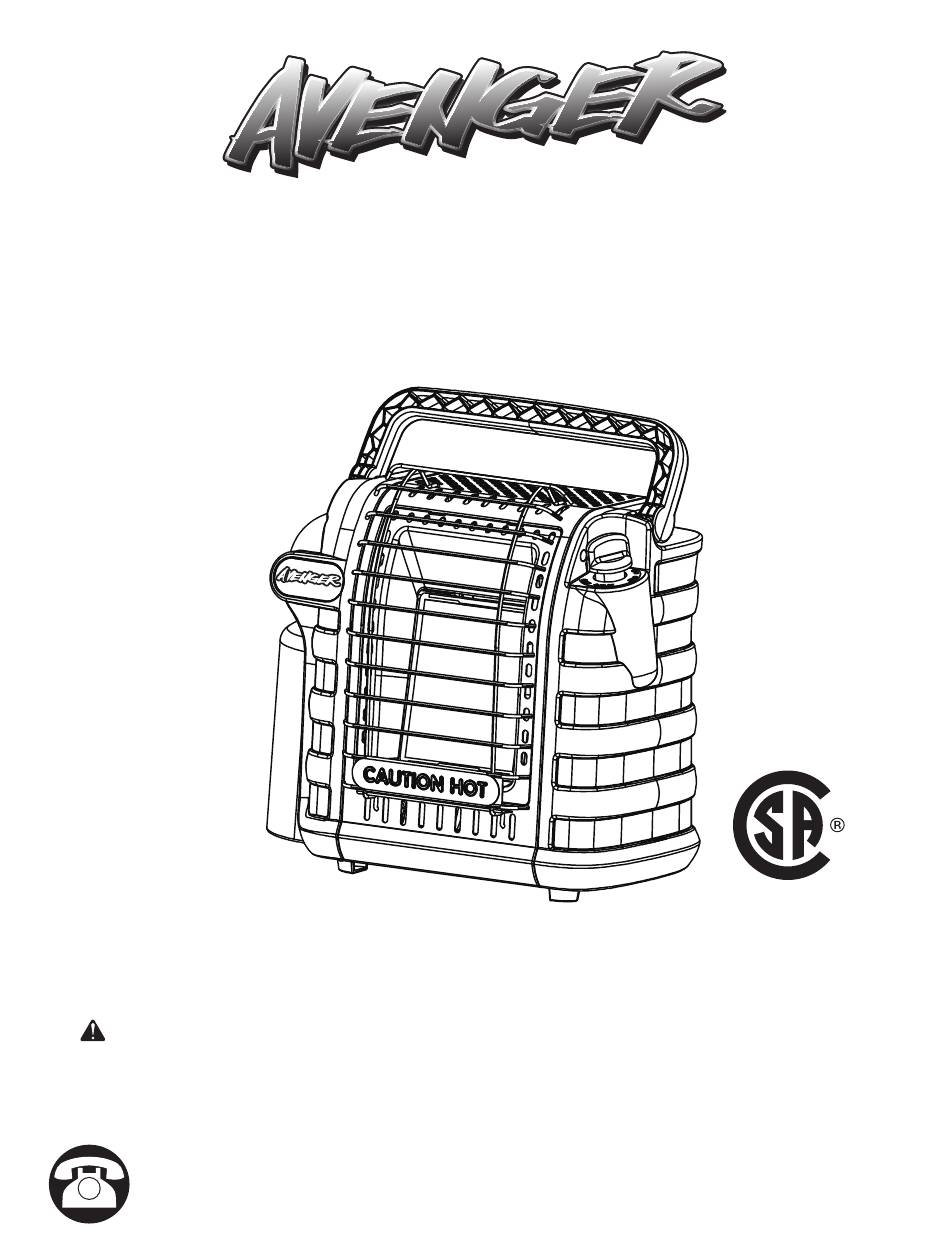

OWNER'S INSTALLATION AND

OPERATION MANUAL

MODEL: FBDPI9

SKU: 170563

PORTABLE RADIANT HEATER

4,000 to 9,000 BTU

WARNING: Improper installation,adjustment,alteration, service or maintenance can casuse injury or

property damage, Refer to this manual.

For assistance or additional information,consult a qualified installer.service agency or the gas supplier, or

call or email our customer service department (see below).

Questions, problems, missing parts? Before returning to your retailer, call

our customer service department at 1-855-607-6557, 8:00 am - 4:30 pm CST,

Monday through Friday or email contact@factorybuysdirect.com

www.factorybuysdirect.com

200600-01A

Table of Contents

Need help?

Do you have a question about the AVENGER FBDPI9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Factory Buys Direct AVENGER FBDPI9

Page 1 OWNER’S INSTALLATION AND OPERATION MANUAL MODEL: FBDPI9 SKU: 170563 PORTABLE RADIANT HEATER 4,000 to 9,000 BTU WARNING: Improper installation,adjustment,alteration, service or maintenance can casuse injury or property damage, Refer to this manual. For assistance or additional information,consult a qualified installer.service agency or the gas supplier, or call or email our customer service department (see below).
Page 2: Table Of Contents
CONTENTS 1. Safety ...................2 2. Specifications................4 3. Air for Combustion and ventillation..........4 4. General Information ..............5 5. Accessories...................5 6. Operation..................6 7. Lighting/Shutdown..............6-8 8. Maintenance................9-10 9. Replacement Parts..............10 10.Troubleshooting .................11 11. Warranty ...................12 SAFETY INFORMATION WARNING FIRE OR EXPLOSION HAZARD If you smell gas: 1.
Page 3 SAFETY INFORMATION WARNING: Early signs of carbon monoxide poisoning resemble the flu, with headache, dizziness and/ or nausea. If you have these signs, heater may not be working properly. Get fresh air at once! Have heater serviced. Some people—pregnant women, persons with heart or lung disease, anemia, those under the influence of alcohol, those at high altitudes—are more affected by carbon monoxide than others.
Page 4: Specifications
SAFETY INFORMATION • REGULATOR IN HEATER MUST ALWAYS BE INPLACE DURING OPERATION • The propane gas cylinder(s) must be constructed and marked in accordance with the specifications for propane gas cylinders of the U.S. Department of Transportation (DOT). • This heater can be used in a recreational enclosure only if the enclosure has a window or roof vent It may also be used outdoors.
Page 5: General Information
GENERAL INFORMATION • Lack of proper ventilation air will lead to improper combustion. • Improper combustion can lead to carbon monoxide poisoning leading to serious injury or death. Symptoms of carbon monoxide poisoning can include headaches, dizziness and difficulty in breath- ing.
Page 6: Operation
OPERATION LIGHTING / OPERATING INSTRUCTIONS - FOR USE WITH DISPOSABLE 1LB. PROPANE CYL- INDERS: ALWAYS ATTACH OR DETACH CYLINDER OUTDOORS AWAY FROM FLAMES, OTHER IGNITION SOURCES, AND ONLY WHEN HEATER IS COOL TO TOUCH. NEVER SMOKE WHEN ATTACHING OR REMOVING PROPANE CYLINDER OR MAKING REMOTE CONNEC- TIONS! •...
Page 7 OPERATION Shutdown Instructions 1. To shut off heater, slightly push down and turn Control Knob clockwise to “OFF” position. Do not operate, store or remove cylinder near flammable items or ignition sources. PROPANE GAS CYLINDERS MUST BE DISCONNECTED FROM HEATER WHEN NOT IN USE! LIGHTING / OPERATING INSTRUCTIONS - FOR USE WITH HOSE CONNECTED TO A REMOTE CYLINDER, MAXIMUM SIZE 20LBS: This Heater may be used in a recreational enclosure with a remote refillable propane cylinder ONLY...
Page 8 OPERATION When the unit is lit, there should be about a quarter inch(1/4’’) border around the tile that will not turn bright orange. This is normal. When operating the heater for the first time, the top area of the reflector may discolor.
Page 9: Maintenance
MAINTENANCE • Always keep the heater area clear and free from combustible materials, gasoline and other flamma- ble vapors and liquids. • Keep the vent areas (slots in the bottom and top of the heater) clear at all times. IMPORTANT: The heater and its surroundings should be kept clean and free of dust. •...
Page 10: Replacement Parts
MAINTENANCE Cleaning Instructions IMPORTANT: Allow heater to thoroughly cool before performing any maintenance. 1. Remove disposable 1 lb. cylinder from heater or turn OFF gas supply at remote cylinder valve, and disconnect hose from heater. 2. Remove (4) four screws that secure the rear cover to the heater. 3.
Page 11: Troubleshooting
TROUBLESHOOTING For additional assistance or information, please contact Customer Service at 1-855-607-6557, 8:00 am - 4:30 pm EST, Monday through Friday or email contact@factorybuysdirect.com SYMPTOM CAUSE REMEDY 1. Spark electrode is broken. 1. Replace ODS (Oxygen De- 2. Igniter wire may not be at- pletion Sensor).
Page 12: Warranty
Factory Buys Direct makes no other warranties regarding this product. Factory Buys Direct’s liability is limited to the purchase price of the product and Factory Buys Direct shall not be liable for any other damages whatsoever under any circumstances including direct, indirect, incidental, or consequential damages.
