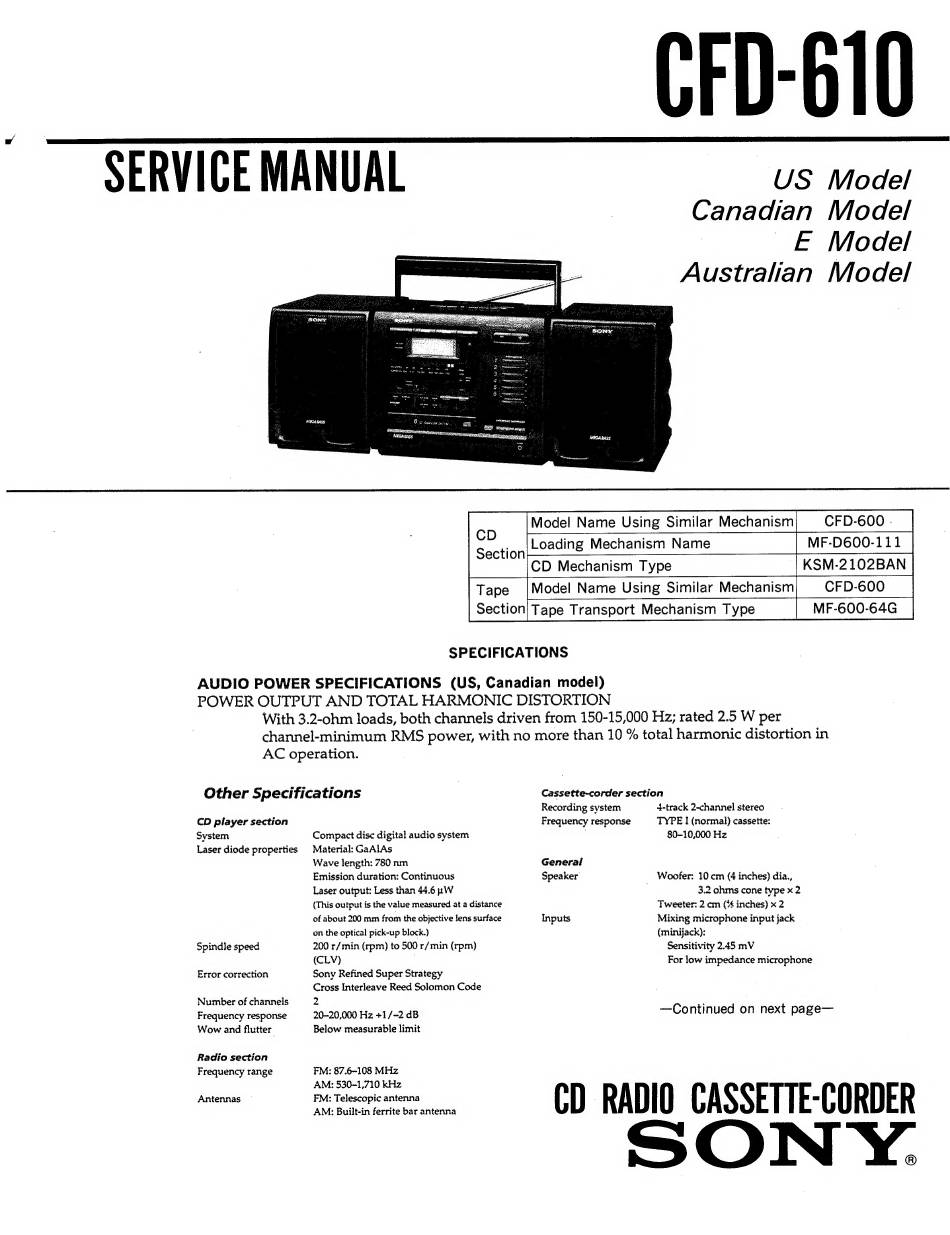

SERVICE MANUAL
Model Name Using Similar Mechanism
Loading Mechanism
Name
CD Mechanism Type
Tape
CFD-610
US Model
Canadian
Model
|
E
Model
Australian Model
CFD-600 .
MF-D600-111
KSM-2102BAN
Model Name Using Similar Mechanism
CFD-600
Section) Tape Transport Mechanism Type
MF-600-64G
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
(US, Canadian model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 3.2-ohm loads, both channels driven from 150-15,000 Hz; rated 2.5 W per
channel-minimum RMS power, with no more than 10 % total harmonic distortion in
AC operation.
Other Specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 nW
(This output is the value measured at a distance
of about 200 mm from the objective lens surface
on the optical pick-up block.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm)
(CLV)
Error correction
Sony Refined Super Strategy
Cross Interleave Reed Solomon Code
Number of channels
2
20~20,000 Hz +1/-2 dB
Below measurable limit
Frequency response
Wow and flutter
Radio section
Frequency range
FM: 87.6-108 MHz
AM: 530~1,710 kHz
Antennas
—
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Cassette-corder section
Recording system
4-track 2-channel stereo
Frequency response
TYPE | (normal) cassette:
,
80-10,000 Hz
General
Speaker
Woofer: 10 em (4 inches) dia.,
3.2 ohms cone type x 2
Tweeter: 2 cm (3 inches) x 2
Inputs
Mixing microphone input jack
(minijack):
Sensitivity 2.45 mV
For low impedance microphone
—Continued on next page—
CD RADIO CASSETTE-CORDER
SONY.
