Summary of Contents for Zemic Calog-LC II

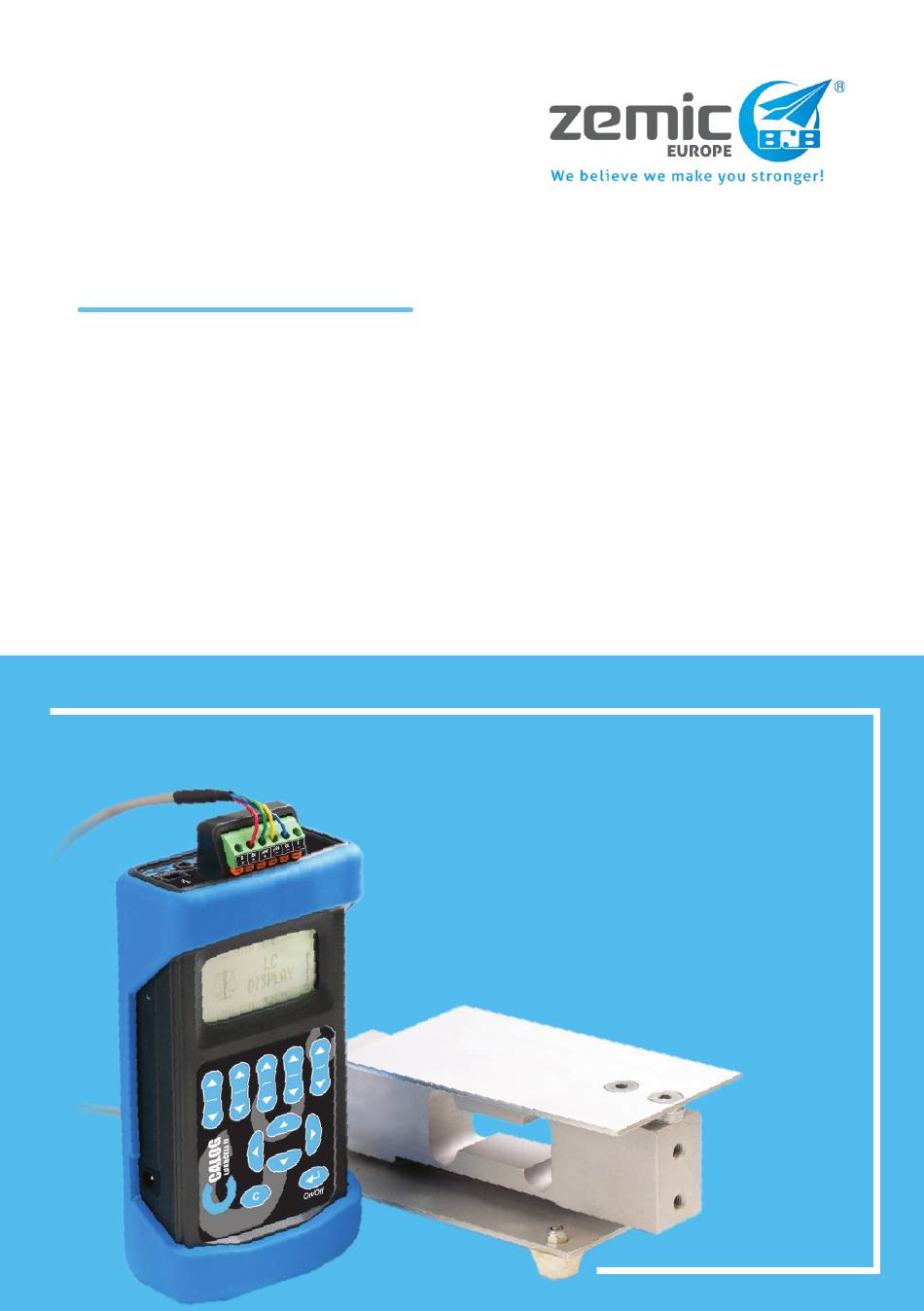

- Page 1 Operating Manual Calog-LC II Load Cell Calibrator Load Cell Display | Test Load Cell | Test Insulation www.zemic.nl...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1.0 Introduction 2.0 Getting Started 2.1 Keypad 2.2 Display 2.3 Safety 2.4 Charging the Battery 3.0 Flow Diagram 4.0 Wiring Schematics 4.1 Test Loadcell and LC Display 4.2 50V Insulation Test 4.3 Weighing System Measurenent 4.4 Weighing System Pre-calibration 4.5 Source Milliamps 5.0 Test Loadcell... - Page 3 Operating Manual - Load Cell Calibrator Table of Contents 13.0 Settings 14.0 Help 15.0 Convert 16.0 Maintenance 16.1 Opening your Calibrator 16.2 Charging the Batteries 16.3 Resetting the Unit 16.4 Changing the Fuse 16.5 Battery Care 16.6 Cleaning 17.0 Technical Specifications 17.1 General 17.2 Measuring 17.3 Sourcing...
-
Page 4: Introduction
The display can be in mA or set to display mass and output mA. Note : The CALOG-LC II is not suitable for AC or square wave pulse amplifiers. Excitation volts and millivolts are measured and sourced in DC only. -
Page 5: Getting Started
Operating Manual - Load Cell Calibrator Getting Started 2.0 Getting Started 2.1 Keypad Information sheet Pantone: Embossing: Finished look These keys change the desired output and are used to Black set values in the menu. 60% Black Used to change sub menu options. Pantone 298 Used to step up or down in the main and submenus. -
Page 6: Safety
Getting Started 2.3 Safety Your calibrator is not suitable for use in explosive atmospheres. Sparks at the terminals could cause ignition. Test leads with 4mm safety terminals are supplied with the unit Electric shock injury may result from improper use while connected to the mains power supply. -
Page 7: Flow Diagram
Operating Manual - Load Cell Calibrator Flow Diagram 3.0 Flow Diagram Main menu Test Test Measure Source Source Settings Help Convert Loadcell Instulation Display Wiring mVdc mVdc Custom Zero Balance EXC measure EXC measure Input Ω on/off on/off Output Ω Wiring Balance - mA measure... -
Page 8: Wiring Schematics
Wiring Schematics 4.0 Wiring Schematics This section shows examples of wiring configurations. These are also found in the Help Menu. 4.1 Test Loadcell and LC Display From one load cell. For a 4-wire se terminals 2 to 5(no links) . For a 6-wire use terminals 1 to 6. -
Page 9: Weighing System Pre-Calibration
Operating Manual - Load Cell Calibrator Wiring Schematics Example: Weighing System Measurement Used for measuring load cell output millivolts from existing operating systems. Connect mV measure from the calibrator to load cell output and display mV. For mass display also measure excitation voltage (on sense terminals) or set a value for excitation with mV/V and units in the mA&mass submenu. -
Page 10: Source Milliamps
Wiring Schematics 4.5 Source Milliamps 0 to 24.000mA • Used to send milliamp signal to control room or to test or calibrate mA input devices. • In source mA mode the milliamp output changes from measure mA to source mA with 24V DC driving voltage. -
Page 11: Insulation Test
Operating Manual - Load Cell Calibrator 50V Insulation Test 6.0 50V Insulation Test Select TEST INSULATION in the main menu. Press enter to continue. Disconnect sense wires (if used) and connect leads to housing and shield. Press enter to continue, wait 15 seconds. PRESS ENTER TO RETURN TO THE MAIN MENU Note : The AC charger supplied with the calibrator is only sufficient to charge the LI-Ion batteries. -
Page 12: Measure Mv &Mass (And Measure Excitation Voltage) (And Measure Milliamps)
Weighing System Measurement Excitation (left or right keys to change) On measures the excitation voltage (Measure at sense terminals) mA Measure (left or right keys to change) Measure mV only Measure mV Measure excitation V Measure mA 7.2 Measure mV &Mass (and Measure Excitation Voltage) (and Measure Milliamps) Used to display mV and mass from LC system for calibration. - Page 13 Operating Manual - Load Cell Calibrator Weighing System Measurement mV/V. Set load cell mV/V from data or nameplate. Unit (left or right keys to change). kg, grams, tonne, oz, lb, or ton. Zero Value. Set low scale value. Span Value. Set high scale value.
-
Page 14: Weighing Systems Pre-Calibration
Weighing System Pre-calibration 8.0 Weighing Systems Pre-calibration Select SOURCE mV in the main menu then press the enter key. 8.1 Sourcing mV (and Measure Excitation Voltage) (and Measure Milliamps) Source (left or right keys to change) mV Sources and displays mV only mV &... -
Page 15: Sourcing Mv & Mass Or Mass & Mv
Operating Manual - Load Cell Calibrator Weighing System Pre-calibration 8.2 8.2 Sourcing mV & Mass or Mass & mV (and Measure Excitation Voltage) (and Measure Milliamps) Source (left or right keys to change) mV. Sources and displays mV only. (See 8.1) mV &... -
Page 16: Source Milliamps
Weighing System Pre-calibration Unit (left or right keys to change) Select kg or lb, etc. mA measure (left or right keys to change) On to measure xx.xxx mA (from load cell amplifier output, measure in series). Display for mV & mass Set mV value and mass is also displayed. -
Page 17: Source Ma & Mass
Operating Manual - Load Cell Calibrator Source Milliamps Function (left or right keys to change) Linear Flow Valve. Mode (left or right keys to change) Increment Step Auto Step Ramp Main Unit (left or right keys to change) Loop Power (left or right keys to change) On (24V loop is active) Off (Simulates mA). - Page 18 Source Milliamps mA range (left or right keys to change) 0-20mA 4-20mA. Dec Point (left or right keys to change) Select required position for decimal point. O(4) mA value: Set to low scale value for 0 (or 4) mA. 20 mA value: Set to full scale mass value for 20mA.
-
Page 19: Source Mass & Ma
Operating Manual - Load Cell Calibrator Source Milliamps 9.3 Source Mass & mA Display (left or right keys to change) mA. (See 9.1) mA & Mass (See 9.2) Mass & mA (to display mass and set mA value) mA range (left or right keys to change) 0-20mA 4-20mA. -
Page 20: Loadcell Display
Source Milliamps Unit (left or right keys to change) Select unit of mass required, eg. kg. Press enter. Display for mass & mA Set mass value and mA is also displayed. Use value set keys to change mass value then press enter to output new value (+ Steady). - Page 21 Operating Manual - Load Cell Calibrator Loadcell Display Decimal Point (left or right keys to change). Display Zero Set zero value. Display Span Set span value (Maximum expected value) (i.e if 3000kg load cell used then enter 3000.0. Unit (left or right keys to change) Select unit of mass required, eg.
-
Page 22: Datalog
Loadcell Display Zero Trim Use to tare off deadweight. Press enter to trim zero wait 10 seconds to trim. After Zero Trim is completed the unit proceeds to Span Trim. Span Trim Press enter, load test weights and key in value, press enter to trim span. -
Page 23: Datalogging Interface
Operating Manual - Load Cell Calibrator Datalogging Start time: Press enter and use up or down arrows and set value keys to change year, month, day, hour, minute and seconds. Press enter to set and return to data logging menu. Stop time: Press enter and use up or down arrows and set value keys to change year, month, day, hour, minute and seconds. -
Page 24: Settings
Datalogging Interface Use a suitable program to read the .csv files such as Excel or Open Office. Display the file as a spreadsheet or graph. In Spreadsheet format the text will appear as: Name - Tag - Description - Date and Time - Value 13.0 Settings This section will let you customise the calibrator to your personal work style. - Page 25 Operating Manual - Load Cell Calibrator Settings Contrast Press the enter key to gain access to the contrast screen. Use the left and right keys to change the display contrast. When satisfied press enter. Set Date and Time Press enter, then use the set value keys to change the year, month, day, hour, minute and seconds.
-
Page 26: Help
Settings Enter Access Code Press the enter key to gain access to the access code screen. Use the row of set value keys to change the access code, then press enter. (This code is used for the units calibration. Contact supplier. -
Page 27: Maintenance
Operating Manual - Load Cell Calibrator Maintenance 16.0 Maintenance 16.1 Opening your Calibrator There are a few cases in which you may have to open your calibrator. 1. To change the battery pack. 2. To change the fuse. In order to open it, place it face down on a flat, hard surface and unscrew the four screws as shown. -
Page 28: Battery Care
Maintenance 16.5 Battery Care Your calibrator is powered by rechargeable Lithium Ion batteries. 1. The batteries can be recharged hundreds of times but will eventually fail. 2. Only use dealer approved batteries that contain a temperature sensor. 3. Do not store your calibrator in extreme heat, above 50°C as the batteries may become unstable and rupture. -
Page 29: Measuring
Operating Manual - Load Cell Calibrator Technical Specifications 17.2 Measuring LC Display: -5 to 35.000mV, impedance <300Ω, error limit 0.01% FS, resolution 5 Digit Bridge Balance: -5 to 10.000 mV/V, impedance >1 MΩ, error limit 0.02 mV/V, resolution 0.001 mV/V Resistance: 0 to 2000Ω, error limits >0.03% FS, Resolution 0.1Ω... -
Page 30: Notes
Warranty The manufacturer does not warrant that the software will be error free or operate without any interruption. The manufacturer reserves the right to change or revise the specifications without prior notice. Refer to the manufacturer’s website for the latest specifications. - Page 31 Operating Manual - Load Cell Calibrator...
- Page 32 Supplied by Manufactured by www.zemiceurope.com | info@zemic.nl www.calog.co.za | info@calog.co.za CAL-MAN-033-MANCALOG-LC-Maunal-Calog-LCII-Zemic-Rev3-00 2024/12/11...
