Summary of Contents for Steiel RW14
Page 1
REMOTE CONTROL VIA WEB FOR STEIEL INSTRUMENTS RW14 TECHNICAL MANUAL STEIEL Elettronica S.r.l. – Viale Europa, 24 – 35020 Ponte San Nicolò – PADOVA ITALY Tel. +39 049.8961488 – www.steiel.it – info@steiel.it Certified Company, according to UNI EN ISO 9001 standards...
TABLE OF CONTENTS INTRODUCTION ............................3 TECHNICAL DATA ..........................5 INSTALLATION AND ELECTRICAL CONNECTIONS ................5 VIEW OF THE ELECTRONIC BOARD ..................... 6 LED ................................. 7 INTRODUCTION TO THE SYSTEM ......................8 HOME PAGE............................8 HANDLING OF CUSTOMERS - USERS ....................9 HANDLING OF USERS - DEVICES .......................

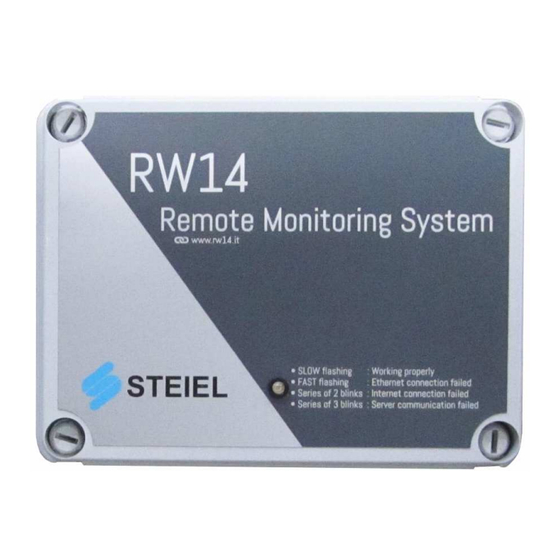

INTRODUCTION RW14 is a device that interfaces with the STEIEL measurement instruments; designed both for the needs of control and management of pool water, and for industrial applications. The configuration, setting and data visualization are performed through special web pages, allowing the user to interface remotely through a simple PC, Tablet or Smartphone equipped with network connection.
Ethernet cable: max. 100 m (Cat. 5 high quality) Serial cable: max 10 m unshielded, max 15 m with shield connected to GND at one side only (side RW14), max 25 m shielded and located far from power cable Analogic cable: max 100 m with shield connected to the negative at one side...
Mini-SD memory card 3) In the case of RW14 WiFi, the USB socket will be used for connecting the WiFi module. 4) Pay attention to the connection of the serial port! If the RX and TX connections are reversed, the communication does not work but the device does not have any problem;...
4) Three blinks and one pause = communication error with the RW14 server. The device is correctly connected to Internet, but the connection is not confirmed by the RW14 server; if the LED remains in this status, probably there are some firewall restrictions in the network;...
INTRODUCTION TO THE SYSTEM The RW14 remote control service can be accessed via web from a PC or portable device, by entering the address http://www.rw14.it in the search bar of your browser. From here you can view and configure the installed RW14 devices.
HANDLING OF CUSTOMERS - USERS Page for entering new users (creation of new accounts) After entering his username and password (provided by STEIEL), the installer will access the personal area of the web site, and, therefore, the management of his customers and devices.
HANDLING OF USERS - DEVICES In this section, the technician can assign one or more RW14 devices, previously created. This allows to choose how many and which devices will be displayed for the “Technicians”/”Viewers” who log in to the site, in order to keep well separated the various installations.
DEVICE LIST This is the main page where a logged user can interact with the devices. The screen is divided into three parts: Table of the devices: each device visible by the user is listed in the table that shows the device name and the date of the last relevant information sent to the server, and allows to understand the status of the device through the color dot in the first column.
Page 12
Page for interaction with connected devices RW14_r2 – 01/2023 page 12...
This action can be performed by any user logged in. Data Visualization - TABLE Through this page you can access the data acquired by a device, previously recorded by RW14 and sent to the server. Through the left column you can set some criteria for the data search: “Interface”: data can be displayed only if an interface is indicated...
Data Visualization - DIAGRAM As for the table, even the data shown in the diagram can be filtered by criteria available on the left side of the page. As the table shows all the data sampled by the device (30 sec.), the diagram shows only the data sampled at the frequency set in the interface configuration page.
Data Visualization - ALARMS Similarly to the other two types of data, the alarms are requested to the server by applying the filter criteria specified on the left side of the page. Alarms are displayed in a table that specifies the channel name, interface, device date and time, and a short description.
CONFIGURATION OF CHANNELS As for the interface configuration, this page is available only if a device has been selected from the list and if the user is not a simple viewer type. This page allows the user to set some parameters for the acquired channels (note: each instrument must have at least one channel) and displays a table for each interface previously selected.
This area CANNOT be accessed by a “Viewer” type user. RW14 is provided with an RS232 serial interface for the connection to the measurement instruments selected from the drop-down menu in the table.
Page 18
MachineToMachine – is recommended) in the appropriate router slot. Make sure your SIM card is not protected by a PIN code; if necessary, disable it. Connect the LAN1 port of the router to the LAN port of the RW14 using the supplied LAN cable. For details, refer to the router manual.
Page 19
The manufacturer can modify the instrument or the technical manual without advanced notice. Warranty All STEIEL products are warranted for a period of 12 months from the delivery date. Warranty is not valid if all instructions of installation, maintenance and use, are not strictly followed by the user. Local regulations and applicable standards have also to be followed.
