- Page 1 Drain Cooler Water Tempering Device Installation Instructions and User Manual READ AND SAVE THESE INSTRUCTIONS DC-eng-241127...
- Page 2 About the Manual These installation and operation instructions have been developed to facilitate the installation of the Drain Cooler. 1. The strict application of these instructions will ensure the conformity of your installation and operation as per manufacturer's recommendations.
-
Page 3: Table Of Contents
Plumbing connections ................................5 Cold Water supply................................5 Hot Water Drain Inlet ................................5 Tempered Water Drain Connection ............................. 6 Start-up Procedure ................................6 Drain Cooler Operation ................................ 6 Maintenance .................................... 7 General ....................................7 Cooling Chamber Cleaning ..............................7 Troubleshooting ..................................8 Notes ....................................... -
Page 4: Overview

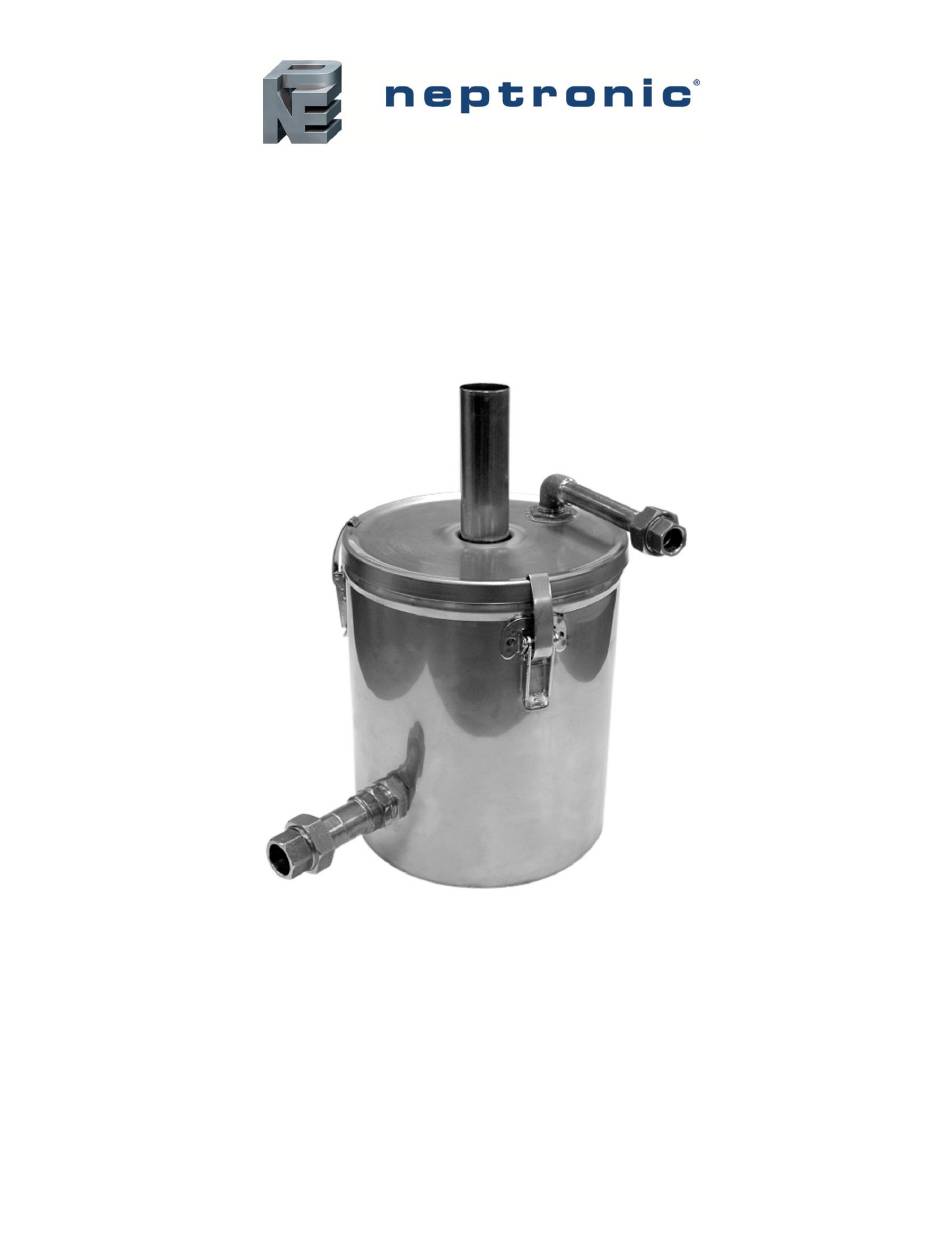

Thank you for choosing a Neptronic product. The Drain Cooler is a stainless-steel cylindrical mixing chamber that blends cold water from a humidifier or condensate of a steam dispersion system. The result is drain water cooled to a temperature below 140°F (60°C). -
Page 5: Mechanical Installation
Location: Plan a location which is easy to access in order to permit a proper inspection and servicing of the Drain Cooler. Do not install Drain Cooler where failure of the appliance could cause damage to the building structure or to costly equipment. For indoor installation, ambient temperature must be above freezing. -
Page 6: Tempered Water Drain Connection
Verify that the supply and drain water connections are connected. 2. Open the water shut off valve (external to the Drain Cooler). 3. Your Drain Cooler is now fully operational. No other action is necessary; your Drain Cooler will temper the drain water automatically. -
Page 7: Maintenance
Drain Cooler or damage it. Cleaning the thermostatic valve and cover. a) The cover of the Drain Cooler and thermostatic valve will, in general, not require cleaning. However, if cleaning is required, proceed as per the cleaning of the cooling chamber. -
Page 8: Troubleshooting
• Mineral accumulation inside the • Open the cold water supply valve. cooling chamber. • Mineral accumulation on the • Do maintenance of the Drain Cooler The temperature of the tempered water is exceeding 140°F (60°C). thermostatic valve. (see page 7). -
Page 9: Notes
Notes... - Page 12 400 Lebeau blvd, Montreal, Qc, H4N 1R6, Canada www.neptronic.com Toll free in North America: 1-800-361-2308 Tel.: (514) 333-1433 Fax: (514) 333-3163 Customer service fax: (514) 333-1091 Monday to Friday: 8:00am to 5:00pm (Eastern time)
