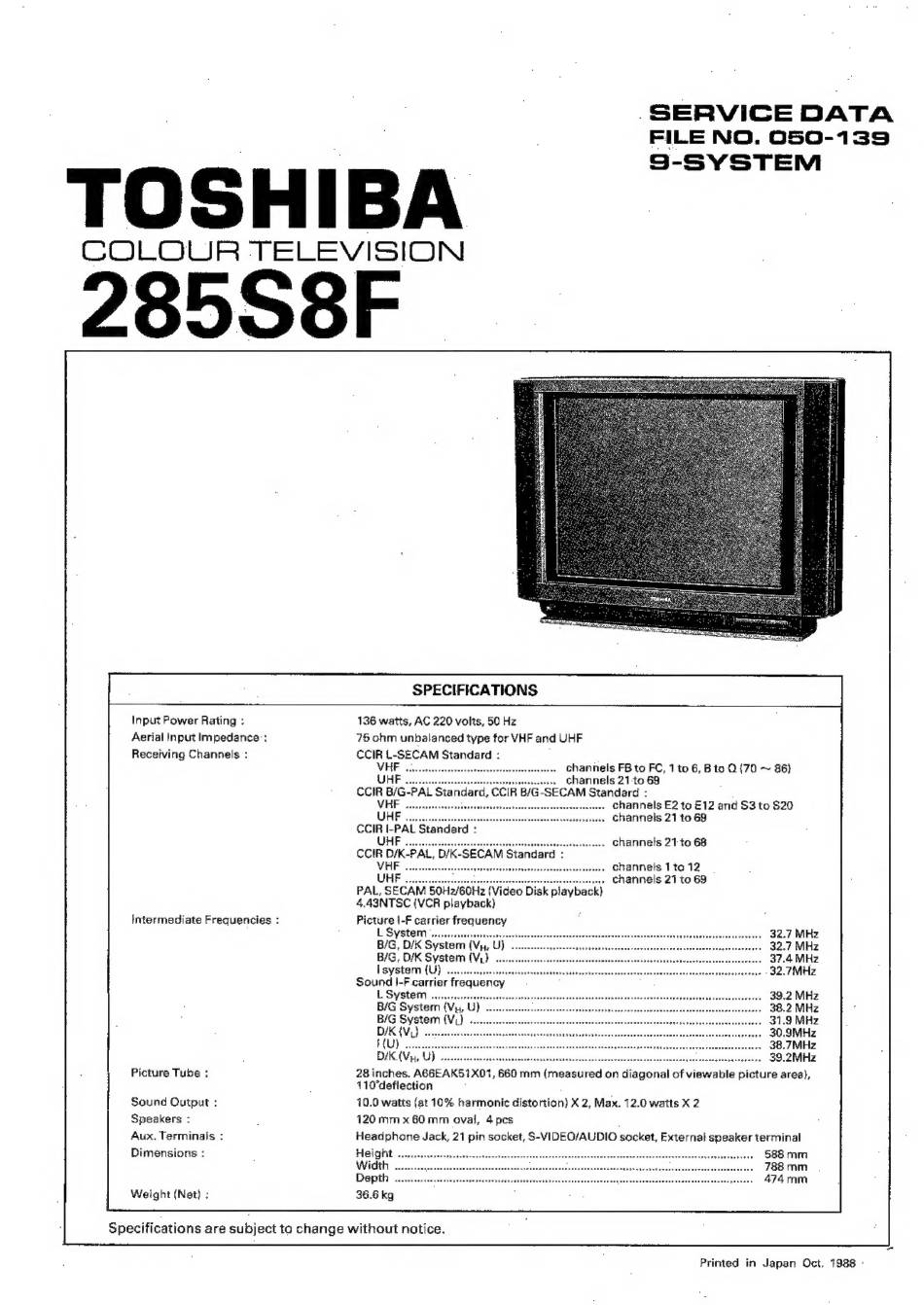

SERVICE
DATA
FILE NO. 050-139
9-SYSTEM
TOSHIBA
COLOUR
TELEVISION
285S8F
SPECIFICATIONS
Input Power Rating :
136 watts, AC 220 volts, 50 Hz
Aerial input Impedance::
75 ohm unbalanced type for VHF and UHF
Recetving Channels
:
CCIR L- SECAM Standard :
VHF
channels FB to FC, 1 to 6, B to 0 {70 ~ 86}
F
channels 21-to 69
CCIR B/G-PAL Standard, CCIR B/G-SECAM Standard :
channels £2 to E12 and $3 to $20
UHF ..
fittttieeaereenen
Channels 21 to 69
CCIR I- PAL Standard :
UHF
channels 21 to 68
CCIR D/K-PAL, D/K-SECAM
Standard :
VAP
cstsincccss
..
channels 1ta12
|
channels 27 to 69
PAL, SECAM
50H2/60Hz (Video Disk playback)
4.43NTSC (VCR playback)
intermediate Frequencies
:
Picture !-F carrier frequency
;
;
L System:
w.. 32.7 MHz
B/G, D/K System (Vy, U) .
we.
32.7 MHz
B/G, D/K System (V,}
... 37.4MHz
ESV Sterrn (UD): cccicccsasssenvestectsccvnciessssveteeibscvevarncubootisbeveteovatinss
ebutedsbesveatoniéce voce .32.7MHz
Sound J-F carrier frequency
'
;
L System
39.2 MHz
B/G System (Vy, U)}
:
wa
38.2 MHz
B/G System (V\) ...
ws.
31.9 MHz
D/K
{V1}
. . . .
rae
30.9MHz
F{U) ..
38.7MHz
DIK. Vu, U)
39.2MHz
Picture Tube
:
28 inches. AGGEAK51X01, 660 mm
(measured on diagonal of viewable picture area},
110°deflection
;
Sound Output
:
10.0 watts
(at 10% harmonic distortion} X 2, Max. 12.0 watts X 2
Speakers
:
.
120 mm x 60 mm
ovai, 4 pcs
Aux. Terminals
:
Headphone Jack, 21 pin socket, S-VIDEG/AUDIO socket, External
speaker terminal
Dimensions :
;
i
588 mm
i
w e .
788mm
Weight (Net) :
Specifications are subject to change without natice.
Printed
in Japan
Oct. 1988
-
