ORDER NO. MD0203058C1
A1
AV Control Receiver
SA-HT400P / SA-HT400PC
Color
(K) ... Black Type
(S) ... Silver Type
SPECIFICATIONS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-HT400P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic SA-HT400P

Summary of Contents for Panasonic SA-HT400P

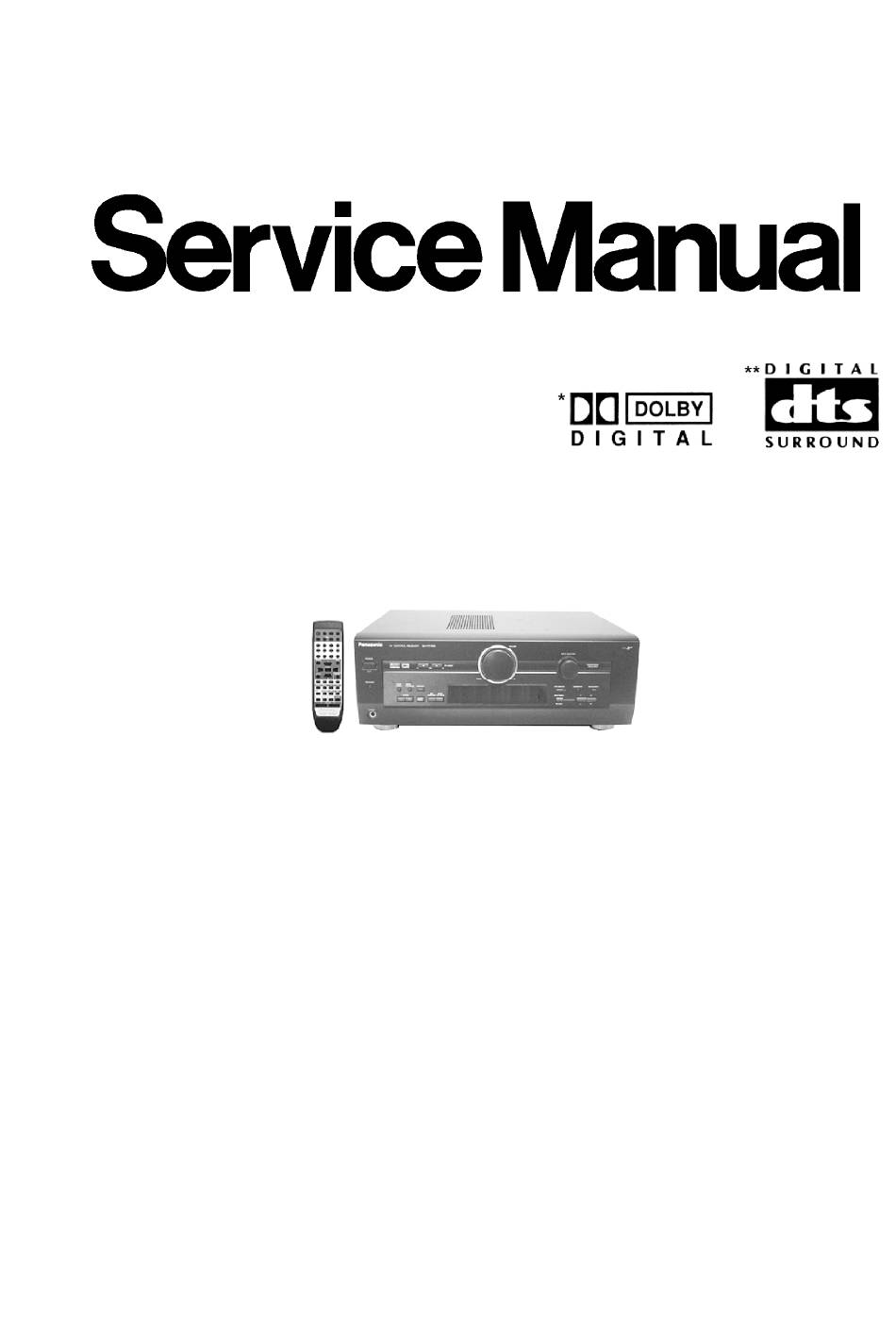

  • Page 1 ORDER NO. MD0203058C1 AV Control Receiver SA-HT400P / SA-HT400PC Color (K) ... Black Type (S) ... Silver Type SPECIFICATIONS...
  • Page 2 FM Tuner Section Frequency range 87.9-107.9 MHz Sensitivity 11.2 dBf (2 V, IHF’58) 50 dB quieting sensitivity MONO 18.3 dBf (4.5 V, IHF’58) STEREO 38.3 dBf (45 V, IHF’58) Total harmonic distortion MONO 0.2% STEREO 0.3% MONO 73 dB STEREO 67 dB Frequency response 20 Hz -15 kHz, +1 dB, -2 dB...
  • Page 3 Front Center Surround Subwoofer Dynamic headroom 2 dB (6 Frequency response CD, TAPE, DVD, TV, VCR 10 Hz-70 kHz, ±3 dB Input sensitivity CD, TAPE, DVD, TV, VCR 27 mV (200 mV, IHF’66) S/N (IHF A) CD, TAPE, DVD, TV, VCR 75 dB (85 dB, IHF’66) Input impedance CD, TAPE, DVD, TV, VCR...

  • Page 4: Safety Precaution

    1. Safety Precaution (This “Safety Precaution” is applied only in U.S.A.) 1. Before servicing, unplug the power cord to prevent an electric shock. 2. When replacing parts, use only manufacturer’s recommended components for safety. 3. Check the condition of the power cord. Replace if wear or damage is evident.

  • Page 5: Before Repair And Adjustment

    2. Before Repair and Adjustment Disconnect AC power, discharge Power Supply Capacitors C703 - C706, C901, C904 and C1702 through a 10 , 5 W resistor to ground. DO NOT SHORT-CIRCUIT DIRECTLY (with a screw driver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid over current.

  • Page 6: Front Panel Controls

    - Stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used. If this occurs, follow the procedure outlines below: 1.

  • Page 8: Remote Control

    6. Remote Control...

  • Page 11: Disassembly And Main Component Replacement Procedures

    7. Disassembly and Main Component Replacement Procedures “ATTENTION SERVICER” Some chassis components maybe have sharp edges. Be careful when diassembling and servicing.
  • Page 12 1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main components. 2. For reassembly after operation checks or replacement, reverse the respective procedures. / Special reassembly procedures are described only when required. 3.
  • Page 13 Step 3 Remove all the screws. Step 4 Release the connector CN904B. Step 5 Remove the screw.
  • Page 14 Step 6 & 7 Remove all the screws. Step 8 Remove the Volume knob and Input Selector knob, unscrew the nuts and remove the Volume ring. Step 9 & 10 Remove all the screws.
  • Page 15 Step 11 Release the connectors CN702 and CN1000A. Pull up the Digital P.C.B. as shown. Step 12, 13 & 14 Remove all the screws. Reconnect all wires and connectors to test all P.C.B.. 7.2. Main Component Replacement Procedures 7.2.1. Replacement of the Power IC and Regulator Transistor...
  • Page 16 Step 1 Remove the top cabinet. Step 2 Cut the joints as shown below. (6 joints)
  • Page 17 Step 3 Fold the joints. (6 joints) Step 4 Desolder the terminals of Power IC and Regulator Transistor.
  • Page 18 Step 5 Remove all the screws. 7.2.2. Installation of the bottom cover after replacement...

  • Page 19: Self-Diagnostic Function

    Step 1 Upset the bottom cover. Step 2 Align the ribs of bottom cover into the bugs. Step 3 Prepare the screws to fix the bottom cover. 8. Self-Diagnostic Function 8.1. Self-Diagnostic Function and Service Mode 8.1.1. Display Content Item Abnormal Status Error Display Low Frequency...
  • Page 20 Mark I/O Function KEY1~KEY2 I Key Input 1~2 RDS_CLK - RDS Data IC CLOCK RDS_DO - RDS Data IC - DATA OUT RDS_DI - RDS Data IC - DATA IN RDS_CE - Control of RDS IC(Not used, open) THRM/OVLD1 I Thermal/Over load input 1 THRM/OVLD2 I Thermal/Over load input 2 I SD signal detect input...
  • Page 21 TAPE_LED O Tape Selector LED VCR_LED O VCR Selector LED TV_LED O TV Selector LED DVD_LED O DVD Selector LED CD_LED O CD Selector LED TU_LED O TUNER Selector LED PHONO_LED O PHONO Selector LED DIGITAL_LED O DIGITAL INPUT LED DVD_6CH_LED O DVD 6CH LED LIMITTER O Power limitter control...
  • Page 22 VIDEO_A O Video selector control output A 11. Block Diagram 12. Schematic Diagram (All schematic diagrams may be modified at any time with the development of new technology.) Notes: S950 Power Switch S952 Speaker Switch S953 SFC Mode Swtich S954 Timer Swtich S955 Memory Switch...

  • Page 23: Printed Circuit Board

    any of components, be sure to use only manufacturer’s specified parts shown in the parts list. Caution! IC, LSI and VLSI are sensitive to static electricity. Secondary trouble can be prevented by taking care during repair. - Cover the parts boxes made of plastics with aluminium foil. - Put a conductive mat on the work table.
  • Page 24 When replacing any of these components, be sure to use only manufacturers’s specified parts shown in the parts list. - The parenthesized indications in the Remarks column specify the areas or color. (Refer to the cover page for area or color.) Parts without these indications can be used for all areas.
  • Page 25 15.1.2. Cabinet Parts List...
  • Page 26 Ref. No. Part No. Part Name & Description Remarks CABINET AND CHASSIS RAN0001MM TUNER RGB0036-2N PANASONIC BADGE RGKV0001-1S VOLUME RING [M]K RGKV0001-S VOLUME RING [M]S RGL0533-Q DIGITAL LIGHT GUIDE RGL0534-Q MON. LIGHT GUIDE RGPV0001G-K FRONT PANEL [M]K RGPV0001G-S FRONT PANEL...
  • Page 27 Ref. No. Part No. Part Name & Description Remarks XTWS3+8T SCREW XTW3+8PFZ SCREW REE1072 FCC#2 (MAIN - DIGITAL) RMQ1030 HEAT SINK ANGLE SHR8006 PCB SPACER RMN0392 PCB SUPPORT REM0080B FAN UNIT RGQ0231-K FAN COVER XTB3+35JFZ SCREW (FAN) 15.2. Components Parts List Ref.
  • Page 28 Ref. No. Part No. Part Name & Description Remarks IC1701 BA25BC0FP IC REGULATOR TRANSISTORS Q351 2SD592AQSTA TRANSISTOR Q352 2SB621AQSTA TRANSISTOR Q551 2SD1915FTA TRANSISTOR Q552 2SD1915FTA TRANSISTOR Q553 2SD1915FTA TRANSISTOR Q554 2SD1915FTA TRANSISTOR Q555 2SD1915FTA TRANSISTOR Q556 2SD1915FTA TRANSISTOR Q557 2SD1915FTA TRANSISTOR Q560 KRA102MTA...
  • Page 29 Ref. No. Part No. Part Name & Description Remarks Q1682 2SD1915FTA TRANSISTOR Q1701 KTC2026 TRANSISTOR Q1702 2SD2374PQAU TRANSISTOR Q1703 KTC3199GRTA TRANSISTOR DIODES D301 B0AACK000004 DIODE D302 B0AACK000004 DIODE D351 B0BA01100004 DIODE D351 UDZSTE175R6B DIODE D352 UDZSTE175R6B DIODE D353 B0ACCK000005 DIODE D354 B0ACCK000005 DIODE...
  • Page 30 Ref. No. Part No. Part Name & Description Remarks D742 1SR35400V DIODE D743 1SR35400V DIODE D744 1SR35400V DIODE D751 1SR35400V DIODE D752 1SR35400V DIODE D753 1SR35400V DIODE D754 1SR35400V DIODE D755 B0AACK000004 DIODE D756 B0BA6R600008 DIODE D757 MTZJ16CTA DIODE D768 B0BA3R300010 DIODE D769...
  • Page 31 Ref. No. Part No. Part Name & Description Remarks S964 EVQ21405RJ SW SOUND MODE S965 EVQ21405RJ SW DIGITAL S966 EVQ21405RJ SW DVD 6CH S967 EVQ21405RJ SW +/RIGHT S968 EVQ21405RJ SW -/LEFT S969 EVQ21405RJ SW TONE/BALANCE S970 EVQ21405RJ SW TAPE MONITOR S971 EVQ21405RJ SW SUB.WOOFER LEVEL...
  • Page 32 Ref. No. Part No. Part Name & Description Remarks Z751 ERZV10V511CS ZENER Z901 B3RAB0000013 REMOTE SENSOR Z1304 J0JKB0000020 EMI BEAD CORE Z1308 J0JKB0000020 EMI BEAD CORE CERAMIC FILTERS CF901 H2B400400008 CERAMIC OSCILLATOR RELAY RL601 K6B2AHA00014 RELAY RL602 K6B2AHA00014 RELAY RL603 K6B2AHA00014 RELAY RL604...
  • Page 33 Ref. No. Part No. Part Name & Description Remarks JACKS JK301 RJS1D1404 JK S VIDEO TERMINAL JK302 RJS1D1404 JK S VIDEO TERMINAL JK351 K4BK01H00001 JK 1 PIN RCA JK351 K4BK09H00001 JK 9 PIN RCA JK352 K4BK04H00002 JK 4 PIN RCA JK402 K4BK04H00001 JK 4 PIN RCA...
  • Page 34 Ref. No. Part No. Part Name & Description Remarks R313 ERDS2TJ103T 10K 1/4W R314 ERDS2TJ750T 75 1/4W R315 ERDS2TJ750T 75 1/4W R316 ERDS2TJ750T 75 1/4W R317 ERDS2TJ102T 1K 1/4W R318 ERDS2TJ102T 1K 1/4W R351 ERDS2TJ750T 75 1/4W R351 ERJ3GEYJ750V 75 1/16W R352 ERDS2TJ750T 75 1/4W...
  • Page 35 Ref. No. Part No. Part Name & Description Remarks R419 ERDS2TJ104T 100K 1/4W R420 ERDS2TJ104T 100K 1/4W R421 ERDS2TJ104T 100K 1/4W R422 ERDS2TJ104T 100K 1/4W R423 ERDS2TJ102T 1K 1/4W R424 ERDS2TJ102T 1K 1/4W R425 ERDS2TJ103T 10K 1/4W R426 ERDS2TJ103T 10K 1/4W R427 ERDS2TJ103T 10K 1/4W...
  • Page 36 R615 ERDS2TJ681T 680 1/4W...
  • Page 37 Ref. No. Part No. Part Name & Description Remarks R616 ERD25FVJ181T 180 1/4W R617 ERD25FVJ181T 180 1/4W R618 ERD25FVJ181T 180 1/4W R619 ERD25FVJ181T 180 1/4W R621 ERDS2TJ682T 6.8K 1/4W R622 ERDS2TJ682T 6.8K 1/4W R624 ERD25FVJ4R7T 4.7 1/4W R625 ERG1SJ101E 100 1W R626 ERG1SJ101E 100 1W...
  • Page 38 R693 ERDS2TJ563T 56K 1/4W...
  • Page 39 Ref. No. Part No. Part Name & Description Remarks R694 ERDS2TJ221T 220 1/4W R695 ERDS2TJ124T 120K 1/4W R696 ERDS2TJ470T 47 1/4W R697 ERDS1FVJ100T 10 1/2W R698 ERDS2TJ182T 1.8K 1/4W R699 ERDS2TJ182T 1.8K 1/4W R705 ERDS2TJ472T 4.7K 1/4W R706 ERDS2TJ102T 1K 1/4W R707 ERD25FVJ221T 220 1/4W...
  • Page 40 Ref. No. Part No. Part Name & Description Remarks R799 ERDS2TJ682T 6.8K 1/4W R901 ERDS2TJ102T 1K 1/4W R902 ERDS2TJ472T 4.7K 1/4W R903 ERDS2TJ103T 10K 1/4W R904 ERDS2TJ102T 1K 1/4W R905 ERDS2TJ104T 100K 1/4W R906 ERDS2TJ271T 270 1/4W R907 ERDS2TJ121T 120 1/4W R908 ERDS2TJ223T 22K 1/4W...
  • Page 41 Ref. No. Part No. Part Name & Description Remarks R1016 ERJ3GEYJ103V 10K 1/16W R1017 ERJ3GEYJ103V 10K 1/16W R1018 ERJ3GEYJ103V 10K 1/16W R1019 ERJ3GEYJ103V 10K 1/16W R1020 ERJ3GEYJ332V 3.3K 1/16W R1021 ERJ3GEYJ332V 3.3K 1/16W R1022 ERJ3GEYJ472V 4.7K 1/16W R1023 ERJ3GEYJ103V 10K 1/16W R1024 ERJ3GEYJ332V 3.3K 1/16W...
  • Page 42 Ref. No. Part No. Part Name & Description Remarks R1201 ERJ3GEYJ102V 1K 1/16W R1202 ERJ3GEYJ473V 47K 1/16W R1203 ERJ3GEYJ222V 2.2K 1/16W R1204 ERJ3GEYJ183V 18K 1/16W R1205 ERJ3GEYJ102V 1K 1/16W R1206 ERJ3GEYJ473V 47K 1/16W R1207 ERJ3GEYJ473V 47K 1/16W R1208 ERJ3GEYJ102V 1K 1/16W R1209 ERJ3GEYJ222V 2.2K 1/16W...
  • Page 43 Ref. No. Part No. Part Name & Description Remarks R1342 ERJ3GEYJ102V 1K 1/16W R1343 ERJ3GEYJ102V 1K 1/16W R1344 ERJ3GEYJ102V 1K 1/16W R1345 ERJ3GEYJ104V 100K 1/16W R1346 ERJ3GEYJ104V 100K 1/16W R1347 ERJ3GEYJ104V 100K 1/16W R1348 ERJ3GEYJ104V 100K 1/16W R1349 ERJ3GEYJ473V 47K 1/16W R1350 ERJ3GEYJ473V 47K 1/16W...
  • Page 44 Ref. No. Part No. Part Name & Description Remarks R1480 ERJ3GEYJ104V 100K 1/16W R1481 ERJ3GEYJ104V 100K 1/16W R1483 ERJ3GEYJ104V 100K 1/16W R1484 ERJ3GEYJ104V 100K 1/16W R1521 ERJ3GEYJ472V 4.7K 1/16W R1522 ERJ3GEYJ223V 22K 1/16W R1523 ERJ3GEYJ224V 220K 1/16W R1524 ERJ3GEYJ103V 10K 1/16W R1525 ERJ3GEYJ103V 10K 1/16W...
  • Page 45 Ref. No. Part No. Part Name & Description Remarks C302 F1D1H223A012 0.022 50V C303 ECA1CAK470XB 47 16V C304 F1D1H223A012 0.022 50V C305 F1D1H470A006 47P 50V C306 F1D1H470A006 47P 50V C307 ECA1CAK470XB 47 16V C308 F1D1H223A012 0.022 50V C309 F1D1H470A006 47P 50V C310 F1D1H470A006 47P 50V...
  • Page 46 Ref. No. Part No. Part Name & Description Remarks C413 ECA1CAK100XB 10 16V C414 ECA1CAK100XB 10 16V C415 ECBT1H103KB5 0.01 50V C416 ECBT1H103KB5 0.01 50V C417 ECA1CAK100XB 10 16V C418 ECA1CAK100XB 10 16V C467 ECBT1H103KB5 0.01 50V C533 F1D1H1040002 0.1 50V C534 F1D1H1040002 0.1 50V...
  • Page 47 Ref. No. Part No. Part Name & Description Remarks C704 RCE1J472MHSK 4700P 63V C705 RCE1V562MHSK 5600P 35V C706 RCE1V562MHSK 5600P 35V C707 ECA1VAM101XB 100 35V C708 ECBT1H103KB5 0.01 50V C709 ECA1CAK330XB 33 16V C710 ECBT1H103KB5 0.01 50V C711 ECBT1H103KB5 0.01 50V C712 ECA1HAK100XB 10 50V...
  • Page 48 Ref. No. Part No. Part Name & Description Remarks C921 F1D1H331A012 330P 50V C922 F1D1H331A012 330P 50V C923 F1D1H331A012 330P 50V C924 F1D1H331A012 330P 50V C925 F1D1H331A012 330P 50V C926 F1D1H331A012 330P 50V C927 F1D1H331A012 330P 50V C928 F1D1H331A012 330P 50V C929 F1D1H331A012 330P 50V...
  • Page 49 Ref. No. Part No. Part Name & Description Remarks C1201 ECUV1H103KBV 0.01 50V C1202 ECUV1A224KBV 0.22 10V C1203 ECA1CAK330XB 33 16V C1204 ECUV1H103KBV 0.01 50V C1205 ECA1CAK330XB 33 16V C1206 ECJ1VB1H472K 4700P 50V C1207 ECJ1VB1H272K 2700P 50V C1208 ECJ1VB1H472K 4700P 50V C1209 ECJ1VB1H272K 2700P 50V...
  • Page 50 Ref. No. Part No. Part Name & Description Remarks C1306 ECUVNC104ZFV 0.1 16V C1307 ECUV1H103KBV 0.01 50V C1308 ECUVNC104ZFV 0.1 16V C1309 ECUVNC104ZFV 0.1 16V C1311 ECUVNC104ZFV 0.1 16V C1312 ECUVNC104ZFV 0.1 16V C1313 ECUV1H103KBV 0.01 50V C1345 ECA1HAK4R7XB 4.7 50V C1346 ECA1HAK4R7XB 4.7 50V...
  • Page 51 Ref. No. Part No. Part Name & Description Remarks C1531 ECUV1H391JCV 390P 50V C1532 ECA1CAK100XB 10 16V C1533 ECJ1VC1H151J 150P 50V C1681 ECBT1H103KB5 0.01 50V C1682 ECBT1H103KB5 0.01 50V C1685 ECBT1H103KB5 0.01 50V C1701 ECA1CAK101XB 100 16V C1702 ECA1AM332E 3300 10V C1703 ECUV1H103KBV 0.01 50V...
  • Page 52 / Printed in Singapore / M020300001 FLE/C/J/D/N/S/A...
  • Page 53 PHONO EQ P.C.B (REP3351A-S) CP101 (To Tuner Pack RAN0001MM) J183 VIDEO P.C.B (REP3352A-T) TV OUT DVD IN TV IN S-VIDEO VCR1 IN DVD IN TV OUT VCR1 TV_MON DVD_IN TV_IN R312 R311 R302 R301 R306 R305 C306 C305 JK351 J352 J351 J355 C363...

  • Page 54: Schematic Diagram

    SCHEMATIC DIAGRAM - 1 : -B SIGNAL LINE : MAIN SIGNAL LINE : +B SIGNAL LINE DIGITAL CIRCUIT R1203 C1204 2.2K 0.01 R1212 C1215 R1205 R1209 C1205 R1219 LS CH 50V10 3.3K R1204 2.2K 16V33 3.3K R1341 R1213 RS CH R1206 1.5K C1202...
  • Page 55 SCHEMATIC DIAGRAM - 2 : +B SIGNAL LINE : -B SIGNAL LINE : MAIN SIGNAL LINE DIGITAL CIRCUIT R1358 4.7K R1452 R1451 1.8K R1353 R1354 R1351 C1348 R1345 1.5K 6.8K 50V4.7 100K C1451 50V4.7 R1347 C1345 R1454 100K 50V4.7 6.8K C1412 C1410 R1349...
  • Page 56 SCHEMATIC DIAGRAM - 3 : +B SIGNAL LINE : -B SIGNAL LINE : MAIN SIGNAL LINE DIGITAL CIRCUIT R1413 R1414 <14.18V> 28 27 26 25 24 23 22 21 20 19 18 17 16 IC1402 TC9482F IC1402 VOLUME CONTROL IC1452 NJM2060MTE1 OP AMP C1483...
  • Page 57 SCHEMATIC DIAGRAM - 4 : +B SIGNAL LINE DIGITAL CIRCUIT R1023 /EMOE C1042 1000P C1006 C1040 R1042 25V330 IC1003 CDINV SN74LV244APW CONVERTER R1047 <2.44V> <0V> <0V> <2.46V> CDINV SCDIN AUDATA1 SDIN2 <1.28V> <0V> CCLKV SCCLK SDIN1 AUDATA2 <2.3V> <1.48V> <5.01V> <0V>...
  • Page 58 SCHEMATIC DIAGRAM - 5 : MAIN SIGNAL LINE : +B SIGNAL LINE DIGITAL CIRCUIT LS_DSP C1232 4700P R1055 OVL/ERR R1056 R1057 R1058 R1059 C1233 4700P L1004 G1C2R2K00008 C1011 RS_DSP 6.3V100 C1234 16V33 AOUT3 R1060 AOUT2 <2.38V> R1061 AOUT1 <2.38V> AGND2 <0V>...
  • Page 59 SCHEMATIC DIAGRAM - 6 : +B SIGNAL LINE : -B SIGNAL LINE : MAIN SIGNAL LINE DIGITAL CIRCUIT C1237 R1234 330P 6.8K R1247 C1261 R1242 R1236 C1240 50V4.7 4.7K 2700P C1231 R1235 16V33 R1231 IC1230 C1253 R1232 0.01 IC1231 C125 2 0.01 R1238 C1239...

  • Page 60: Main Circuit

    SCHEMATIC DIAGRAM - 7 : +B SIGNAL LINE : -B SIGNAL LINE : FM/AM SIGNAL LINE : MAIN SIGNAL LINE PHONO EQ CIRCUIT (W402) ON SCHEMATIC DIAGRAM-12 MAIN CIRCUIT CN401 CN402 +14V TU_R DT_9162 +14V CK_9162 R425 R426 R423 28 27 26 25 24 23 22 21 20 19 18 C401...
  • Page 61 SCHEMATIC DIAGRAM - 8 : +B SIGNAL LINE : -B SIGNAL LINE : MAIN SIGNAL LINE MAIN CIRCUIT IC651 C583 IC651 16V10 RSN310R36A-P MAIN_SLIN R593 2.7K R550 <0V> 20 19 12 11 <-15.91V> R583 8.2K Q553 R553 C535 R545 <0V> C694 680K <0V>...
  • Page 62 SCHEMATIC DIAGRAM - 9 : -B SIGNAL LINE : MAIN SIGNAL LINE : +B SIGNAL LINE MAIN CIRCUIT L CH SURROUND C6 95 SPEAKERS 0.047 R CH RL601-RL604 R662 R697 R661 K6B2AHA00014 SUB WOOFER SPEAKER JK604 C662 R664 0.047 RL603 L652 R696 RLQYR73MW-E...

  • Page 63: Panel Circuit

    SCHEMATIC DIAGRAM - 10 : +B SIGNAL LINE : -B SIGNAL LINE : MAIN SIGNAL LINE PANEL CIRCUIT MAIN CIRCUIT MAIN CIRCUIT MAIN CIRCUIT (CN903) ON (CN902) ON (CN901) ON SCHEMATIC SCHEMATIC SCHEMATIC DIAGRAM-8 DIAGRAM-8 DIAGRAM-7 CP903 CP902 CP901 9 10 FL901 A2BB00000100 10 11 12 13 14 15 16 17 18 19 20 21 22 23...
  • Page 64 SCHEMATIC DIAGRAM - 11 : +B SIGNAL LINE PANEL CIRCUIT DIGITAL CIRCUIT (CN904B) ON SCHEMATIC DIAGRAM-6 CN904A 9 10 11 12 13 14 15 16 17 18 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 VR901 K9AA012A0002 INPUT...

  • Page 65: Transformer Circuit

    SCHEMATIC DIAGRAM - 12 : +B SIGNAL LINE : -B SIGNAL LINE : FM/AM SIGNAL LINE TUNER PACK (RAN0001MM) PHONO EQ CIRCUIT CP101 +14V R449 R467 R450 R468 C467 0.01 W402 MAIN CIRCUIT TRANSFORMER CIRCUIT (CN401/CN402) ON SCHEMATIC DIAGRAM-7 R759 Q752 KTD863 REGULATOR...

  • Page 66: Video Circuit

    SCHEMATIC DIAGRAM-13 : +B SIGNAL LINE : -B SIGNAL LINE VIDEO CIRCUIT IC351 IC351-IC353 C1AA00000647 VIDEO SELECTOR C367 R360 R351 C351 R363 6.3V1000 C363 C366 6.3V100 TV MONITOR R352 C352 6.3V1000 R353 C353 IC352 6.3V1000 C354 R354 16V47 C355 R355 16V47 C356 R356...
  • Page 67 HEADPHONES SOLDER SIDE HP601 CN907 1 2 3 4 HEADPHONE P.C.B. 18 ..2 17 ..1 SOLDER SIDE CN904A VR902 VR901 PANEL P.C.B. W906 CP901 CP902...
  • Page 68 11 ... . . 1 CP101 (TO TUNER PACK UNIT) (RAN 000 IMM) PHONO EQ P.C.B. W402 SOLDER SIDE TV OUT DVD IN TV IN S-VIDEO VCR1 IN DVD IN JK1302 JK1303 JK1301...
  • Page 69 IC401 TC9163AN SELECTOR TUNER 3(26) FROM IC901 MODULE 2(27) JK404 VCR RO 4(25) JK402 5(24) 6(23) JK405 7(22) JK403 IC402 C0AABB000086 8(21) 12(17) 9(20) JK402 10(19) TAPE REC (OUT) JK403 11(18) TAPE PLAY (IN) Level shift Latch circuit DATA Shift register IC351,IC352,IC353 C1AA00000647 VIDEO SELECTOR SWITCH...
  • Page 70 IC1203 C0ABBB000127 IC1201 NJM2060MTE1 21(22) JK1301 A OUT1(2) (OPTICAL) JK1303 IC1521(IC1522) DIGITAL C0ABBB000102 (OPTICAL) IC1002 10(13) C0FBZJ000004 AINL+(AINR+) JK1302 DIGITAL ANALOG CONVERTER (COAXIAL) AOUT5 23(24) AOUT3(4) Q1001 SWITCH (DSP:OFF) X1001 (12.288MHz) IC1005 SN74HCU04APW INVERTER IC1006 SNAHC1U04DBV INTREQ OSCILLATOR SCD OUT AUX0 IC1004 IC1003...
  • Page 71 C_CH IC1401 IC1301,IC1302 C0JBAS000175 NJM2060MTE1 HIGH BREAKDOWN SW_CH VOLTAGE ANALOG JK1341 FUNCTION SWITCH LS_CH L-COM1 R-COM1 IC1451 C0ABBB000127 (26) L-COM2 R-COM2 IC1230 NJM2060MTE1 L-COM3 R-COM3 L-COM4 R-COM4 DATA CONTROL CIRCUIT Q556 Q560 AUDIO MUTING REGULATOR SWITCH D501 Q557 AUDIO MUTING SWITCH TO TUNER MODULE...
  • Page 72 IC1402 TC9482F VOLUME CONTROL SW_OUT Q551 (Q552) SW_IN 1 dB AUDIO MUTING LATCH SWITCH IC1452 8 dB NJM2060MTE1 LATCH C_OUT C_IN 1 dB Q555 LATCH AUDIO 8 dB MUTING SWITCH Q553(Q554) LATCH AUDIO MUTING 9(20) SL_OUT(SR_OUT) SWITCH 1 dB 10(19) SL_IN(SR_IN) LATCH SENS+...
  • Page 73 IC601 RSN310R36A-P SENS+ PASS+ AMUTE D601 +HOUT SGND FILTER IN2- SURR SP_B FILTER IN3- S/C_SP PASS- D602 -HOUT FILTER VDLIM FILTER SENS- Q652 FILTER DISP RELAY CONTROL IHDET D605 Q651 RELAY CONTROL SURR D617 Q604 VOLTAGE SWITCH FILTER KEY SWITCH AMUTE AF_MUTE IC901...
  • Page 74 HP601 HEADPHONES Q1681 (Q1682) HP MUTING Q601 RL602 D612 RELAY DRIVER JK603 CENTER SPEAKER RL603 D613 JK604 SURROUND Q602 SPEAKER RL601 D611 RELAY DRIVER JK603 FRONT Q605 SPEAKER RL604 RELAY D614 DRIVER JK604 SWITCH CHANNEL Q771~Q781 FAN MOTOR DRIVER Q751 FAN MOTOR Q754 RL751...
  • Page 75 SNAHC1U04DBV C2BBGF000334 (100P) RSN310R36A-P TC9482F (28P) C0ABBB000102 C2HBZZ000008 (44P) C0JBAS000175 (30P) C0AABB000086 C0FBZJ000004 (44P) NJM2060MTE1 (14P) C0ABBB000127 C1AA00000647 (14P) NJM2279MTE1 (14P) C1AA00000123 TC9163AN SN74LV244APW (20P) RVTDTA113ZST 2SB621ARSTA BA25BC0FP SN7AHCT244PW (20P) SN74HCU04APW (14P) KTD863 KTC2026 KRC107MTA 2SB1548PQAU 2SB621AQSTA 2SK2880CTA 2SD1915FTA 2SD2374PQAU 2SD592AQSTA KTA1267GRTA KRA102MTA...
  • Page 76 DIGITAL P.C.B (REP3350A-T) (SIDE:A) JK1341 JK352 DGND VCC DGND L1304 C1312 L1303 C1311 C1342 C1343 C1344 IC1203 R1343 R1344 R353 R1341 C1223 R1342 C351 R1310 R1345 R1348 R1346 R1347 R1202 R364 C356 D354 C353 C1221 R1205 R1211 R355 R1203 R1209 R1225 R1353 C1212...
  • Page 77 MAIN P.C.B ( REP3349A-M...P) (REP3349B-M...PC) J135 J128 CN401 CN402 J337 C701 J820 J805 J327 J143 J127 J142 J911 J126 J833 J113 J366 J362 J330 R621 J335 R420 J338 D707 R622 J144 R546 J631 C712 Q554 Q553 C711 J334 J342 Q707 C758 J903 R545...
  • Page 78 J801 J135 CN401 CN402 5 16 J111 R426 R402 J321 R425 J911 J112 J614 J113 J366 R418 J316 R621 R401 R420 R416 R622 C418 IC402 R406 R422 C416 IC401 C412 J358 C417 R417 C411 R421 J141 R424 C405 R545 R415 R550 R408 R407...
  • Page 79 PANEL P.C.B ( REP3351A-S) SELECTOR VOLUME SENSOR CN904A R928 J116 J117 J119 VR902 D938 D944 J363 J364 J345 J365 S965 J346 J347 J118 VR901 J333 J366 DIGITAL J115 J114 R994 J332 R921 C991 Q902 D904 R968 Z901 C907 D940 S966 S971 S970 R907...
  • Page 80 VOLUME J117 J314 J368 VR902 J315 J316 J317 J102 J318 J319 S953 S964 J320 J333 C994 J103 J114 SFC MODE SOUND R994 J311 MODE J332 C993 J312 R993 J113 J106 C902 J321 R923 C903 R953 J322 MEMORY S954 S962 J323 IC901 J324 J112...
  • Page 81 SUB-TRANSFORMER P.C.B REP3349A-M...P) (REP3349B-M...PC) D757 C752 W752 CAUTION D754 D752 RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT Q752 TOUCH THIS P.C.B D753 D751 T701 (POWER TRANSFORMER) SECONDARY PRIMARY R759/PP,PC J168 F5 125V 1.6A FC710 FC709 C741 D744 T751 J661 J164...
