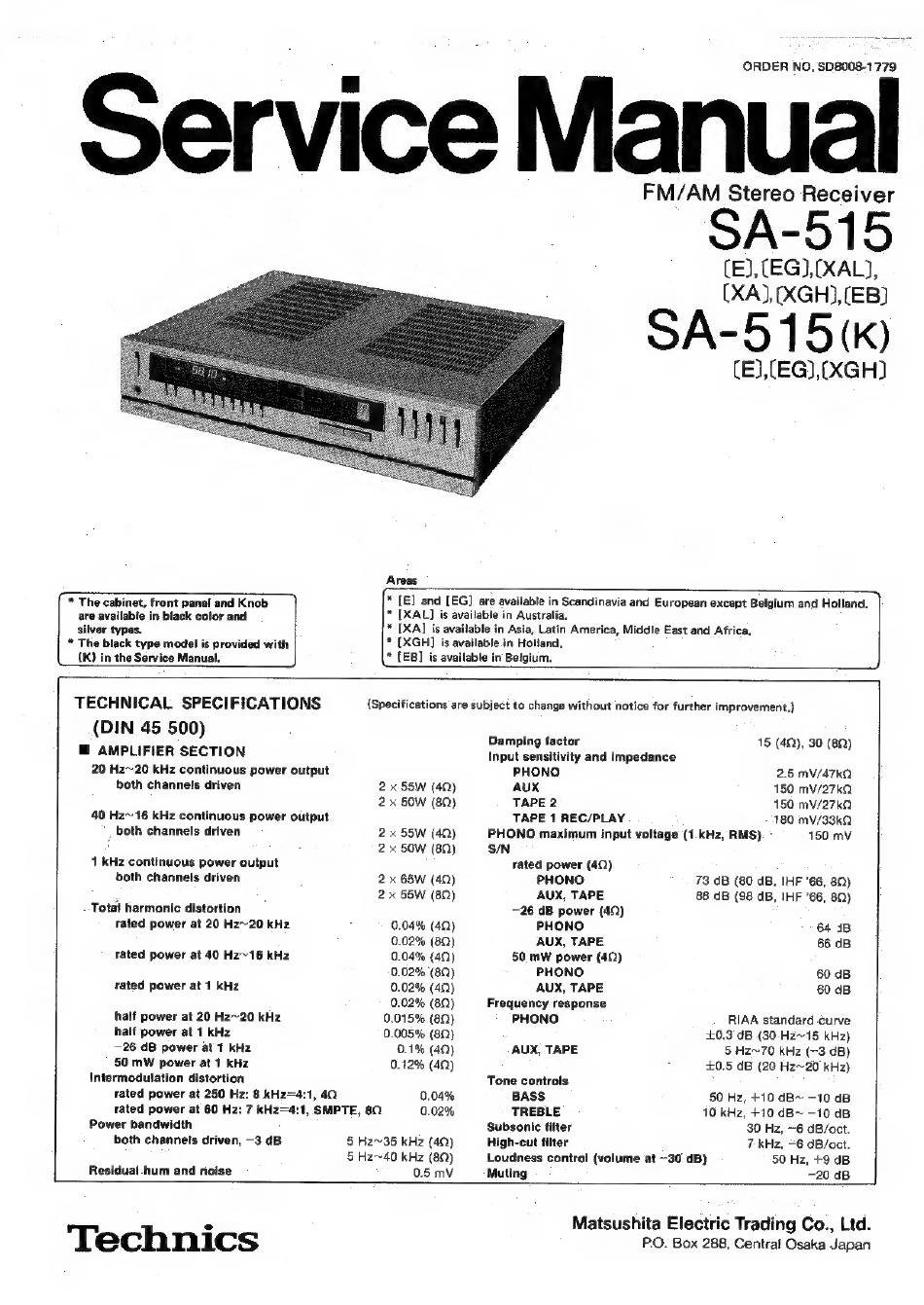

Technics SA-515 Service Manual

ervice Manual
Areas
ORDER NO. SD8008-1779
FM/AM Stereo Receiver
SA-515
CE), (EG),(XAL),
(XA], (XGH), (EB)
(E),(EG),(XGH)
inet, front panel and Knob
are available in black color and
silver types.
* The black type model is provided with
(K) in the Service Manual.
—
* (E] and [EG] are available in Scandinavia and European except Belgium and Holland,
* [XAL] is available in Australia.
* [XA] is available in Asia, Latin America, Middle East and Africa,
* (XGH] is available in Holland,
* [EB] is available in Belgium.
a}
TECHNICAL SPECIFICATIONS
(DIN 45 500)
@ AMPLIFIER SECTION
20 Hz~20 kHz continuous power output
both channels driven 2 x SSW (42)
2 x SOW (80)
40 Hz~16 kHz continuous power output
both channels driven 2 x 55W (42)
2 x SOW (82)
1 kHz continuous power output
both channels driven 2 x 65W (40)
2 x SSW (8M)
Total harmonic distortion
tated power at 20 Hz~20 kHz 0.04% (49)
0.02% (89)
rated power at 40 Hz~16 kHz 0.04% (42)
0.02% (82)
rated power at 1 kHz 0.02% (42)
0.02% (89)
half power at 20 Hz~20 kHz 0.015% (82)
half power at 1 kHz 0.005% (82)
—26 dB power at 1 kHz 0.1% (42)
50 mW power at 1 kHz 0.12% (40)
Intermodulation distortion
rated power at 250 Hz: 8 kHz=4:1, 40 0.04%
rated power at 60 Hz: 7 kHz=4:1, SMPTE, 80 0.02%
Power bandwidth
both channels driven, —3 dB 5 Hz~35 kHz (40)
5 Hz~40 kHz (89)
Residual hum and noise 0.5 mV
Damping factor 15 (49), 30 (8Q)
Input sensitivity and impedance
PHONO 2.5 mV/47kQ
AUX 150 mV/27kQ
TAPE 2 150 mV/27kQ
TAPE 1 REC/PLAY 180 mV/33kQ
PHONO maximum input voltage (1 kHz, RMS). 150 mV
'S/N
rated power (40)
PHONO 73 dB (80 dB, IHF '66, 8Q)
AUX, TAPE 88 dB (98 dB, IHF '66, 80)
—26 dB power (49)
PHONO 64 IB
AUX, TAPE 66 dB
50 mW power (40)
PHONO 60 dB
AUX, TAPE 60 dB
Frequency response
PHONO RIAA standard curve
0.3 dB (30-Hz~15 kHz)
AUX, TAPE 5 Hz~70 kHz (—3 dB)
0.5 dB (20 Hz~20 kHz)
Tone controls
BASS
TREBLE
Subsonic filter
High-cut filter
Loudness contro! (volume at —30 dB)
Mating
50 Hz, +10 dB~ -10 dB
10 kHz, +10 dB~ -10 dB
30 Hz, ~6 dB/oct.
7 kHz, ~6 dB/oct.
50 Hz, +9 dB
=20 dB
Technics
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
