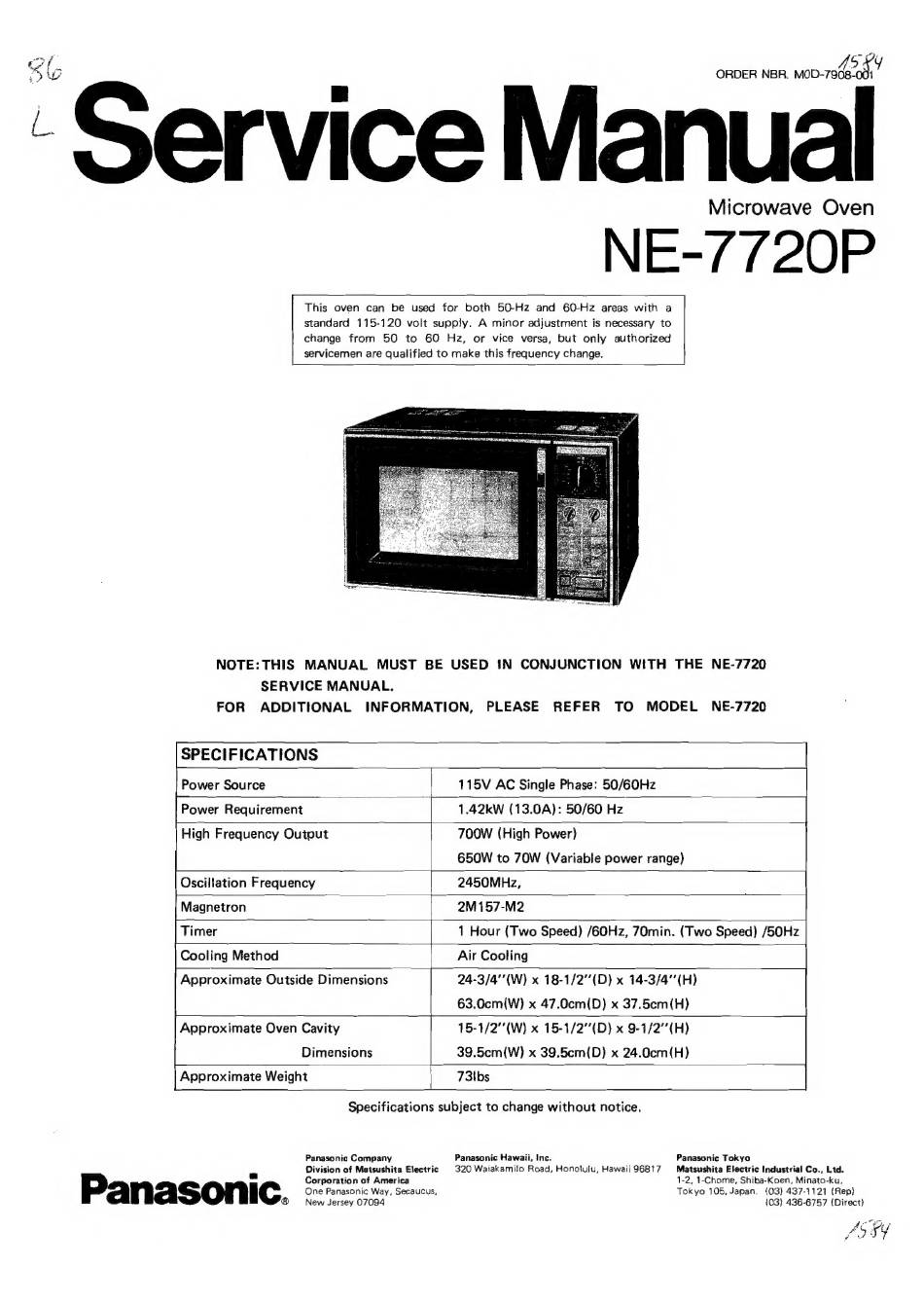

Panasonic NE-7720P Service Manual

5. £Y
ORDER NBR. MOD- oleh
Microwave Oven
NE-7720P
This oven can be used for both 50-Hz and 60-Hz areas with a
standard 115-120 volt supply. A minor adjustment is necessary to
change from 50 to 60 Hz, or vice versa, but only authorized
servicemen are qualified to make this frequency change.
NOTE: THIS MANUAL MUST BE USED IN CONJUNCTION WITH THE NE-7720
SERVICE MANUAL.
FOR ADDITIONAL INFORMATION, PLEASE REFER TO MODEL NE-7720
SPECIFICATIONS |
Power Source 115V AC Single Phase: 50/60Hz
ee Requirement 1.42kW (13.0A): 50/60 Hz
High Frequency Output 700W (High Power)
650W to 70W (Variable power range)
Oscillation Frequency 2450MHz,
Magnetron 2M157-M2
Timer 1 Hour (Two Speed) /60Hz, 70min. (Two Speed) /50Hz
Cooling Method Air Cooling
Approximate Outside Dimensions 24-3/4''(W) x 18-1/2''(D) x 14-3/4'"(H)
63.0cm(W) x 47.0cm(D) x 37.5cm(H)
Approximate Oven Cavity 15-1/2'(W) x 15-1/2'(D) x 9-1/2'"(H)
Dimensions 39.5cm(W) x 39.5cm(D) x 24.0cm(H)
Approximate Weight 73ibs
Specifications subject to change without notice.
