Summary of Contents for Harrison 32Classic MS

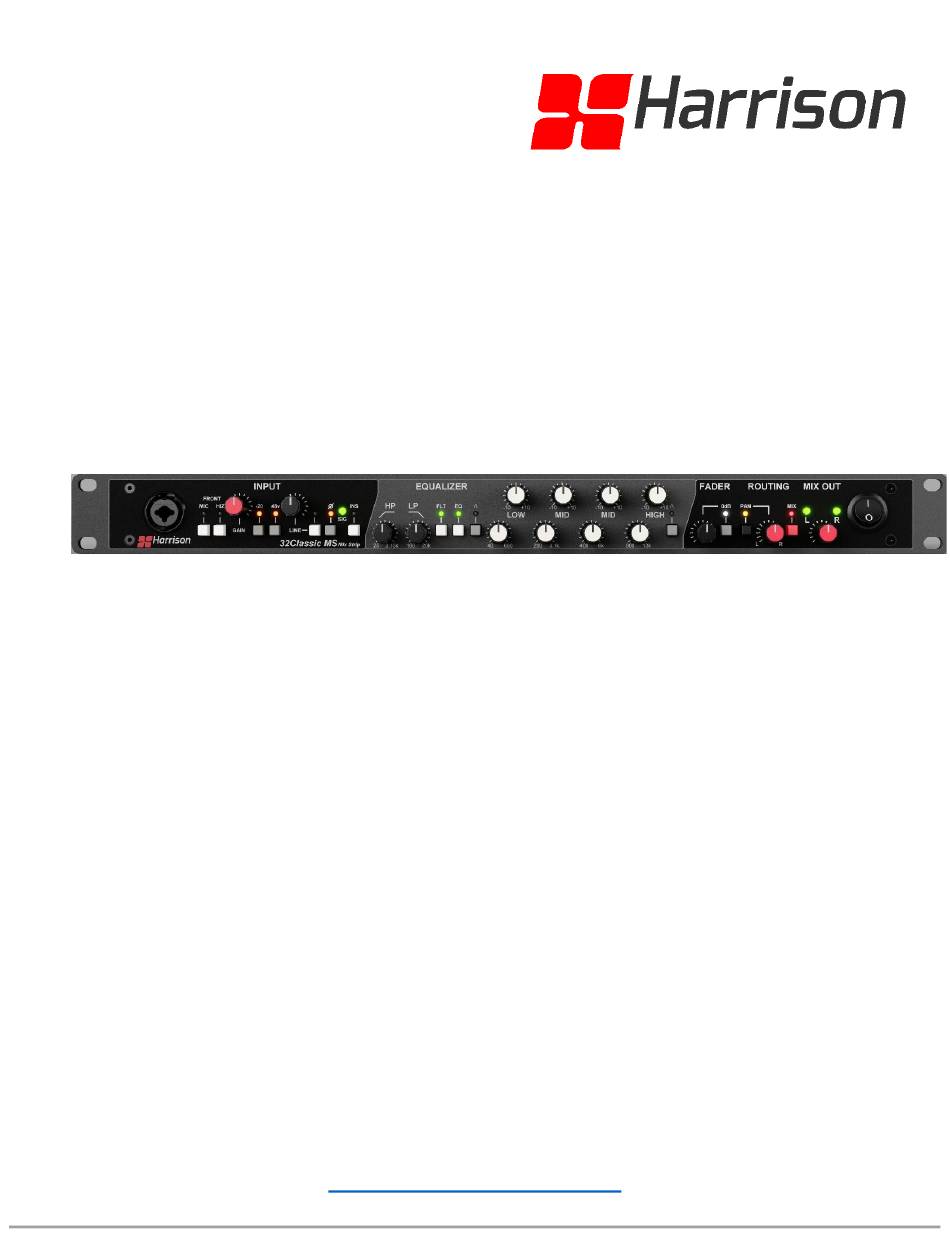

Page 1 32Classic MS Mix Strip User Guide www.harrisonaudio.com...
Page 2 As research and development is a continual process, Harrison Audio LLC reserves the right to change the features and specifications described herein without notice or obligation. Harrison Audio LLC cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in this manual.
Page 3: Table Of Contents
Contents Table of Contents Overview Introduction Input Section EQ Section Routing Section Features Installation Unpacking Rack Mounting Safety Notices Hardware Overview Front Panel Rear Panel Connections Overview Tutorial Power On Front Panel Controls Input Section Equalizer Section Output / Mix Section Specifications Safety Notices...
Page 4: Introduction
Note: if both the MIC and HiZ switches are selected the HiZ (instrument) input will be the active preamp source. A Line input to the 32Classic MS is also included via a rear XLR. The Line input has a switch for activation and a potentiometer providing +/- 6dB input level trim.
Page 5: Routing Section
Rack Mounting, Heat and Ventilation The 32Classic MS is a 1U, 19” rackmount piece of equipment designed to sit in the racking of a producer’s desk or similar. It is recommended that ventilation space is left above and below the unit so any heat generated by the 32Classic MS or other equipment mounted above or below the 32Classic MS can naturally disperse.
Page 6: Hardware Overview
11 - Mix output XLR connectors for the left and right mix bus outputs. 12 - Mix bus connectors, jumper multiple 32Classic MS units together via the included bus link and sum link cables. 13 - Channel outputs pre and post fader XLR connectors.
Page 7: Connections Overview
Hardware Overview Connections Overview This section provides an overview of the 32Classic MS hardware. The tutorial section covers each control in more detail. Front and Rear Panel Connections 1 – AC pass through to connect multiple units. 2 – Bus link cables to connect additional units to build a side car mixer.
Page 8: Tutorial
The HiZ switch activates the ¼” jack as the source for the 32Classic MS unit. Note: If both the MIC and HiZ switches are depressed, the HiZ ¼” jack will be the active source for the 32Classic MS unit. 32Classic MS...
Page 9 9 - POLARITY (Ø) Flips the polarity of the selected input source of the 32Classic MS unit. When dealing with multi-mic'd instruments such as drums, phase cancellations can occur due to the microphones receiving the sound waves at different times. Flipping the polarity (or phase as it is often referred to) on certain channels can help resolve these cancellations.
Page 10: Equalizer Section
Variable control of the low pass filter frequency setting from 160 (Hz) to 20 (kHz). 3 - FLT Switches the high pass and low pass filters in and out of the 32Classic MS signal path. 4 - EQ Switches the Equalizer in and out of the 32Classic MS signal path.
Page 11 Variable boost and cut for the HIGH band EQ from -10 to +10 dB. 14 - HIGH Bell Toggles between shelf mode (default) and bell mode on the HIGH band EQ. When bell mode is selected the Q is proportional to the boost and cut of the HIGH band EQ. 32Classic MS...
Page 12: Output / Mix Section
Front Panel Controls Mix Output Section Note: Use the supplied ‘Sum Link’ cable to access the MIX OUTPUT section of the 32Classic MS during single unit use. 1 - Fader Output Level Controls the 32Classic MS post fader output level. Also adjusts the level to the MIX bus when routed.
Page 13: Specifications
Routes the 32Classic MS channel to the mix bus. 5 - MIX OUTPUT Controls the final MIX bus output from the 32Classic MS unit that has the Sum Link rear cable connected to it. 6 - MIX Meters LR Bi-colored LED meters the left and right mix bus signals pre the mix out level control. Green (present) Yellow (0dB) Red (peak).
Page 14 Green >= -14 dBu Yellow >= 4 dBu Red >= 18 dBu Physical Width: 19” (48.2 cm) Height: 1.75” / 1 RU (4.4 cm) Depth (from rear of rack ear): 10.25” (26.0 cm) Weight: 8.1 lbs (3.67 kg) 32Classic MS...
Page 15: Safety Notices
• Harrison does not accept liability for damage caused by maintenance, repair or modification by unauthorized personnel. • When using this apparatus either fix it into a standard 19” rack or place it on a secure level surface.
Page 16 • The appliance coupler is used as the disconnect device, ensure that it is connected to an unobstructed wall outlet. • Connect only to an AC power source that contains a protective earthing (PE) conductor. • Only connect units to single phase supplies with the neutral conductor at earth potential 32Classic MS...
Page 17: Fcc Certification
Electrical Safety IEC 62368-1:2018 BS EN IEC 62368-1:2020+A11:2020 CSA CAN/CSA-C22.2 No. 62368-1 3rd Ed. UL 62368-1 3rd Ed. 32Classic MS...
Page 18: Further Information
The unit’s construction method will allow easy dis-assembly supporting separating and recycling core components when the product reaches its end of life. 32Classic MS...
