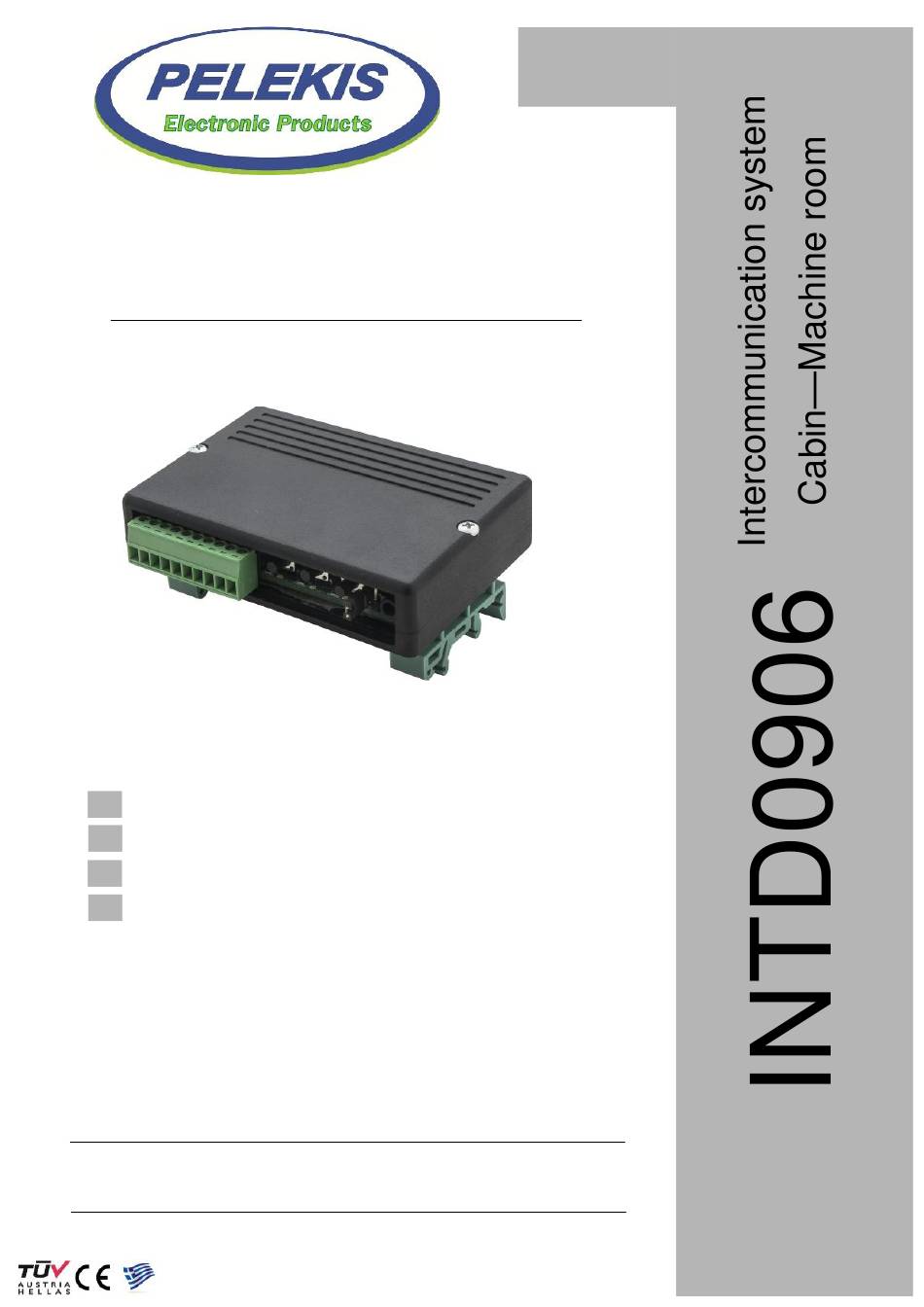

Intercommunication system
Cabin—Machine room (ΕΝ81-28)
Page. 2
Page. 3
Page. 4
Page. 5
Please read the instructions carefully so that you can take
advantage of all the features of this device.
Reference Manual
Version
General description
Connectivity
Operation mode
Reference Manual
www.pelekis.eu
Rev. 1.1 April 2021
Advertisement
Summary of Contents for PELEKIS INTD0906
- Page 1 Page. 2 Version Page. 3 General description Page. 4 Connectivity Page. 5 Operation mode Please read the instructions carefully so that you can take advantage of all the features of this device. www.pelekis.eu Rev. 1.1 April 2021...
- Page 2 Version V1.0 04/2019 Initial design. V1.1 04/2021 Jack 3.5mm added for the machine room communication. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.1 April 2021...
-
Page 3: General Description
General description : INTERCOM device with code INTD0906 is an intercommunication device for the elevator. This device provides the necessary connection, according to EN81-28, for the direct communication of the person trapped in the cabin of the elevator, with the rescue team in the Machine Room. -
Page 4: Technical Specifications
Headset Output Power User Interface Indicator white LED and pressure button for operations 0-60°C Operation Temperature 10-80% (non condensing) Humidity Level Dimension(exterior) 90 x 62 x 13,1 mm (H x W x D) 350gr Weight PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.1 April 2021... - Page 5 Power supply 12 or 24 V DC For the proper operation of the system, the INTD0906 must be placed on parallel to the line that reaches the telephone device, located inside the cabin. For further assistance, please call the company's SERVICE at 2102323345.
-
Page 6: Operation Mode
LED remains on, we can release the button and end the intercommunication in this way. After the end of the process, the device will reset the phone line to the device of the cabin, after 3 seconds. PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.1 April 2021... - Page 7 Technical support For technical support of this product, contact your local distributor or contact Pelekis Electronics. Pelekis Electronics Contact Info : Tel. :+30 210 23 23 345 Fax :+30 210 23 86 382 E-mail : info@pelekis.eu Website : www.pelekis.eu PELEKIS ELECTRONICS ISO9001/2015 Rev.
