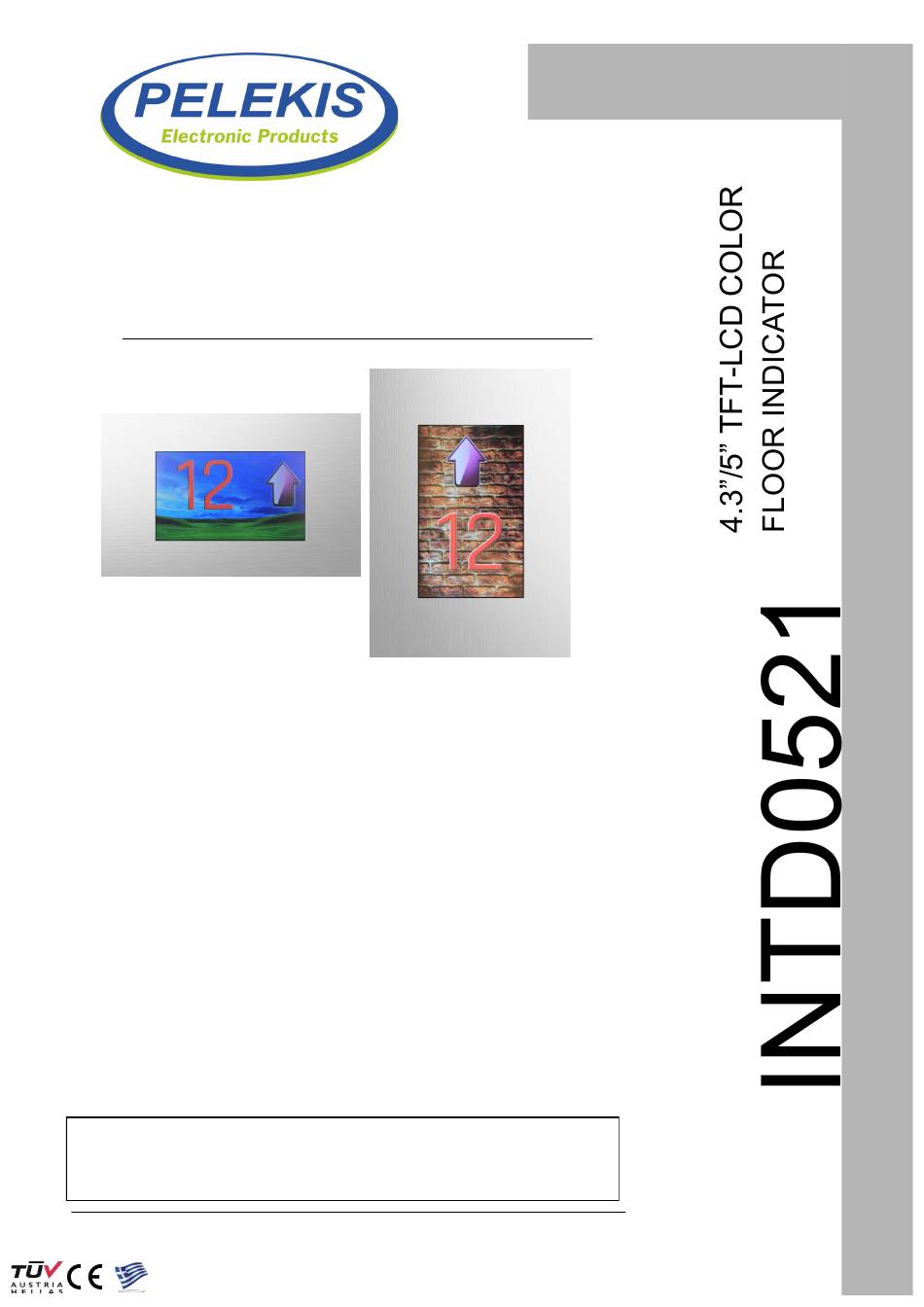

4.3"/5" TFT-LCD COLOR
FLOOR INDICATOR w/ Floor Announcement
•
Page 2 Description - Specifications
•
Page 3 Typical wiring diagram
•
Page 4 DIP switch functionality/ECO input
Please read all the instruction carefully in order to exploit
all the advantages of this device.
PELEKIS ELECTRONICS
Manual INTD0521
Reference Manual
ISO9001/2015
Rev. 1.2 December 2021
Advertisement
Summary of Contents for PELEKIS INTD0521
- Page 1 Reference Manual Manual INTD0521 4.3”/5” TFT-LCD COLOR FLOOR INDICATOR w/ Floor Announcement • Page 2 Description - Specifications • Page 3 Typical wiring diagram • Page 4 DIP switch functionality/ECO input Please read all the instruction carefully in order to exploit all the advantages of this device.
- Page 2 Description: The INTD0521 device is a color TFT-LCD floor indicator with Floor Announcement functionality that comes with on board micro SD card graphics and audio storage. Also the device support BCD/OWPF (One wire per floor) control panel inputs formats select- ed via on bard DIP switch.
- Page 3 Power supply (-) (0) Input A GNG input (Gong Input to Announce Floor) ECO input (Emergency light) Input B Arrow up input Input C Arrow down input Input D Service input Overload input Input E PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.2 December 2021...
- Page 4 If GNG input is OFF (not connected) , the device is not able to announce the floor during any Floor-input change. If GNG input is ON (connected) ,the device will announce the upcoming Floor while on any change state of ABCDE inputs PELEKIS ELECTRONICS ISO9001/2015 Rev. 1.2 December 2021...
