INTELCO INTD0461 Manual

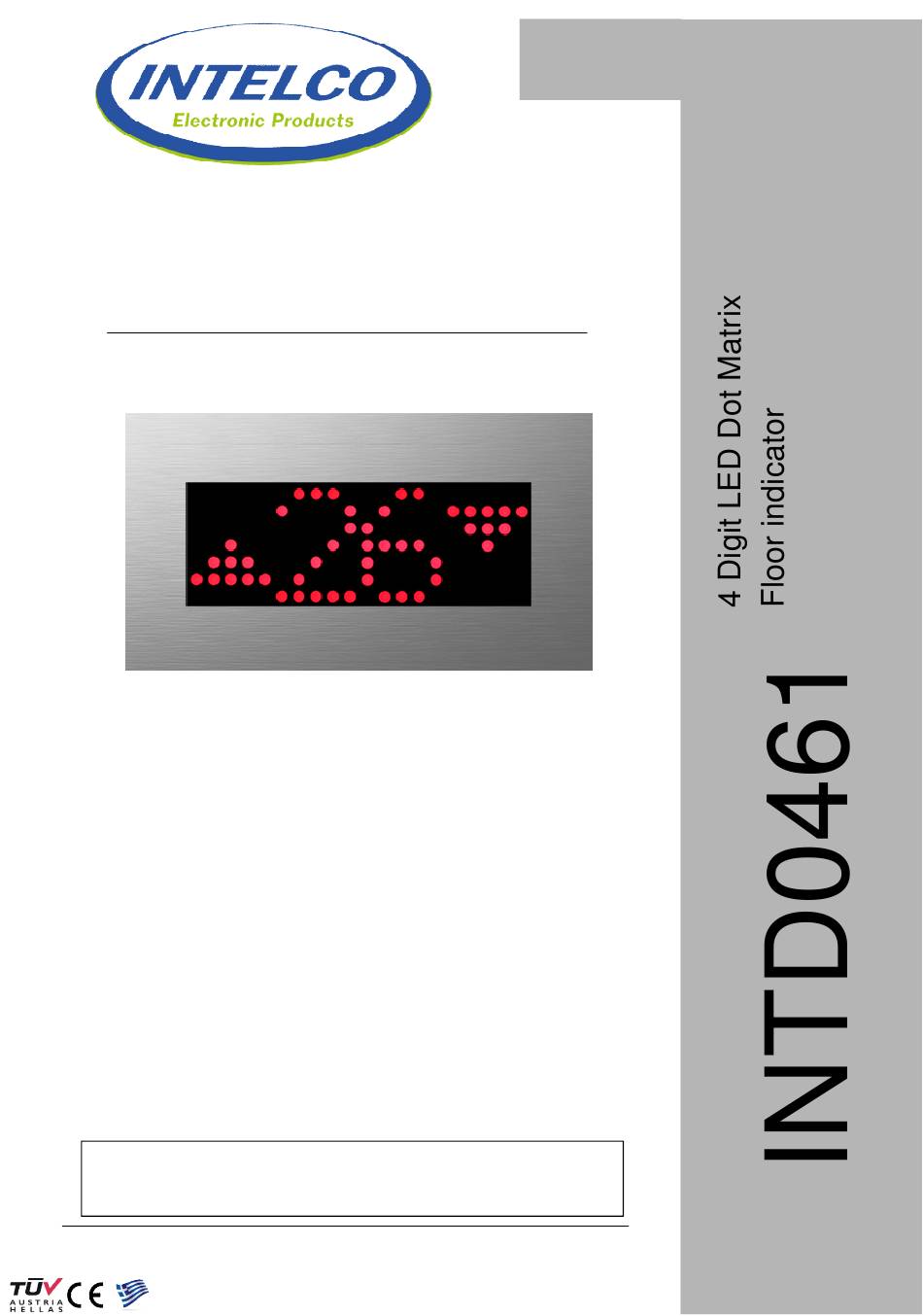

4 digit led dot matrix floor indicator with scrolling messages
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
4 Digit LED Dot Matrix floor indicator
with scrolling messages
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Please read the instructions carefully in order to get
all of the benefits of this device.
INTD0461
Description
Technical characteristics
Wiring - Connection
Programming (FLOOR DISPLAYS)
Programming (INPUT SYSTEM)
Programming (SPECIAL MESSAGES)
Programming (ARROWS)/
Factory Defaults (Reset)
Reference Manual
www.intelco.com.gr
Rev. 1.00 April 2016

Advertisement

loading
Need help?

Need help?

Do you have a question about the INTD0461 and is the answer not in the manual?

Questions and answers

Summary of Contents for INTELCO INTD0461

  • Page 1 Reference Manual INTD0461 4 Digit LED Dot Matrix floor indicator with scrolling messages Page 2 Description  Page 3 Technical characteristics  Page 4 Wiring - Connection  Page 5 Programming (FLOOR DISPLAYS)  Page 6 Programming (INPUT SYSTEM) ...

  • Page 2: General Description

    Up to 8 different control panel communication protocols.  On board starting floor selection via dip switch.  On board communication protocol selection via dip switch.  On board mezzanine floor selection via dip switch.  LCD contrast adjust. INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...

  • Page 3: Specifications

    3 push button user interface for device parameter  programming Current limited led units  0-45°C Operation temperature 10-80% (non condensing) Operation humidity 68.7 x 155.6 x 25.7 mm (H x W x D) Dimensions (External) Weight (Total/w Battery) 150g INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...

  • Page 4: Wiring Connection

    P o w e r s u p p l y inputs positive (+) (12/24 V) A B C D E inputs Common for Arrow UP input ABCDE inputs Arrow DOWN input Figure 1 INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...
  • Page 5 When we press buttons S+E at the same time while we are in a programming condition the device goes a step back to the previous menu or if the device is in the main menu the programming condition terminates giving a long-drawn out beep. INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...
  • Page 6 1-3. To exit from the submenu FL we press the S+E buttons at the same time . The device will give a 2 beep sound and return to the main menu. Figure 2 INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...
  • Page 7 With the buttons E, F we choose one of the systems above and we press the S button to save our choice. The device will save our choice and we will return to the main menu giving a 2 beep sound. Figure 3 INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...
  • Page 8 To exit the submenu of programming the special messages we press S+E buttons at the same time. The device will give a 2 beep sound and return to the main menu. Figure 4 INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...
  • Page 9 Factory default settings are : 0 to 31 for A, B, C, D, E inputs  Binary code for input system  No buzzer for special messages inputs  Moving triangle for arrows inputs  INTELCO ELECTRONICS ISO9001/2008 Rev. 1.00 April 2016...
