- Page 1 SKY TRACK 430 Owner’s Manual User Instructions and Maintenance Manufactured By: IGREEN PTE, LTD. SKY TRACK 430 Portable Patient Lift- User Guide Page 1...
-
Page 2: Table Of Contents
Introducing The Sky Track 430 The SKY TRACK 430 is a highly portable ceiling lift, meaning that it was designed to lift an individual from a pre-installed rail and trolley that has been secured to the building ceiling structures by an authorized IGREEN PTE, LTD. -

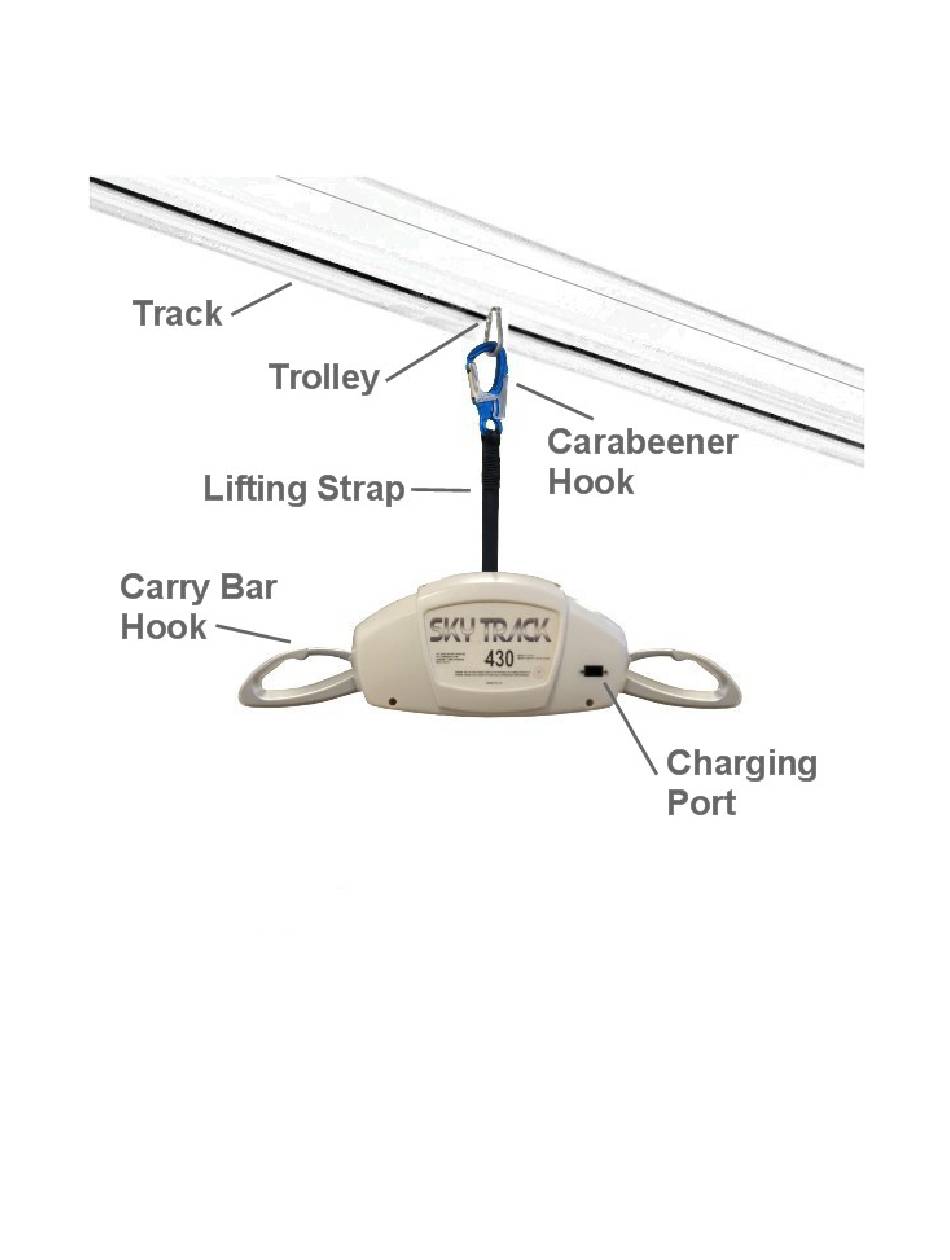

Page 3: Overview Of Sky Track 430 Portable Lift
Be sure that the contents of this manual are completely understood prior to using the SKY TRACK 430 lift. Keep this manual readily available for the user in a safe location with the documents included with the lift and slings. Contents of this manual are subject to change without prior written notice. -
Page 4: Component List
ACCESSORIES: If any additional accessories such as a turntable, or gantry system, have been supplied with the lift please obtain & refer to the instructions included with those accessories. IMPORTANT: Before initial use, the SKY TRACK 430 lift unit must be fully charged. Refer to section titled "... -
Page 5: Detailed Specifications For The Sky Track 430
Atmospheric Pressure: Shipping & Storage: 520 to 1065 h-Pa Temperature: Shipping & Storage: 38F to 115F Humidity: Shipping & Storage: 10% to 80% RH Note: The SKY TRACK 430 lift shall be connected to a 110V AC single phase supply circuit. Page 5... - Page 6 There are no user serviceable parts inside the cover of the SKY TRACK 430. Do not remove cover screws, or open the lift unit in any way, as this will VOID THE WARRANTY.
-
Page 7: Powering The Sky Track 430 Lift On & Off
Remove all curtain material and other items that could be an obstruction prior to performing a transfer. Powering the Sky Track 430 lift ON & OFF There is an ON / OFF switch located directly on the Sky Track 430 Lift. The light on the lifts control panel will turn ORANGE if the batteries are low and need to be charged. -
Page 8: Raising & Lowering The Sky Track 430
UP DOWN Also, located in the middle front side of the SKY TRACK 430, is a panel that has UP and DOWN buttons. When pressing the DOWN arrow button, or the UP arrow button, the lift can be lowered or raised to the correct height for attaching the sling or positioning an individual. -
Page 9: Guiding The Sky Track 430 Along The Track
Guiding The SKY TRACK 430 Along The Track The SKY TRACK 430 can be easily guided along the track once connected to the trolley by simply pushing it by hand. It is recommended that the lift be first lowered to a desired height at which it can easily be pushed along the length of the track by hand. - Page 10 The lift may need to be raised or lowered, or re-positioned along the track in order to accomplish this. Lower the SKY TRACK 430 so that the carry bar hooks are at a height that makes connecting the straps of the sling easy to achieve. Steady the lift with one hand so that it does not accidentally come in contact with the head or body of the person to be lifted.
-
Page 11: Charging The Sky Track 430 Lift
Charging The Lift The batteries of the SKY TRACK 430 should be charged on a regular basis. It is recommended that the lift be charged after each use, however, do not leave the lift on charge at all times when not in operation. - Page 12 Step 1) Accustom yourself with the basic parts of the charging system. Step 2) Place the lift and charger on a surface such as a table or counter top. The surface must be clean and dry, and away from the reach of children. Step 3) Turn the lift OFF as described in the section titled “Turning the lift ON/OFF”.
-
Page 13: Emergency Lowering
It is imperative that the SKY TRACK 430 is charged for at least an hour, and the lift put into use. However, overnight charging is highly recommended. Caution: Do not allow the batteries to become discharged below the low battery alarm, in the event this is allowed it will decrease overall battery life and performance. -
Page 14: Emergency Stopping And Shut-Off
Emergency Stopping and Shut-off The lift will normally shut off if the lift has not been in use for 2 minutes. Should a situation present itself such that the lift will not respond to the hand control buttons or on any of the normal operational control RED Emergency stop switch buttons on the front of the lift then the should be switched to the... -
Page 15: Fault Indicators & Solutions
Positioning the carry bar hooks upwards The SKY TRACK 430 portable ceiling lift has two carry bar hooks that may be turned upwards for storing or transporting making it more compact. Be sure to lower both carry bar hooks prior to using the lift. - Page 16 Complete the visual inspection as noted in the “Monthly” section above. Lift checked and passed. Any required repairs completed. This section to be only completed by a qualified service technician as authorized by IGREEN PTE, LTD CAUTION: ONLY SLINGS AUTHORIZED BY IGREEN PTE, LTD ARE TO BE USED WITH THIS LIFT.
- Page 17 Be sure to have this piece of equipment serviced on a regular basis as described in the General Inspection and Maintenance Section SERVICE INFORMATION: Contact a certified/authorized IGREEN PTE, LTD dealer for service: Please Record All Company Information Below: ___________________________________________________________...
-
Page 18: Service History
Printed Name Signature Company: _____________________________________________________________ Remarks & Any Service Performed: Date: _______________________ Time: ________________________ Service Type: Periodic Inspection Monthly Inspection 6 Month Inspection Repair Yearly Inspection Other:_________ _____________________________ _________________________ Completed By: Printed Name Signature Company: _____________________________________________________________ Remarks & Any Service Performed: Date: _______________________ Time: ________________________ Service Type: Periodic Inspection... -
Page 19: Warranty
90 days after original purchase date. 3) This guarantee shall be void if the equipment is not serviced by IGREEN PTE, LTD or its authorized service agents in accordance with the manufacturer’s recommendations or if any unauthorized person carries out works on the equipment.
