Summary of Contents for PELEKIS INTD1012

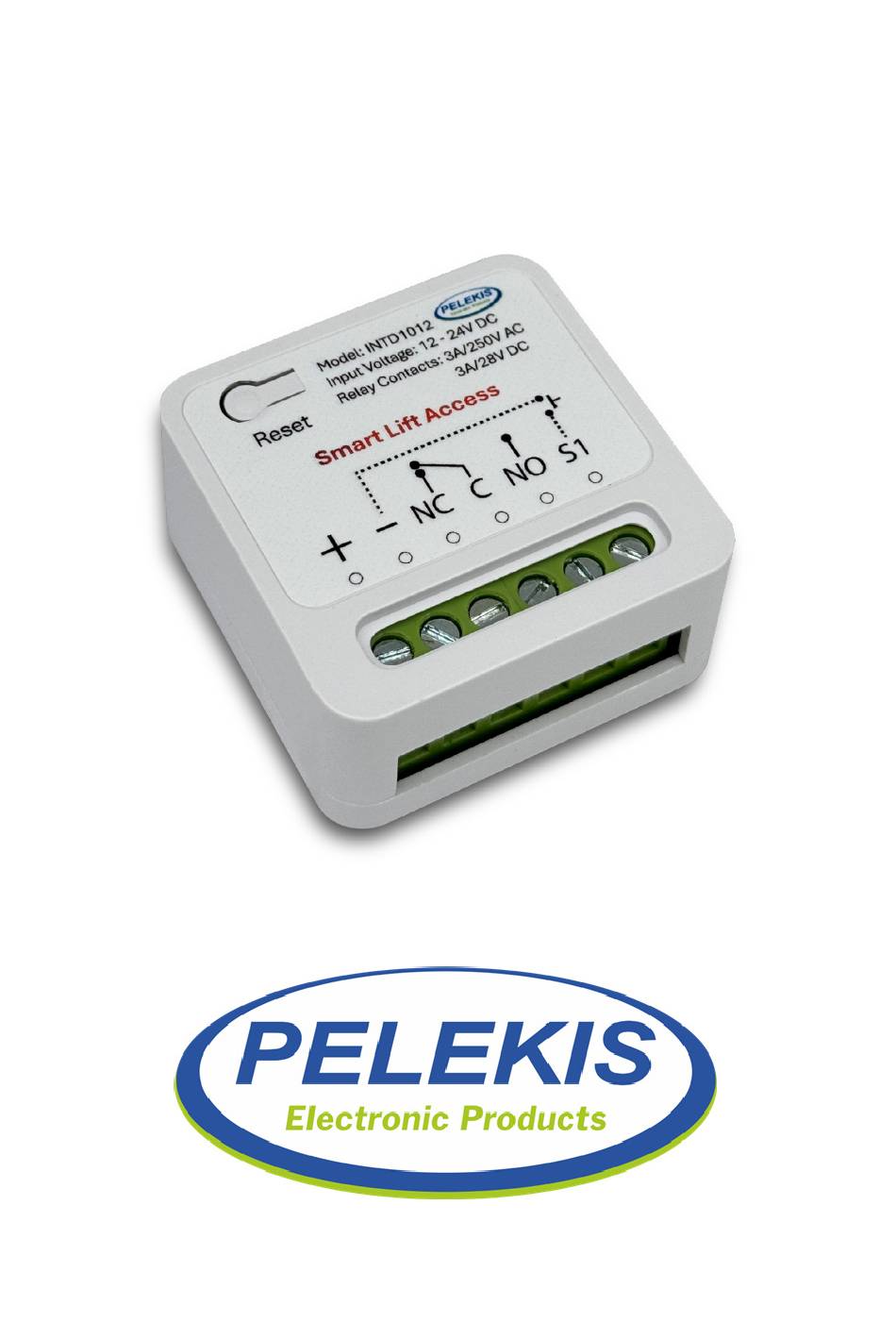

- Page 1 Smart Lift Access Switch...
-
Page 2: Table Of Contents
Contents GENERAL WARNINGS DESCRIPTION MAIN FEATURES Smart Lift Access Control INSTALLATION Tips for the Installation Connecting the Smart Lift Access Control Using the App & Finding the Access Point on App Adding the Access Point & Credentials Changing the Device Information Complete Setup &... -
Page 3: General Warnings
GENERAL WARNINGS GENERAL REMARKS Please pay close attention to the warnings in this section, as they provide important guidelines for safe installation, proper use, and maintenance of the product. The appliance must be used exclusively for its intended purpose. Pel- ekis Electronics cannot be held responsible for any damage resulting from improper use. -
Page 4: Description
Built for reliability and easy integration, the Smart Lift Access Control Device enhances security while providing convenience in managing elevator access. Smart Lift Access App. Smart Life Art. INTD1012 elekis mart ccess ontrol... -
Page 5: Main Features
MAIN FEATURES • Remote Control Access: Effortlessly control the elevator ac- cess via your smartphone, allowing you to grant access to author- ized users from anywhere in the world. • Countdown Timer: Perfect for scheduling temporary access, such as for deliveries or events. Set a timer to enable elevator ac- cess only for the duration required, automatically disabling it after- ward. -
Page 6: Smart Lift Access Control
Smart Lift Access Control Β Connect +12VDC or +24VDC. Connect (-) 0V. Relay Normally Close Contact (N/C). Relay Common Contact (COM). Relay Normally Open Contact (N/O). Optional short it with ground (Terminal B) and test that Relay works. Push Button for Initial Setup or Reset. elekis mart ccess... -
Page 7: Installation
INSTALLATION NC C NO S1 Tips for the Installation Read the Manual First: Before beginning the installation, read through the entire manual to understand the device’s features, wir- ing instructions, and safety precautions. Choose the Right Location: Ensure it is located where it can receive a strong Wi-Fi signal. -
Page 8: Connecting The Smart Lift Access Control
INSTALLATION Connecting the Smart Lift Access Control Device Place the Smart Lift Access Control in a location where it can re- ceive a strong Wi-Fi signal. Connection Procedure: 1. Wiring the Device: • Wire your relay accordingly to Terminals C, D, and E (N/C,COM,N/O). -
Page 9: Using The App & Finding The Access Point On App
INSTALLATION Using the Mobile Application: • Open the “Smart Life” app on your mobile device. • Tap on icon and press “Add New Device” within the app. 5. Finding the Device: • The device should appear on your mobile screen for selection. Note: Make sure that the Red LED under the Button of the Defice Turn ON and Turn OFF. -
Page 10: Adding The Access Point & Credentials
INSTALLATION 6. Adding the Device: • Tap on the device which appeared on your screen to connect. Note: In case your mobile is al- ready connected on the Wi-Fi, automatically the Device will ask to connect to the same Network. 7. -
Page 11: Changing The Device Information
INSTALLATION 8. Change the Device Information: • By pressing the Pen Symbol next to the Device, you can change the Device Name. 9. Save the changes: • Type your desired Device Name, in order to make it easier for you to recognice which Access Point control. -
Page 12: Complete Setup & Configure Modes
INSTALLATION 10. Complete Setup and Configure Modes: • From now on, you can control with On and Off the Access of the de- sired point. • By pressing the Icon “Timer” you can add features as Countdown, Schedule and Inching. 11. -
Page 13: Schedule Routine Mode
INSTALLATION 12. Setup your Schedule Routine: • Adjust your desired Schedule. It can be only Working Days or only Weekends or Everyday or Specific Days. Example: Your office is open only from 7:00 AM to 3:00 PM. The rest hours the Point will be Locked. 12. -
Page 14: Share Access With Others
Sharing Access with Others • To allow another person to control the relay, the initial user must share a unique code from the app. • The invited person needs to click on the shared link. • After this step, both users can control the relay. •... -
Page 15: Troubleshooting
Troubleshooting Common issues and solutions Problem Troubleshooting 1. Ensure that the device is connected to the The device does correct 2.4GHz network not connect to 2. Check the Wi-Fi password for correctness Wi-Fi. 3. Restart the device and try the pairing process again. Mobile app Ensure your device is powered and in pairing shows no device... -
Page 16: Frequently Asked Questions
Press and hold the Reset Button for 5 seconds to reset the device. This will put it back into pairing mode. Contact Information For any product quality issues or technical support, please con- tact us at: • Email: info@pelekis.tech • Website: www.pelekis.tech elekis mart ccess...
