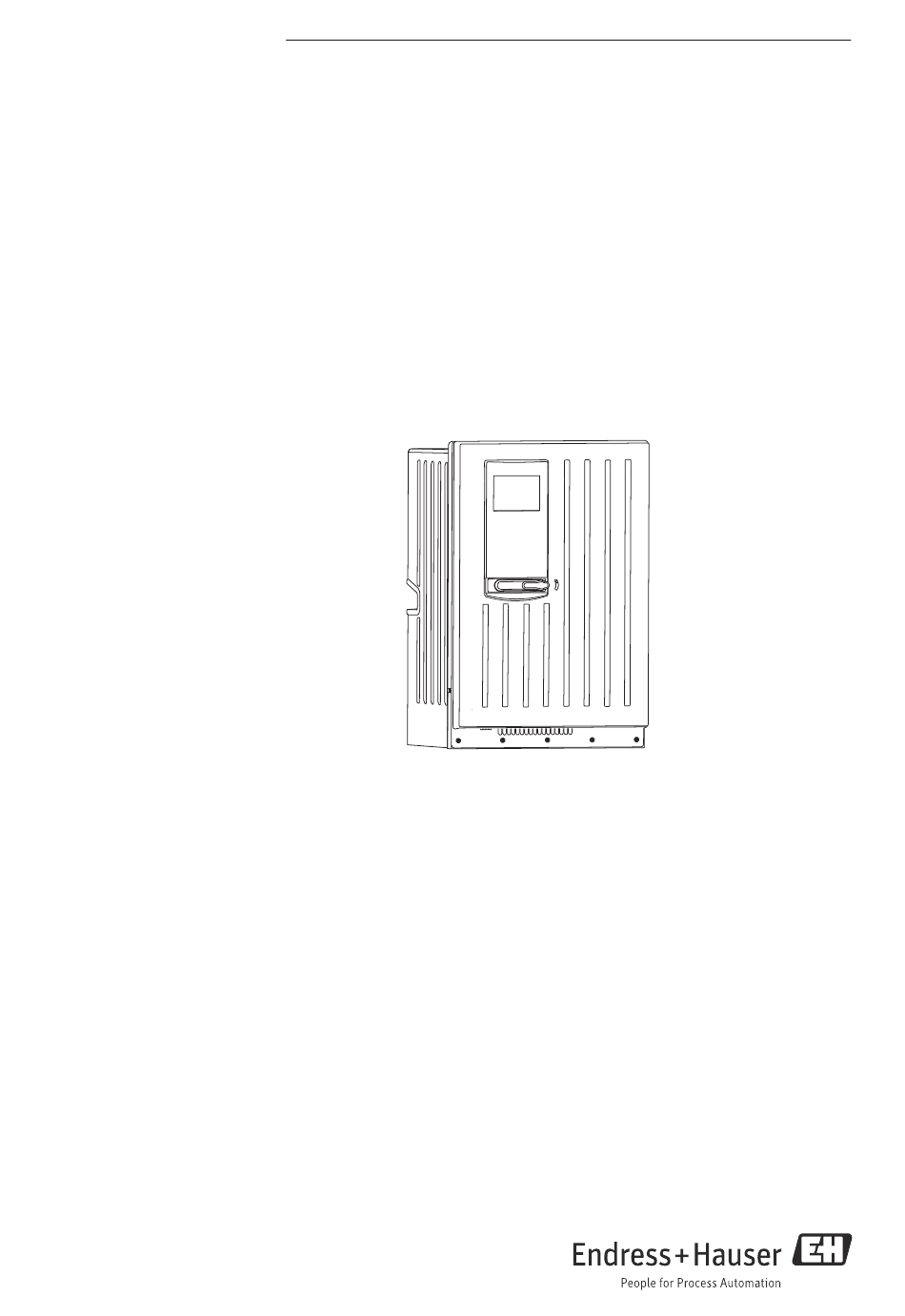

Brief Operating Instructions
Liquiline System CA80NO
Colorimetric analyzer for nitrite
These instructions are Brief Operating Instructions; they are not
a substitute for the Operating Instructions pertaining to the
device.
Detailed information about the device can be found in the Ope-
rating Instructions and other documentation:
• www.endress.com/device-viewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

loading
Need help?

Need help?

Do you have a question about the Liquiline System CA80NO and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Liquiline System CA80NO

Summary of Contents for Endress+Hauser Liquiline System CA80NO

  • Page 1 These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Detailed information about the device can be found in the Ope- rating Instructions and other documentation: • www.endress.com/device-viewer • Smart phone/tablet: Endress+Hauser Operations App...
  • Page 2 Liquiline System CA80NO Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App Endress+Hauser...
  • Page 3 Liquiline System CA80NO Endress+Hauser...

  • Page 4: Table Of Contents

    Table of contents Liquiline System CA80NO Table of contents 1 Document information............5 1.1 Warnings .

  • Page 5: Document Information

    Liquiline System CA80NO Document information Document information Warnings The structure, signal words and color coding of the warnings follow the specifications of ANSI Z535.6 ("Product safety information in product manuals, instructions and other collateral mate- rials"). Structure of the safety sym- Meaning This symbol alerts you to a dangerous situation.

  • Page 6: Documentation

    Liquiline System CA80NO Documentation The following instructions complement these Brief Operating Instructions and are available on the product pages on the internet: • Operating Instructions for Liquiline System CA80NO – Device description – Commissioning – Operation – Software description (excluding Memosens) –...

  • Page 7: Basic Safety Instructions

    Service Organization. Designated use The Liquiline System CA80NO is a wet-chemical analyzer for the almost continuous determina- tion of nitrite concentrations in liquid media. The analyzer is designed for use in the following applications: •...

  • Page 8: Operational Safety

    Basic safety instructions Liquiline System CA80NO Operational safety ‣ Prior to commissioning the entire measuring point, check that all connections are correct. Make sure that electric cables and hose connections are not damaged. ‣ Do not commission damaged products. Protect them against unintentional startup. Label and identify the damaged product as defective.

  • Page 9: Incoming Acceptance And Product Identification

    Liquiline System CA80NO Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance 1. Make sure the packaging is not damaged.  Inform your supplier of any damage to the packaging. Please keep the damaged packaging until any issues have been resolved.

  • Page 10: Identifying The Product

    Incoming acceptance and product identification Liquiline System CA80NO Compare the data on the nameplate with your order. 3.2.2 Identifying the product The order code and serial number of your device can be found in the following locations: • On the nameplate •...

  • Page 11: Installation

    Liquiline System CA80NO Installation Installation CAUTION Incorrect transportation or installation can damage the device and cause injury ‣ Lift the device by the recessed grips. Installation conditions 4.1.1 Dimensions A0028160 Fig. 1: Liquiline System CA80 with door, dimensions in mm (inch) A0028159 Fig.
  • Page 12 Installation Liquiline System CA80NO 654 (25.74) A0028161 Fig. 3: Liquiline System CA80 with base, dimensions in mm (inch) 4.1.2 Holder unit Mounting materials for securing the device to a wall (screws, wall plugs) are not included in the scope of delivery and must be provided by the client.
  • Page 13 Liquiline System CA80NO Installation a0021967 Fig. 5: Securing the holder unit on the housing a0021955 Fig. 4: Holder unit dimensions. Engineering unit mm (in). Endress+Hauser...
  • Page 14 Installation Liquiline System CA80NO 4.1.3 Spacing required for mounting ≥ 330(12.99) a0021997 Fig. 7: Maximum opening angle a0021961 Fig. 6: Minimum spacing required for mounting. Engineering unit mm (in). Endress+Hauser...
  • Page 15 Liquiline System CA80NO Installation 4.1.4 Hooking the analyzer into the wall holder unit a0021982 Fig. 8: Hooking into the wall holder unit 1. Hook the analyzer into the wall holder unit. 2. Secure the two top parts of the wall holder unit with the screw supplied.

  • Page 16: Base Mounting

    Installation Liquiline System CA80NO 4.1.5 Base mounting a0023032 Fig. 9: Securing the base 1. Have two people lift the analyzer and place it on the base. Use the recessed grips. 2. Screw the base to the analyzer using 6 screws.

  • Page 17: Mounting Location

    Liquiline System CA80NO Installation 4.1.6 Mounting location Note the following when mounting the device: • Make sure that the wall has sufficient load-bearing capacity. • Mount the device on a level surface (with additional base). • Protect the device from additional heating (e.g. from heaters).
  • Page 18 Installation Liquiline System CA80NO Hose connection diagram optional cooling A0027801 Fig. 10: Single-channel device Connect reagent RK to R2. S1 Standard 1 Sample W1 Drain Collecting vessel Cu Cell Drain Cleaner 2 - 7 Syringe RK Reagent RK Endress+Hauser...
  • Page 19 Liquiline System CA80NO Installation optional cooling A0027802 Fig. 11: Two-channel device Connect reagent RK to R2. S1 Standard 1 Sample W1 Drain Collecting vessel Cu Cell Drain Cleaner 2 - 7 Syringe RK Reagent RK Endress+Hauser...

  • Page 20: Post-Installation Check

    Installation Liquiline System CA80NO Foundation plan for version with base 624 (24.57) 530 (20.87) a0021043 Fig. 12: Foundation plan Fasteners (4 x M10) Dimensions of Liquiline System CA80 Post-installation check • After mounting, check all the connections to ensure they are secure and leak-tight.

  • Page 21: Electrical Connection

    Liquiline System CA80NO Electrical connection Electrical connection WARNING The device is live! Incorrect wiring can result in injury or fatality ‣ The electrical connection may only be established by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions they contain.

  • Page 22: Connection Compartment In The Controller Housing

    Electrical connection Liquiline System CA80NO 5.1.3 Cable terminals Plug-in terminals for Memosens and RS485 connections a0012691 a0012692 a0012693 Fig. 13: Press the screwdriver against Fig. 14: Insert the cable until the limit Fig. 15: Remove the screwdriver (closes the clip (opens the terminal)
  • Page 23 Liquiline System CA80NO Electrical connection BASE-E a0023129 Fig. 19: Basic module E Base-E Analyzer interface Dummy cover Module cover Endress+Hauser...
  • Page 24 Electrical connection Liquiline System CA80NO 5.2.1 E basic module 24 VDC Power a0016535 Fig. 20: E basic module Indicator LEDs SD card slot Voltage connection Slot for the display cable Alarm relay connection Service interface Power supply for digital fixed cable sensors...

  • Page 25: Connecting The Sensors

    Liquiline System CA80NO Electrical connection Connecting the sensors Only use terminated genuine cables. a0003350 Fig. 22: Memosens data cable CYK10 Connecting the end sleeves of the sensor cable to the E basic module The outer shield of the cable is grounded by means of the metal gland under the E basic module.
  • Page 26 Electrical connection Liquiline System CA80NO 5.4.1 Optional modules Digital inputs and outputs DIO module a0019917 a0019836 Fig. 24: Module front Fig. 25: Wiring diagram Current inputs Module 2AI a0016184 a0015761 Fig. 26: Module front Fig. 27: Wiring diagram Endress+Hauser...
  • Page 27 Liquiline System CA80NO Electrical connection Current outputs Module 2AO Module 4AO – – – – – – a0016179 a0015759 a0016178 a0015760 Fig. 28: Module front Fig. 29: Wiring diagram Fig. 30: Module front Fig. 31: Wiring diagram Relays Module 2R...

  • Page 28: Connecting Communication

    Electrical connection Liquiline System CA80NO Connecting communication 5.5.1 Module 485 a0016173 a0015762 Fig. 36: Bus connections on module 485 Fig. 37: Wiring diagram for module 485 Optional to supply power to an external terminating resistor for bus termination LEDs on front of module...
  • Page 29 Liquiline System CA80NO Electrical connection DIP switches on front of module Factory setting Assignment 1-128 Bus address (--> "Commissioning/Communication") Write protection: "ON" = configuration not possible via the bus, only via local operation Service If the switch is set to "ON", the user settings for Ethernet addressing are saved and connec- tion settings programmed into the device at the factory are activated: IP address=192.168.1.212, Subnet mask=255.255.255.0, Gateway=0.0.0.0, DHCP=Off...

  • Page 30: Hardware Settings

    Electrical connection Liquiline System CA80NO LEDs on front of module Name Color Description Power Supply voltage is applied and module is initialized Bus failure Not used System failure System failure Communication Modbus message sent or received DIP switches on front of module...
  • Page 31 Liquiline System CA80NO Electrical connection ‣ Using a suitable tool, such as a tweezers, set all 4 DIP switches to the "ON" position.  The internal terminating resistor is used. a0016306 Fig. 41: Structure of the internal terminating resistor External terminating resistor Here, leave the DIP switches on the module board in the "OFF"...

  • Page 32: Guaranteeing The Degree Of Protection

    Electrical connection Liquiline System CA80NO Guaranteeing the degree of protection Only the mechanical and electrical connections that are described in this manual, and are necessary for the required, designated application, may be established on the device supplied. ‣ Please play close attention when performing the work as degrees of protection individually...

  • Page 33: Operation Options

    Liquiline System CA80NO Operation options Operation options Overview 6.1.1 Display and operating elements Navigator (jog/shuttle and press/hold func- tion) Soft keys (function depends on the menu) Display (red background in the event of an A0027792 Fig. 44: Overview of operation error) 6.1.2 Display...

  • Page 34: Access To The Operating Menu Via The Local Display

    Operation options Liquiline System CA80NO Access to the operating menu via the local display 6.2.1 Operation concept MODE DIAG HOLD a0023169-de Fig. 47: Turning the navigator: moving the cursor in the a0027794-de Fig. 46: Pressing the soft key: selecting the menu directly...

  • Page 35: Configuration Options

    Liquiline System CA80NO Operation options 6.2.2 Locking or unlocking operating keys Locking operating keys 1. Press the navigator for longer than 2 s.  A context menu for locking the operating keys is displayed. You have the choice of locking the keys with or without password protection. "With password"...
  • Page 36 Operation options Liquiline System CA80NO 6.3.3 Numerical values • You are changing a variable. • The maximum and minimum values for this variable are shown on the display. • Set a value within this range. • Example: Menu/Operation/Display/Contrast 6.3.4 Actions •...
  • Page 37 Liquiline System CA80NO Operation options • Example: Menu/Setup/Basic setup analyzer/Device tag 6.3.6 Tables • Tables are needed to map mathematical functions. • You edit a table by navigating through rows and columns with the navigator and changing the values of the cells.

  • Page 38: Commissioning

    Commissioning Liquiline System CA80NO Commissioning Function check WARNING Incorrect connection, incorrect supply voltage Safety risks for staff and incorrect operation of the device ‣ Check that all connections have been established correctly in accordance with the wiring diagram. ‣ Make sure that the supply voltage matches the voltage indicated on the nameplate.
  • Page 39 Liquiline System CA80NO Commissioning If you wish to configure your most important input and output parameters in the "Basic setup analyzer", proceed as follows: ‣ Configure the current outputs, relays, limit switches and device diagnostics using the appro- priate submenus.
  • Page 40 www.addresses.endress.com...
