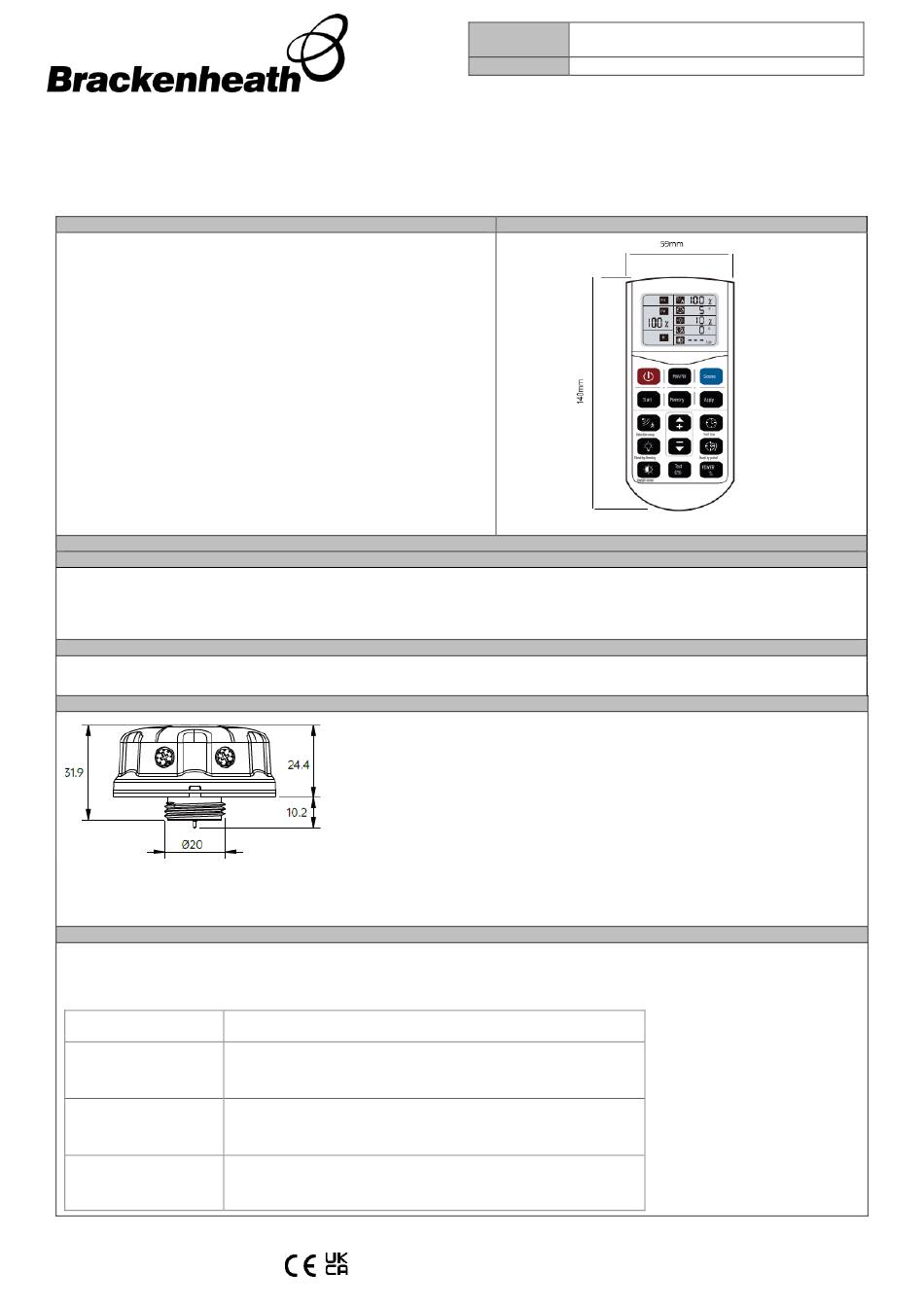

BRACKENHEATH BR3518 Manual

LED C
CT3 Power Selectable Highbay MW sensor and Remote control
Please read the manual carefully before installation and keep it for future reference
Features
•
LCD Display screen
•
Easy to select parameter functions
•
Manually dim the highbay
•
Additional accessories for the Highbay range can be purchase separately;
BR3515 – RS PRO CCT3 LED Highbay 100-200W Adjustable
BR3516 - RS PRO 3Hr Plug In Emergency Pack
BR3519 - RS PRO Remote Control for EM Pack
Safety Instructions
•
These instructions should be read carefully and retained after installation for future reference and maintenance
•
Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
•
This Product is IP20 rated
Note: This remote control will only work with RS PRO BR3517 Plug-in Microwave Sensor.
Environmental Instructions
This product may contain substances that can be hazardous to the environment if not disposed of properly. Electrical and electronic equipment should never
be disposed of with general household waste but must be separated for its correct treatment and recovery. Where possible recycle your packaging.
BR3517 Plug In Microwave Sensor (sold separately)
anticlockwise
•
Present the BR3517 sensor to the hole and screw-in securely
•
The BR3517 Microwave sensor can set the hold time from 5 seconds to 10 minutes and the Stand-by dim level to 0%/10%/30%/50% using the two
dials on the sensor
Programming Instructions
•
Insert 2 x AAA batteries (not included)
•
Press the Stand-by button to switch on the remote
•
Adjust the sttings as requiered (see table below)
Detection area
Hold Time
Daylight Threshold
Standby Dimming Level
INS0566 V1.0 01/24 NPD 0805
•
Using a screwdriver remove the blanking piece from the centre of the lens by unscrewing
25%/50%/75%/100%
5s/30s/1min/3min/5min/10min/20min/30min
Rotating switch:5s/1min/5min/10min
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux /
200Lux/250Lux/300Lux/350Lux/400Lux/Disable
Remote Control: 10%/20%/30%/50%
Rotating switch: 0%/10%/30%/50%
EU: Unit 16 Ashbourne Ind. Est. Ashbourne Co. Meath A84 W972 Ireland
CCT3 Highbay Microwave Sensor Remote
BR3518
Control
BR3517 Microwave sensor for LED Highbay
Dimensions
UK: Panattoni Park Luton Road Chalton Bedfordshire LU4 9TT
Deta Electrical Company Limited
deta.co.uk
Technical Helpline: +44(0)1582 544 548
