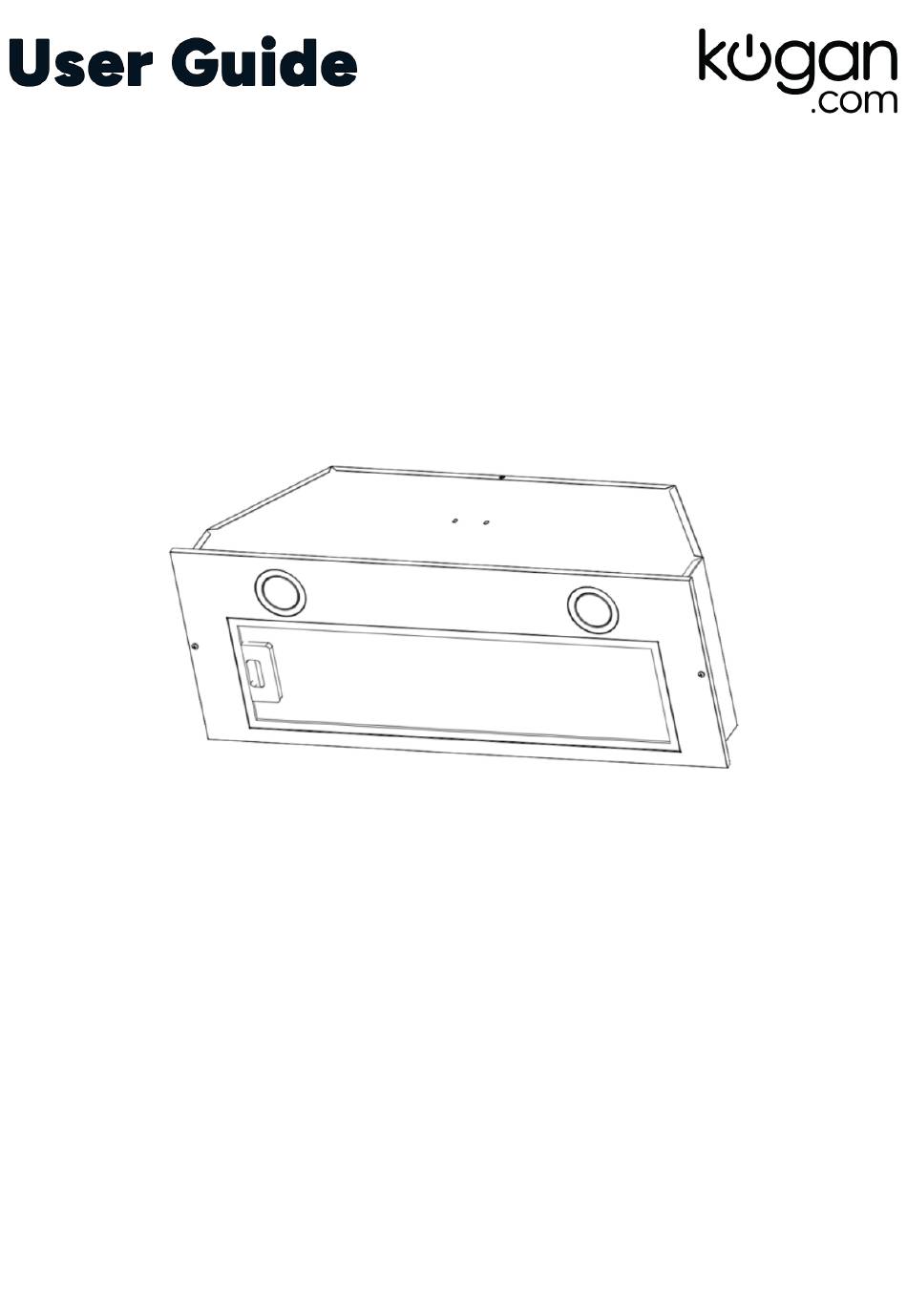

- Page 1 Rangehood Stainless Steel (52cm) KAM52RHVAHA...
-
Page 3: Safety And Warnings
Read this user guide thoroughly before installation and use. Keep it in a safe place for future reference. • Kogan.com is not liable for any damage caused by incorrect or improper installation. • This rangehood can only be installed in Ducted Mode (venting fumes outside). - Page 4 • Do not use open flame or allow oil to collect beneath the rangehood. • If the power cord is damaged, it must be replaced by Kogan.com, an authorised service agent, or a qualified electrician to avoid hazards. • If the plug or cord is damaged, cease use immediately and contact help.Kogan.com for support.
- Page 5 General Safety Warnings • Do not inspect or remove filters while the rangehood is in operation. • Avoid touching the light bulbs immediately after use, as they may be hot. • Do not operate the rangehood with wet hands. • Do not flambé...
- Page 6 Overview This rangehood is designed for ducted installation only. It draws in kitchen air containing fumes and odours, filters out grease, and expels the air outside through an exhaust duct. Roof cap Duct (for vertical discharge) Cabinet Wall cap Rangehood Duct (for horizontal discharge) 650-750mm...
-
Page 7: Installation
Before installation, turn off power at the main switch to prevent electrical hazards. • If the power cord is damaged, it must be replaced by Kogan.com, an authorised service agent, or a qualified electrician to avoid safety risks. Cease use immediately and contact help.Kogan.com for support. -
Page 8: Ducting Installation
Ducting Installation Before securing the rangehood, the outlet exhaust duct must be installed for proper air evacuation. Ensure the ducting meets the following requirements: • Keep the duct as short as possible to maximise efficiency. • Minimise bends, with a maximum bend angle of 90° to reduce airflow resistance. •... - Page 9 Fitting Under Wall Unit 1. Drill a 165mm hole in the wall unit to accommodate the exhaust duct. 2. Check the position of the power outlet and determine the cable routing. If necessary, drill an additional hole in the wall unit for the power cable. 3.
-
Page 10: Operation
Operation • This rangehood does not have a built-in power button or control panel. The only way to turn the appliance on or off is by controlling power at the electrical outlet or wall switch. • For convenience and ease of use, it is recommended that a licensed electrician install a dedicated power outlet or switch near the installation area, allowing for easier operation of the rangehood. -
Page 11: Cleaning And Care
Cleaning & Care Prior to any maintenance, cleaning operation, ensure the power is disconnected. Cleaning the Screen Filter • Press the release button and remove the screen filter. • Place the screen filter into the dishwasher with detergent, set the temperature below 60°C. - Page 12 Lamp Replacement This rangehood requires two LED lamps for operation. If a lamp becomes faulty, it must be replaced with a compatible LED of the same specifications. Warning: • Turn off the electrical supply before performing any maintenance. • The bulbs are not covered under warranty. •...
- Page 13 Cleaning the Rangehood Surface Stainless steel is durable and easy to maintain, but regular care is essential to preserve its appearance and performance. Follow these cleaning guidelines to prevent buildup and potential damage. General Cleaning Tips: • Use hot water with mild soap or detergent for routine cleaning. •...
-
Page 14: Specifications
Specifications Rated Voltage 220-240V~ Rated Power Frequency 50Hz Light Power 2×Max. 2W round LED lamp Motor Power 1×200W or 1×300W Diameter of Outlet Adapter 150mm Lamps Normal LED lamp CTH06-55 (D1) Max wattage Voltage range 220V Dimensions Ø70mm Dimensions... - Page 15 Notes...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
