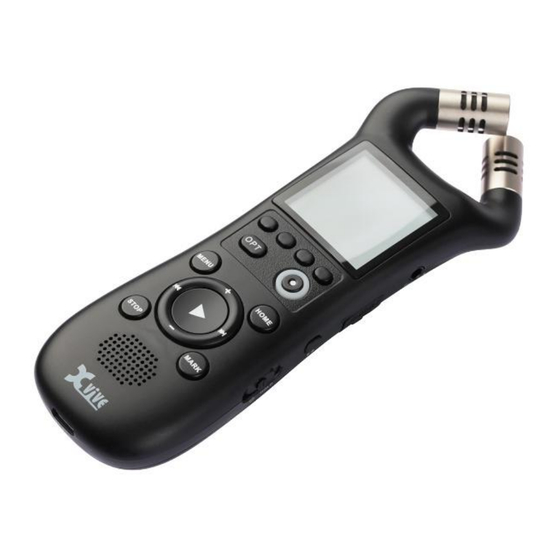

Xvive XV1-R User Manual

Portable stereo recorder
Hide thumbs Also See for XV1-R:
Table of Contents

Advertisement

Quick Links

Download this manual
XV1-R Portable Stereo Recorder
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XV1-R and is the answer not in the manual?

Questions and answers

Related Manuals for Xvive XV1-R

Summary of Contents for Xvive XV1-R

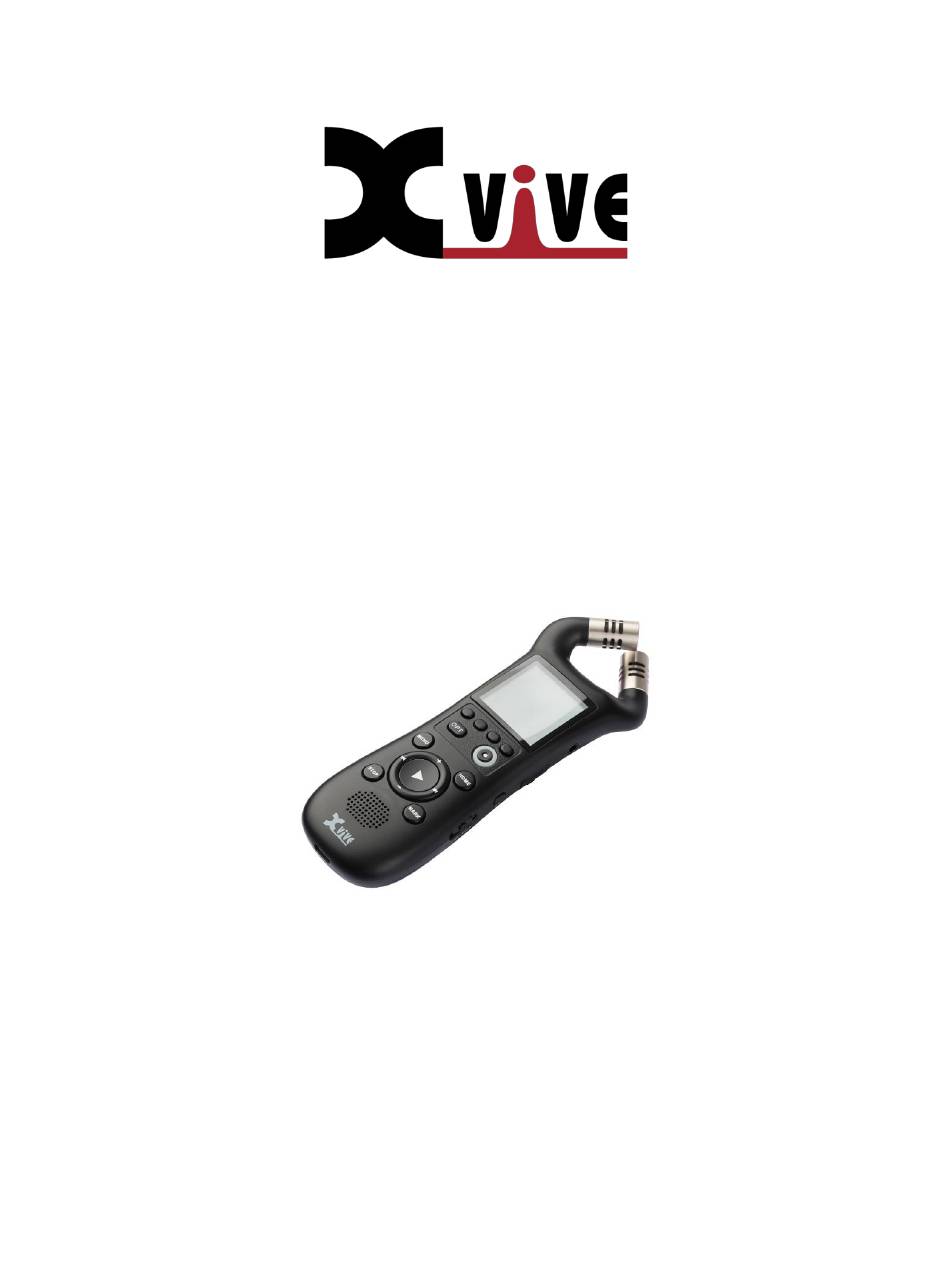

  • Page 1 XV1-R Portable Stereo Recorder USER GUIDE...

  • Page 2: Basic Workflow

    Basic Workflow Layout Power Turn the device on by holding the power switch in the down position for 2 seconds. When the device is on, holding down the power switch again will shut down the system. See ‘Power Switching’ for more.
  • Page 3 Recording 1. Press RECORD to navigate to the recording screen. 2. Press RECORD again to begin recording. When the record button LEDs are orange, the device is recording. 3. Press STOP to complete the recording. 4. Press HOME to navigate to the playback screen. The last recorded file will be opened. Playback 1.
  • Page 4 Overdub 1. Open a WAV file in the playback screen. 2. (Optional) Seek to any point in the file to overdub there. 3. Press the overdub icon in the button bar to open the overdub screen. 4. See ‘Recording’ for more info on how to record files. Note: Auto-level, pre-record, and auto-record are not available in overdub mode Marks In playback...

  • Page 5: Deleting Files

    ● Press PREV/NEXT while in this dialog to navigate to the previous/next mark. Pressing stop will cause a prompt to appear, asking the user to save their changes. ● Press the confirm icon , or PLAY, to save any changes made to the marks in the current file.

  • Page 6: User Interface

    User Interface Status Bar The status bar is present in all menus, and displays the status of the SD card, the current menu name, and the battery level. The SD card status is shown in the top left corner. In order, the symbols are: 1.

  • Page 7: Recording Screen

    At 1-3 bars, the device will operate as normal. After 0 bars, there may be restrictions. See ‘Battery Levels.’ Multi-Button Bar The bottom of the screen contains symbols showing contextual actions or values for quick-access parameters. Pressing the button underneath a symbol will perform the corresponding action (e.g., deleting a file, or switching to another menu).
  • Page 8 E. File number: The recording will be written to a file ending with this number (e.g., recording a WAV file with “#0002” will create a file “XV_0002.wav”) This number is incremented from the highest-numbered file currently in the XVIVE folder. For example, if XV_0100.wav is found in the folder, the next file will be named XV_0101.wav, regardless of whether files 1-99 are present.
  • Page 9 H. Input gain slider: Shows the gain applied to the indicator, or ‘A’ if auto-level is used. Profile name: The name of the currently selected profile, followed by an asterisk if the profile has been modified. The multi-button bar in this menu contains: Profile: Switch to the profile select screen.

  • Page 10: Playback Screen

    Playback Screen The playback screen allows the user to view and play audio files on the SD card. This is often the first screen that appears when the device is powered on, and can be navigated to at any time by pressing HOME.
  • Page 11 A. Output audio meter: The metered signal is the content of the audio file and is unaffected by the system volume. B. Playback bar: This shows the current position of playback. C. The length of the selected file. D. System volume slider. E.

  • Page 12: Settings Menu

    2. No action. 3. Playback rate parameter: Applies a time-stretch to the audio. Test tone: Press once to play a test tone through the LINE OUT, and press again to end. The test tone does not play on the speaker. Settings Menu Pressing the MENU button will open the Settings Menu, which contains a number of sub-menus to change parameters, interact with the file system, and more.

  • Page 13: Recording Profiles

    1. Profile (Submenu) See Recording Profiles. 2. Effects (Submenu) See Recording Effects. 3. Format (WAVF32, WAV24, AAC-HBR, AAC-MBR, AAC-LBR, HE-AAC) See Recording Formats. 4. Samplerate (24 kHz, 44.1k, 48kHz, 96kHz) High sampling rates offer higher quality audio, but take up considerably more storage space.
  • Page 14 Selecting a profile sets all recording effects and settings (excluding time limit and plugin power) to the default values of the profile. If any of these settings are modified an asterisk (*) will appear beside the name of the profile on the record screen. The profile descriptions and settings are as follows: 1.
  • Page 15 Recording Formats 1. WAVF32 32-bit float WAV Lossless, maximum quality recording format. When using float recordings, post-processing tools are able to recover audio that would be ‘clipped’ in other formats. This process is called normalization, and can be accomplished with a variety of programs. 2.
  • Page 16 1. Compressor An effect that reduces the range of volume of the signal. This can be useful for voice recordings where the speaker may change in distance from the mic, such as meetings or lectures. 2. Limiter (On/Off) This effect temporarily reduces gain to prevent clipping. May be useful for preserving loud noises in quiet environments.
  • Page 17 In this menu, all files found in the ‘/XVIVE’ folder in the SD card are shown. When a file is selected, pressing PLAY or NEXT will open the file for playback. The last file opened will have an asterisk (*) next to the file name.
  • Page 18 2. Brightness (10% - 100%, increments of 10%) Sets the brightness of the backlight and the record button LEDs. 3. Power Off (1m, 5m, 10m, 15m, 30m, 60m) The amount of time to wait to automatically power off when the device is idle. This will not occur when recording is active or when plugged into USB power.
  • Page 19 Checking the card is able to detect errors in the file system. These errors are not fatal, and the card should still be readable by most tools, but for the best performance, it is recommended that any discovered issues are repaired. When checking or formatting the card, a prompt is first given to confirm or cancel.
  • Page 20 File Info This menu is accessible from the file listing menu or from the playback screen through the icon. When opened, information is displayed for the file that was selected in the previous menu. Use the PREV/NEXT buttons to navigate between files. The information displayed, from top to bottom, is: 1.
  • Page 21 Delete current file. The user is prompted to confirm. Return to the previous screen.

  • Page 22: Power Switching

    System Power Switching The power switch is momentary on one side and latching on the other. The latching side locks the UI so that other button presses are ignored. See ‘UI Lock.’ Further discussion relates to the momentary side. It normally takes about 2 seconds of holding for the power to turn on. The LEDs on the record button will show green, and the power button can be released.

  • Page 23: Battery Levels

    ● Orange: The device is actively recording. ● Flashing Red: Clipping warning. The audio input or recorded file is clipping. ● Green: The device is playing back an audio file. ○ This colour is also used during the first stage of the device boot. ●...
  • Page 24 Normal Runtime Mode (Recorder) USB connection in runtime mode will have the host computer web browser request the user to go to the product landing page. (Landing page functionality is provided by browsers implementing WebUSB, like Chrome.) USB Mass Storage Mode (Card Reader) In this mode, the SD card acts as a storage drive for the host computer.
  • Page 25 SD Cards All SD cards are partitioned with a valid MBR (includes partition table) by the card manufacturer, and XV1-R requires a valid MBR. The first FAT type partition in the MBR partition table will be the active file system partition.

  • Page 26: Real Time Clock

    Real-Time Clock The user will be prompted to set the real-time clock (RTC) on first power-up. The RTC allows accurate date stamps to be applied to created files. A capacitor holds enough charge to maintain the RTC for a few minutes without batteries, allowing the batteries to be changed without having to reset the RTC.

  • Page 27: Factory Test Mode

    Test mode is intended for factory usage to verify basic functionality of each unit. This mode is accessed by holding down STOP and MARK while powering on the device. See the document ‘XV1-R Factory Programming and Test’ for further information.

  • Page 28: Specifications

    Specifications Supported SD Cards MicroSD to 2GB SDHC to 32 GB SDXC to 128GB Inputs Microphones: 130dB SPL max Mic/Line In: 3.5mm stereo jack 3.1V plug-in power Tip: left channel Ring: right channel Sleeve: ground Output Line/headphone stereo 3.5mm jack WAV Recording 44.1kHz, 48kHz, or 96kHz sample rate;...
  • Page 29 WAV files: Formats: WAVE, RF64, or BW64 Bit depth (PCM): 8, 16, 24, 32-bit Bit depth (float): 32, 64-bit M4A files Formats: MPEG-4 AAC-LC, HE-AACv1, HE-AACv2 USB-C connector USB 2.0 high speed Supported Modes: Mass Storage Class USB Audio Class 2.0 (48 kHz async, 24 bits, 2-in / 2-out) DFU Class Power 2 x AA...
