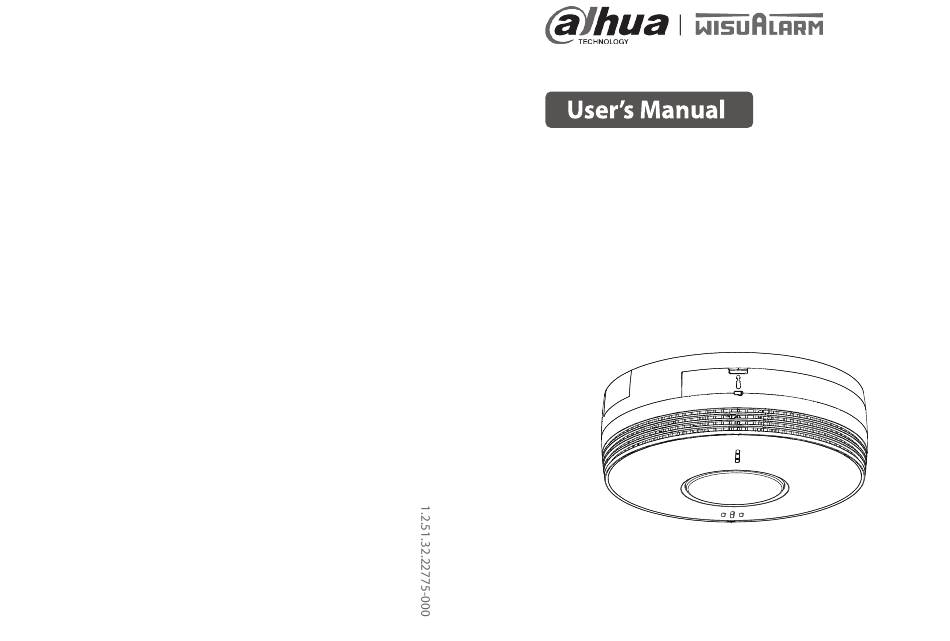

- Page 1 Mains Powered Smoke Alarm ZHEJIANG HUAXIAO TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Important Safeguards And Warnings
1.Important Safeguards and Warnings This manual will help you to use the device properly. Read the manual carefully before using the device, and retain it well for future reference. Operation Requirements WARNING ● Never ignore any alarm. Failure to respond may lead to serious injury or death. -
Page 3: Maintenance Requirements
● Strictly comply with the local electrical safety code and standards, 2.Introduction and check whether the power supply is correct before operating the 2.1Product information device. Mains Powered Smoke Alarm (hereinafter referred to as the device) is ● Do not connect the device to two or more kinds of power supplies, designed to continuously monitor smoke concentration. -
Page 4: Technical Information
Figure 2-2 Mains smoke alarm with rechargeable battery back-up 3.Technical Information Specification Introduction Sensor Type Photoelectric Supply Voltage AC 100V - 250V, 50Hz/60Hz, 0.25W Alarm Method Visual and audible alarm Pre-Set Alarm Value 0.2 dB/m-0.3 dB/m Maximum Number of 24 hardwire interconnected Interconnected Units Operating -10°C to +55°C (+14°F to +131°F) -
Page 5: Installation Principle
● Installed on the ceiling. 4.Device Installation and Removal If the device is installed on the ceiling, install at a distance of 500 mm 4.1 Installation principle (20 inches) away from the corners of the room, or at least 300mm from The advice here follows the guidance in British Standard BS 5839- any light fitting or decorative object which might obstruct smoke 6:2019 or the building code of Australian, state and territory building... - Page 6 ● Installed on the sloping roof. When the slope is less than 45°, the appropriate distance is 20 inches The wiring must be connected to the terminal block on the mounting (500 mm). plate as follows: Figure 4-4 Installation position (3) ●...
-
Page 7: Removal Steps
Step 4 Connect the power cables to the terminal block and tighten the Step 5 Install the wiring cover, write the installation date, and ensure screws. that the alarm is properly aligned with the mounting plate before sliding it on according to the corresponding direction as 1) If the mains wires are recessed, bring the wires through the shown in the mounting plate. - Page 8 Figure 4-9 Removal 5.Interconnection ● Once one device triggers an alarm, all interconnected devices raise the alarm in unison. ● This device can be interconnected with Wisualarm interconnected alarms to construct a hybrid system containing CO / Heat / Smoke Alarms. A maximum of 24 heat/smoke/CO alarms can be interconnected.
-
Page 9: Test And Maintenance
Silence/Pause the alarm Figure 5-1 Interconnection When the smoke concentration reaches a predetermined threshold, the LED indicator flashes, and the buzzer beeps (85 dB). Press the Test/ IC-INTERCONNECT Silence button to temporarily mute the alarm sound and the device L-LIVE will be in the silence mode for 9 minutes. -
Page 10: Maintenance
The device that has been pressed is temporarily silenced, but the 7.Frequently Asked Questions initiating interconnected device keeps beeping. Problem Solutions 6.3 Maintenance ● If testing immediately after first activating Your smoke alarm To keep your device in good working condition, please follow these does not sound the alarm, you should allow a few seconds requirements. - Page 11 8.Indicator Summary Tables & Constan- Flash once Beep once Alarm Troubleshooting every second every second tly on 8.1 Normal operation and alarm mode Alarm trigge- red by Flash three Beep three another Green Yellow times every times every Constan- smoke Mode State Action...
- Page 12 8.2 Abnormal mode Press Green LED Yellow LED Red LED Test/ Buzzer Cause Solution Silence Flash slowly Beep once (Power) (Fault) (Alarm) button four Flash once AC mains off times per minute Reconnect Press AC mains AC mains off Inter- power Flash once Beep once...
-
Page 13: Sensor Fault
Step 3 Slide the alarm off the mounting plate. Step 4 Replace the battery in the back of the alarm with a new 9 V CEE & Nordic Importer: Dahua Technology Poland Sp. z o .o. Alkaline battery. Address: ul. Salsy 2, 02-823 Warszawa CAUTION Email address for service purposes: partner@wisualarm.com... - Page 14 Address: 3rd Floor, Quantum House, 60 Norden Road, Maidenhead, SL6 Email address for service purposes: support.uk@dahuatech.com Germany Importer: Dahua Technology GmbH Address: Niederkasseler Lohweg 185, 40547 Düsseldorf Email address for service purpose: support.de@dahuatech.com Australian Importer: Dahua Technology Australia Address: Suite 1.02, 1 Epping Road, North Ryde NSW 2113 12.Documents...
