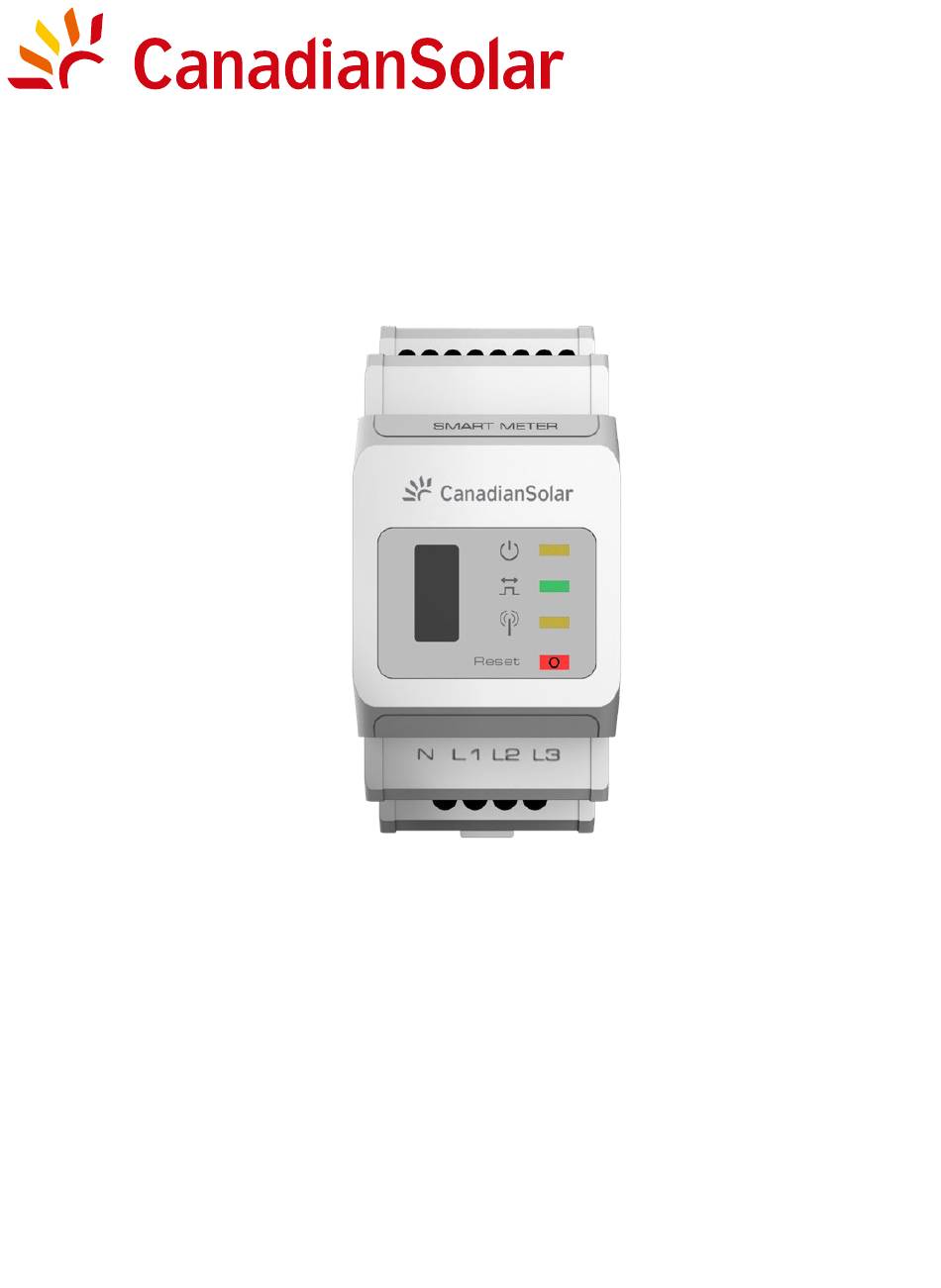

- Page 1 Quick Installation Guide Smart Meter (CSI-GE01-1P-METER/CSI-GE01-3P-METER) V1.0 -2022-07-15...
-
Page 2: Safety Disclaimer
Quick Installation Guide V1.0-2022 -07-15 Safety Precautions General Disclaimer • The information in this quick installation guide is subject to change due to product updates or other reasons. All descriptions here are for guidance only. • Before installations, read through the quick installation guide. •... -
Page 3: Eu Declaration Of Conformity
Quick Installation Guide V1.0 -2022 -07-15 Storage If the equipment is not to be installed or used immediately, please ensure that the storage environment meets the following requirements: • Do not unpack the outer package or throw the desiccant away. •... -
Page 4: Technical Parameters
Quick Installation Guide V1.0-2022 -07-15 Technical Parameters CSI-GE01-1P-METER CSI-GE01-3P-METER Model Grid Single phase Three phase Nominal 110/230 230/400 Voltage (Vac) Voltage Range 100-240 100-240 Input Voltage Nominal AC Grid Frequency 50/60 50/60 (Hz) Current CT In (A) 1CT: 120 3CTs: 120/200... -
Page 5: Product Introduction
Quick Installation Guide V1.0 -2022 -07-15 Product Introduction Indicators Reserved Port Reset Button... -
Page 6: Installation
Quick Installation Guide V1.0-2022 -07-15 Installation Packing List PIN terminal Smart Meter x 1 Screwdriver x 1 USB Plug x N[1] x N[2] [1]: For CSI-GE01-1P-METER and CSI-GE01-3P-METER. [2]: CSI-GE01-1P-METER x 4; CSI-GE01-3P-METER x 6. Installation and Cable Connection... -
Page 7: Wiring System
Quick Installation Guide V1.0 -2022 -07-15 Wiring System CSI-GE01-1P-METER Household Meter Inverter Utility Grid Loads Fuse 0.5A • Recommended cable connected to the voltage input terminal: 1mm² (17AWG). • CT direction: House (K)-->Grid (L). - Page 8 Quick Installation Guide V1.0-2022 -07-15 CSI-GE01-3P-METER Household Meter Utility Grid Inverter Loads Fuse 0.5A • Recommended cable connected to the voltage input terminal: 1mm² (17AWG). • CT direction: House (K)-->Grid (L).
- Page 9 Quick Installation Guide V1.0 -2022 -07-15 Commissioning Power ON Step 1 Connect the smart meter cables. Step 2 Power on the inverter and make sure that the inverter is working normally. Then the smart meter is powered on. Indicator Type Status Description Steady on...
-
Page 10: Contact Information
Contact Information EMEA MSS HQ Italy Canadian Solar EMEA GmbH Sales.emea@csisolar.com (Sales Inquiries) Radlkoferstrasse 2, 81373 Munich, Germany Inverter.support-it@csisolar.com (Service) Sales.emea@csisolar.com (Sales Inquiries) Germany Poland Canadian Solar EMEA GmbH Sales.emea@csisolar.com (Sales Inquiries) Radlkoferstrasse 2, 81373 Munich, Germany Inverter.support-pl@csisolar.com (Service) Sales.emea@csisolar.com (Sales Inquiries) Inverter.support-de@csisolar.com (Service)
