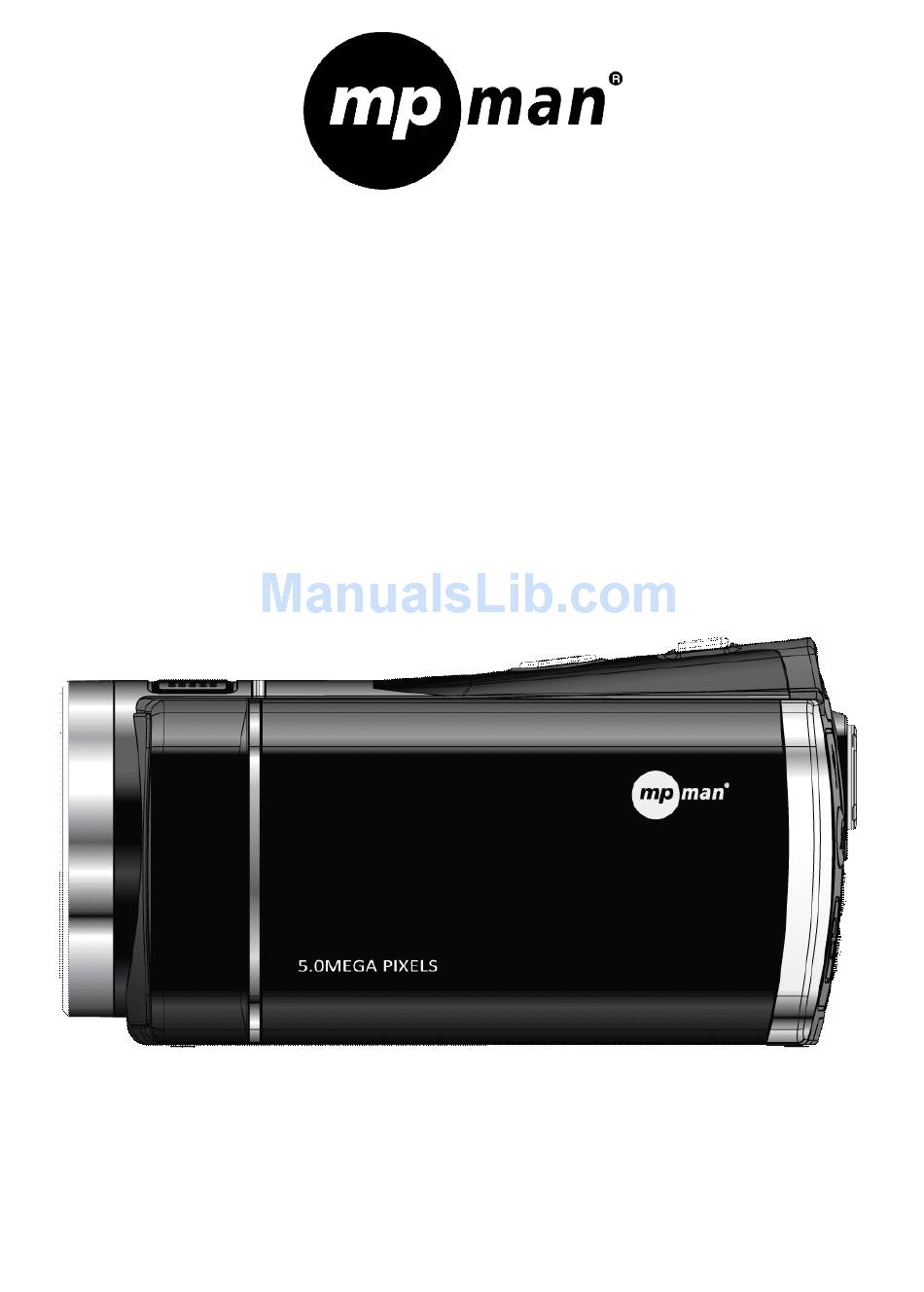

- Page 1 PC25HD PC25HD PC25HD PC25HD...
- Page 2 Preface Preface Preface Preface Thanks for your selection of this digital video camera. The user’s manual shall be carefully read and put in a safe place before application for further reference. The contents covered by this manual refer to the latest information when this manual is compiled.
- Page 3 Metal foots of memory card Writing protection switch Push the switch on the SD memory card to the bottom and then the data will be protected. Push the switch on the SD memory card to the top and then the writing protection will be cancelled.
- Page 4 camera or card reader of a memory card. ● If one of the following situation occurs, the record data may be damaged: -The memory card is improperly used. -When recording, delete (formatting) or reading, the power supply is cut off or the memory card is taken out.
- Page 5 System System System System required required required required When this digital video camera is operated or used, the lowest system requirement to the computer for the video camera shall be referred. We strongly recommend you to use better computer to operate the video camera to exert the best function of the video camera. The following is the lowest system required: System required Operation system...
- Page 6 TV cable Li-battery Brief introduction introduction of of of of the appearance Brief Brief Brief introduction introduction the appearance appearance appearance Display screen Menu key Power key Camera key Zoom key Working indicator light Direction key OK key Recording key Playback key Shortcut key delete USB interface...
- Page 7 Trumpet Portrait indicator light LED fill light Camera lens Wrist sling button Wrist sling Microphone...
- Page 8 Function Function Function of of of of keys keys keys indicator indicator lights lights lights of of of of the video video camera camera Function keys and and indicator indicator lights the video video camera camera Key/Indicator Key/Indicator light light Function Function Key/Indicator...
- Page 9 Battery installation Battery Battery Battery installation installation installation The video camera uses four AAA alkaline batteries or original rechargeable lithium battery. Before the battery is replaced, the power supply of the video camera shall be cut off. Open the battery cover and insert the battery due to the indication of positive and negative poles in battery bin.
- Page 10 Playback Playback Playback Playback Press the playback key to enter playback mode to browse photos and play the video shot by the camera. Browsing photos: use left key or right key to select photos and use zoom key to enlarge the photo.
- Page 11 ▲ Recording/picture taking menu Date Date Date Date and and time time time time setting setting setting setting Press the menu key to open the menu and then press the left and right key to enter setting menu. Press the down key to select “date and time” menu option and press OK key to enter setting window.
- Page 12 Progressive Progressive operation operation Progressive Progressive operation operation Picture taking/recording mode Picture Picture Picture taking/recording taking/recording taking/recording mode mode mode The camera will automatically enter picture taking/recording mode after it is started. Press the shutter key to directly take photos. Press the recording key to start shoot and press the recording key again to stop shooting.
- Page 13 Photometry mode Indicate current photometry mode 3 3 3 3 4 4 4 4 Exposure Indicate current selected exposure value Indicate current dimension of Resolution 5 5 5 5 Image Dimension of photo 6 6 6 6 Image quality Indicate current selected image quality Possible number 7 7 7 7 Indicate the remaining number of photos...
- Page 14 bright striation. Recording menu option: Main Main menu menu S S S S ubmenu ubmenu ubmenu Description Description Main Main menu menu ubmenu Description Description 4032x 3000 12-million pixels Resolution 3264 x2448 8–million pixels Resolution Resolution 2592x1944 5-million pixels Resolution 2048X1536 3-million pixels Resolution 1280x720...
- Page 15 Suitable for light source environment of filament Filament lamp left and right key to adjust exposure Exposure compensation Close Use common mode of taking single picture Use portrait mode with 2 s delay Recording Use portrait mode with 10 s delay mode Successive Successively taking photos...
- Page 16 Close blink detect Setting menu No matter under recording mode or picture taking/recording or playback mode, after the menu is opened by pressing the menu key, press the left and right key to enter setting the main menu. Then press the up, down, left and right key to select menu and press OK key to enter the submenu.
- Page 17 50 Hz Set the frequency of light source as 50 Hz Power Frequency 60 Hz Set the frequency of light source as 60 Hz 1 minute Automatic close under 1 minute of idle state 3 minutes Automatic close under 3 minutes of idle state Power Save 5 minutes Automatic close under 5 minutes of idle state...
- Page 18 the recording. Press T key or W key to achieve digital zoom. The 10s delayed portrait can be realized after pressing the right key of the shortcut key. Portrait mode: press the camera key to start count down and the photo will be taken after 2 s or 10 s.
-
Page 19: Playback Menu
Under playback mode, press the left key to select previous file or press the right key to select next file. When recording is selected, press OK key to start the play, meanwhile, the play timekeeper will appear on the right upper corner on the screen. During the play process, press the up key to pause the play. - Page 20 Circulation Yes/no Add the sound memo on picture Sound memo Delete Delete sound memo on picture Attention: each picture can add sound memo at most 30senconds. On playback mode to add sound memo, the picture will show .press OK key to start play sound memo, you can press UP key or Menu key to stop it, Download Download...
- Page 21 Make sure to select the Preview in Option menu. Install Software Install Install Install Software Software Software Insert the accompanied CD into CD-ROM, and the installation guide program will run automatically, the installation guide window appearing. There are four keys on the guide window: Install Driver Install MediaImpression...
- Page 22 Install Install Driver Driver Install Install Driver Driver Click the Install Install Install Driver Driver Driver button to finish installation step by step according to the clew. Install Driver After finishing installation, please restart the computer. Note: Before installing driver, do do do not connect camera...
- Page 23 After installation, please restart the computer. Run MediaImpression : Double click the icon on the desktop or follow “Start → Programs” to open: MediaImpression After starting MediaImpression, , , , click the “Import” to import the media.
- Page 24 Choose the video camera storage and choose the output location. Choose require file and click the import, selected file will be stored in the output location. Click “Go to start page” to return the main screen, click the “Video” or “All media” to use the “YouTube”...
- Page 25 Choose file and click the “upload to YouTube. Enter you username and password to login the YouTube, execute upload. Specification Specification Specification Specification Image inductor 5-million pixels CMOS image inductor 2M (4032 x 3000), 8M (3264 x 2448), 5M (2592 x Photo resolution 1944), 3M (2048 x 1536) built-in 32MB, available of an external SD card...
- Page 26 Automatic / sunny day/ cloudy / fluorescent lamp / White balance filament lamp Exposure compensation -2.0 ~ +2.0 USB interface USB 2.0 TV output NTSC / PAL Display screen 2.7 TFT LCD Four AAA alkaline batteries, or one 3.7 V rechargeable Power supply lithium battery English / French/German/Italian/Dotch/ Spanish/Portuguese...
- Page 27 Solution Solution Solution of of of of common common common problems problems Solution common problems problems The quantity of electricity of the battery is insufficient, the The video camera battery shall be replaced. can not be started The package of the battery is not removed. after the battery is The battery is installed in reversed way.
- Page 28 In accordance with the following applicable directives: 2004/108/EC Electromagnetic Compatibility This product has been assessed against the following applicable stancards: EN 55022:2006+A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2:2006 EN 61000-3-3:2008 For more information please visit our Website： http://www.mpmaneurope.com...
