Sunlite F6s User Manual

Trainer cycle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

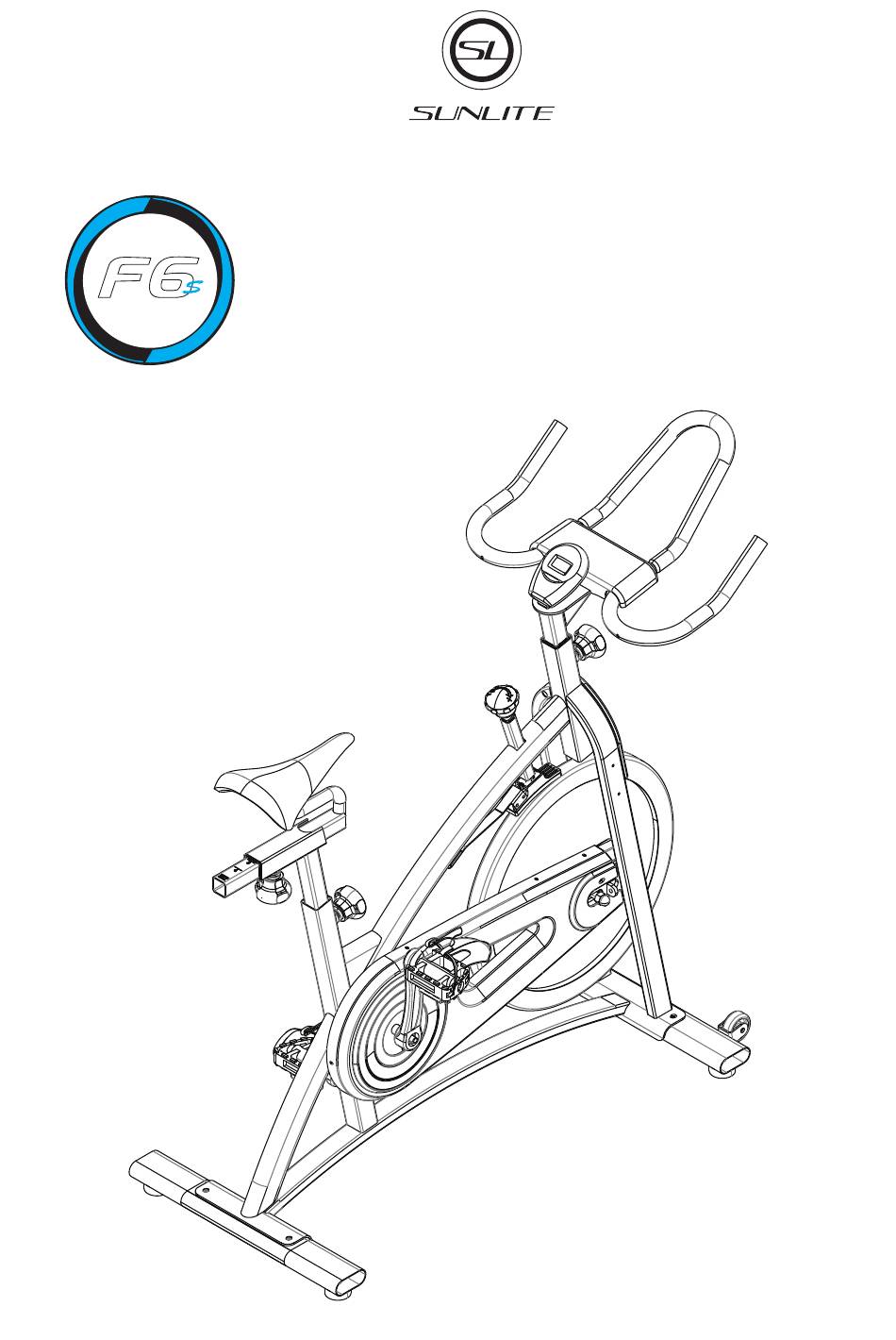

TRAINER
CYCLE
F6
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F6s and is the answer not in the manual?

Questions and answers

Related Manuals for Sunlite F6s

Summary of Contents for Sunlite F6s

  • Page 1 TRAINER CYCLE USER’S MANUAL...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING...

  • Page 4: Parts List

    PARTS LIST Description Spec. Description Spec. Foam (A) Φ23*3*550 Saddle 98-2 Handlebar Cover Seat Slider Handlebar (A) Saddle Post Adjustment End Cap Φ25*16 Φ61*M16*1.5*18*Φ8 Knob Screw M6*16*S4 Grommet Φ12*11*Φ3 Bolt M10*35*15*H6 Screw M6*10*Φ12 Foam Grip Φ23*3*460 Front Cover 157*152*38.5 HIPS Handlebar (B) Crank Cap Φ25*7...
  • Page 5 PARTS LIST Description Spec. Description Spec. Washer D5*Φ13*1.0 Screw ST4.8*10*Φ8 Water Bottle Holder Shipping Tube Washer D5*Φ13*1 Screw M8*16*S6 Screw M5*16*Φ10 Rear Stabilizer Front Stabilizer Main Frame Spacer Φ18*Φ12.2*11.5 Foot Leveler Φ43*14*M8*25 EndCap 30*70*1.5t Allen Wrench Screw M8*40*20*S6 Spanner S13-14-15 Washer D8*Φ16*1.5 Spanner...

  • Page 6: Hardware Package

    HARDWARE PACKAGE #11 M10*H9.5*S17 2PCS #6 M10*35*15*H6 2PCS #77 Φ16*Φ8*H1.5 4PCS #76 M8*40*20*S6 4PCS...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 1: Remove the Screws (No. 83) with Allen Wrench (No. 87), then remove the Washers (No. 77) and Shipping Tubes (No. 82). You may discard these parts or save them in case you would like to repackage the item in the future. [Screws (No. 83), Washers (No.
  • Page 8 STEP 4: Loosen and remove the [seat slider] Adjustment Knob (No. 38). Insert Seat Slider (No. 36) into the Saddle Post (No. 37). Adjust the Seat Slider (No. 36) to the desired position and reinsert and tighten Adjustment Knob (No. 38) to secure the post in place.

  • Page 10: Exercise Computer

    EXERCISE COMPUTER SPECIFICATIONS: TIME-------------------------------------------00:00-99:59 MIN:SEC SPEED----------------------------------------0.0-999.9 ML/H DISTANCE-----------------------------------0.00-99.99 ML CALORIES-----------------------------------0.0-999.9 KCAL FUNCTION KEY: MODE: Press to select function (Scan, Time, Speed, Distance, Calories). CLEAR: Press to reset value. Press and hold for 3 seconds to reset all values. This function is only available when the bike is stopped and the computer is not in SCAN mode.

  • Page 11: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. MONTHLY MAINTENANCE DAILY MAINTENANCE 1. Check all hardware is secure, such as: water After each exercise session, wipe down all bottle holder, flywheel nuts, belt guard bolts, the equipment: seat, frame, handlebars.
