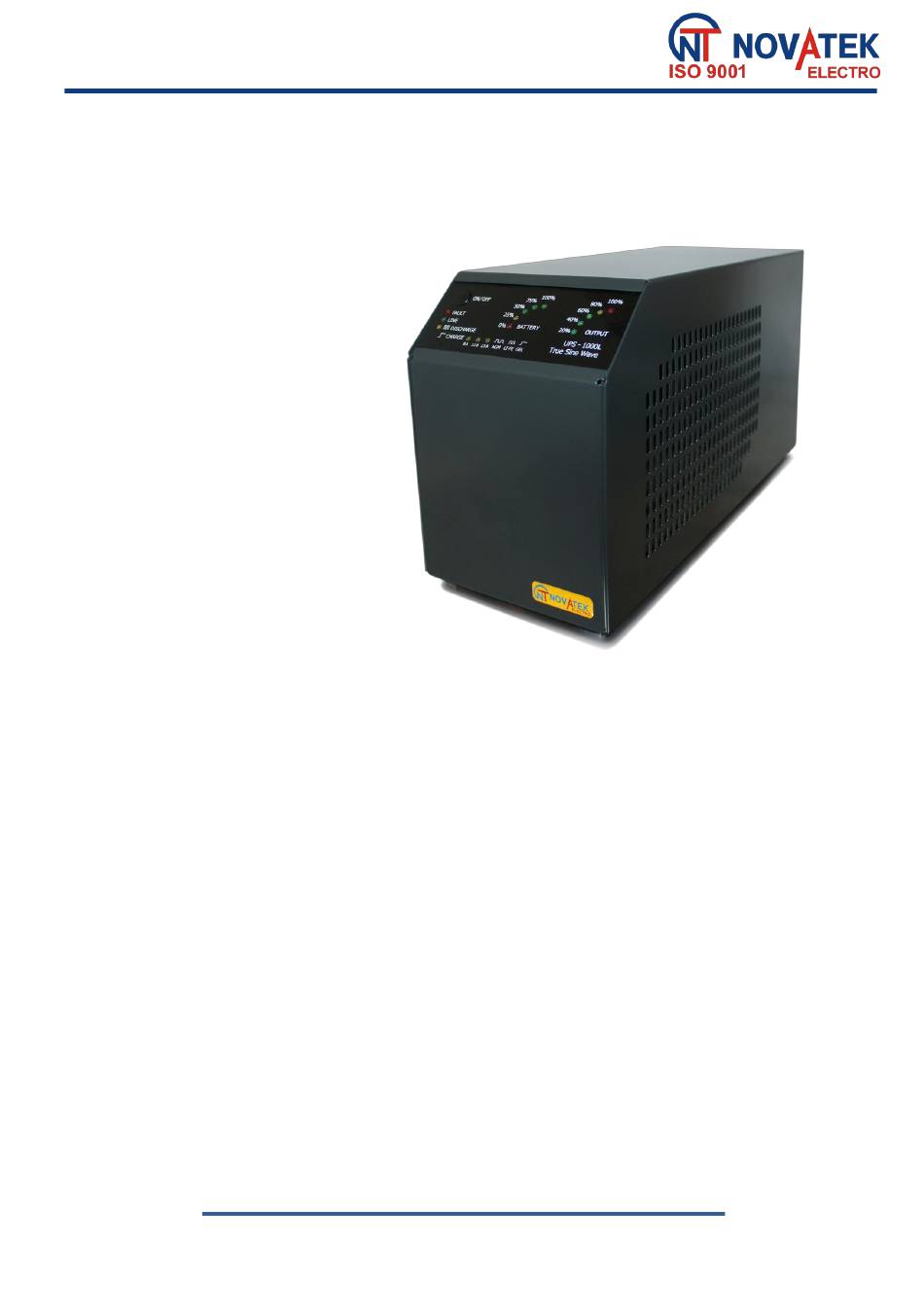

UNINTERRUPTIBLE
POWER SOURCE
UPS-1000
UPS-1000L
UPS-1000LP
OPERATING MANUAL
Quality control system on the development and production complies with requirements
ISO 9001:2015
Thank you for the purchase of uninterruptible power source
UKRAINE, Odessa
www.novatek-electro.com
Advertisement
Table of Contents
Summary of Contents for Novatek-electro UPS-1000
- Page 1 «NOVATEK-ELECTRO» Ltd intelligent industrial electronics UNINTERRUPTIBLE POWER SOURCE UPS-1000 UPS-1000L UPS-1000LP OPERATING MANUAL Quality control system on the development and production complies with requirements ISO 9001:2015 Thank you for the purchase of uninterruptible power source UKRAINE, Odessa www.novatek-electro.com...
-
Page 2: Safety Measures And Precautions
Uninterruptible Power Source (UPS) (hereinafter: device; UPS; UPS-1000; UPS-1000L; UPS-1000LP). Not e - UPS-1000; UPS-1000L; UPS-1000LP abbreviations are used when characteristics of devices types are different. ATTENTION! ALL THE REQUIREMENTS OF THIS OPERATING MANUAL ARE COMPULSORY! The device complies with the requirements of: ... -
Page 3: Package Contents
4 TECHNICAL DESCRIPTION 4.1 Operating Principle • UPS-1000 series models belong to linear interactive uninterruptible power supply sources with a continuous backup time. Their operating principle is based on the conversion of stored energy of the external battery into alternate voltage of industrial frequency. - Page 4 • 6: cooling fan; • 7: UPS output socket (UPS 1000, UPS-1000L German standard, UPS-1000 LP French standard). Figure 2 - UPS Back Panel The intelligent multi-stage battery charger is applicable in the UPS. Charge stages are shown in Fig. 3 and Fig. 4.
-
Page 5: Connecting And Operation
Disadvantages of lithium-iron-phosphate ACBs – high price, you need BMS (balancer - ACB protection and control system). We strongly recommend you to: • buy new batteries only when necessary, as they have a limited shelf life; • acquire batteries of famous brands from reliable and trusted vendors. NOVATEK-ELECTRO UPS-1000... - Page 6 • It is necessary to charge ACB. To do this, leave the UPS switched till the battery’s discharge. The charge level of the battery is indicated by five LED BATTERY indicator (see. Fig. 1). After a full battery charge, BATTERY 100% indicator 5 should start glowing, CHARGE LED indicator 14 (see. Figure 1) should not glow. UPS-1000 NOVATEK-ELECTRO...
- Page 7 "Specifications". • ACB storage conditions must comply with the requirements of battery’s manufacturer. Estimated battery/batteries life of the uninterruptible power sources of UPS-1000 series, depending on the load and capacity of the battery / batteries are given in Table 1.
-
Page 8: Troubleshooting
If none of the following methods do not solve the problem, seek professional advice from the manufacturer. Do not try to repair the unit by yourself! 7 TECHNICAL CHARACTERISTICS Table 3 Model UPS-1000, UPS-1000L Characteristic UPS-1000LP Full capacity (nominal value), VА 1000 Active capacity (nominal value), W ≤110... -
Page 9: Transportation And Storage
~ 9 ~ Model UPS-1000, UPS-1000L Characteristic UPS-1000LP Normal conditions and AVR correct sine wave Output shape Battery mode from over / under-voltage, overload, short circuit, AVR operating mode overvoltage Protection Battery mode from discharge, overload, short circuit Type of cooling convective;... - Page 10 The Company is grateful to you for the information about the quality of the device and suggestions for its operation. For all questions, please, contact the manufacturer: "Novatek-Electro" Ltd. 59, Admirala Lazareva str., Odessa, 65007, Ukraine Tel: +38 048 738-00-28; + 38 0482 37 48 27;...
- Page 11 ~ 11 ~ NOVATEK-ELECTRO UPS-1000...
- Page 12 ~12~ UPS-1000 NOVATEK-ELECTRO...
