Kvaser Leaf User Guide

https://gmga.vn/

Printed Thurday 20

July, 2023

We believe that the information contained herein was accurate in all respects at the time of printing. GMGA

MEASURING cannot, however, assume any responsibility for errors or omissions in this text. Also note that

the information in this document is subject to change without notice and should not be construed as a

commitment by GMGA MEASURING.

Table of Contents

Need help?

Do you have a question about the Kvaser Leaf and is the answer not in the manual?

Questions and answers

Summary of Contents for GMGA MEASURING Kvaser Leaf

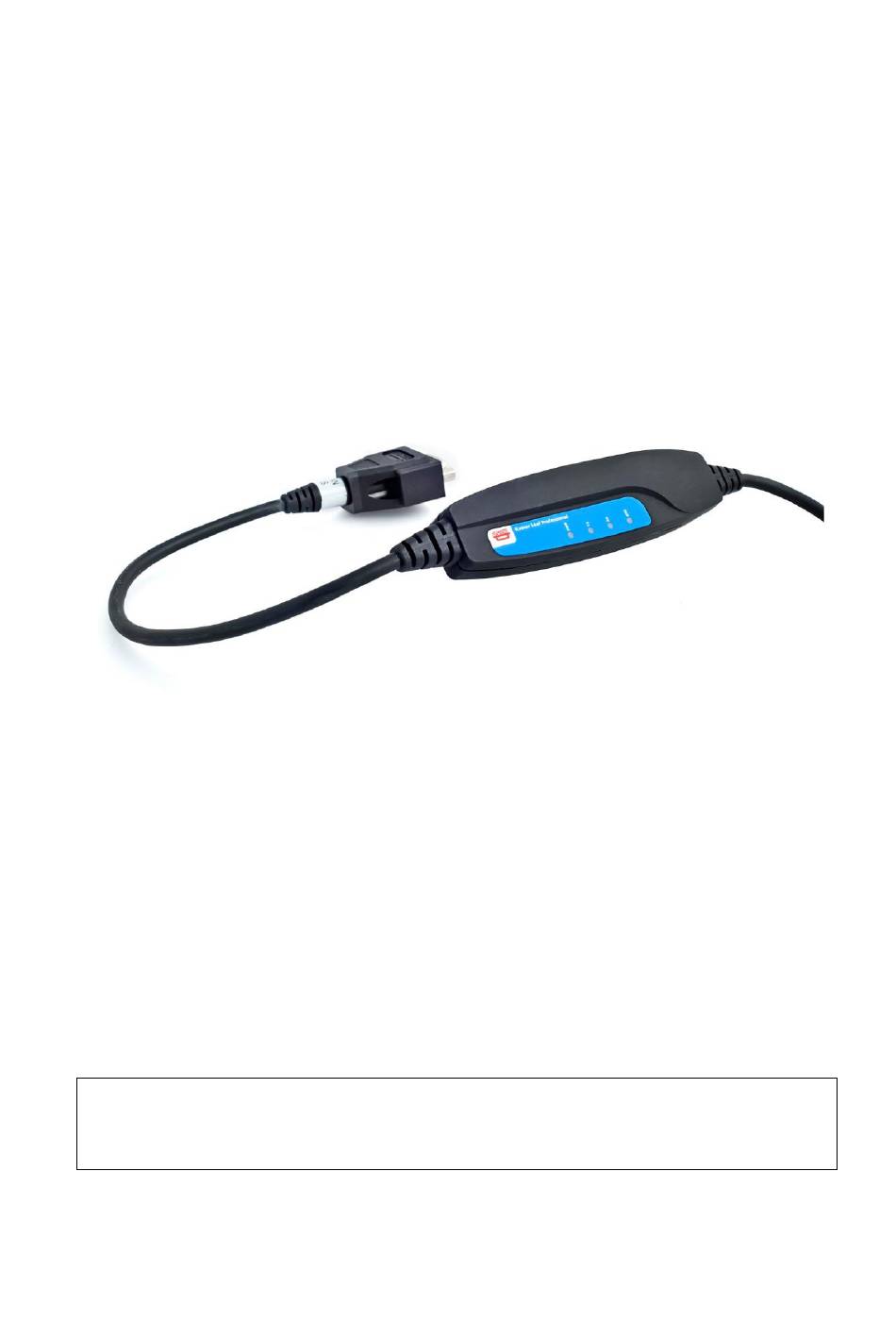

Page 1 Kvaser Leaf User Guide Copyright 2023 GMGA MEASURING - Hanoi, Vietnam https://gmga.vn/ Printed Thurday 20 July, 2023 We believe that the information contained herein was accurate in all respects at the time of printing. GMGA MEASURING cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GMGA MEASURING.
Page 2 Kvaser Leaf User Guide 2 (65) (This page is intentionally left blank.) GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 3: Table Of Contents
Contents 1 Introduction ....................5 1.1 Kvaser MagiSync 1.2 Difference between USB standards ................. 7 2 General for all Kvaser Leaf products 2.1 Introduction ....................... 8 2.2 Identification ......................8 2.3 Power ........................10 2.4 LEDs ........................11 2.5 USB connector ......................11 2.6 D-SUB connector ....................
Page 4 12 Legal information 12.1 Electromagnetic compability.................. 33 12.2 EU Regulatory Compliance..................34 12.3 FCC Regulatory Compliance ................. 49 12.4 About this manual ....................64 12.5 Patents, copyrights, and trademarks ..............64 13 Document revision history GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 5: Introduction
Kvaser Leaf User Guide 5 (65) Introduction The Kvaser Leaf family currently consists of three basic products: Kvaser Leaf Light, Kvaser Leaf SemiPro and Kvaser Leaf Professional. Kvaser Leaf SemiPro and Kvaser Leaf Professional use the patented Kvaser MagiSync that you can read more about in Section 1.1 Kvaser MagiSync...
Page 6 Kvaser Leaf User Guide 6 (65) Figure 1: Kvaser Leaf syncronization. All devices are synchronized in this setup. Figure 2: Kvaser Leaf syncronization. The devices are not synchronized in this setup. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 7: Difference Between Usb Standards
2.0 is backwards compatible with 1.X. Kvaser Leafs will work on your computer with all standards, but if you do not have USB 2.0, the Kvaser Leafs will use full-speed at max. 12 Mbit/s. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 8: General For All Kvaser Leaf Products
USBcan, USBcan II, etc.) Identification When a Kvaser Leaf is inserted, its index is written to the registry. The next time a Kvaser Leaf of the same type is plugged into the same port, the index is reused if possible, or else the first available "slot"...
Page 9 Kvaser Leaf User Guide 9 (65) Figure 3: Locate Hardware GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 10: Power
Power All Kvaser Leaf devices are powered through the USB connector. The host must supply 5 V DC, as per the USB specification. Some device types also need a reference voltage on the CAN or LIN connector. This is described in detail in Section 2.6.2, Reference Power (pin 9), on Page 13.
Page 11: Leds
USB connector The Kvaser Leaf device may be connected to any free USB socket on the host computer. Power does not have to be turned off before inserting or removing the device. It is good practice, though, to exit all applications using the CAN hardware before removing a Kvaser Leaf device.
Page 12: D-Sub Connector
In high speed mode an external load resistor of 180 is required. Pin 4 has an 180 resistance connected through a switch to ground (pin 3). When the Kvaser Leaf is configured to "high speed" mode by software, this switch closes. To acquire the needed pull-down resistor, the user needs only connect pin 4 to pin 7;...
Page 13 6 V to 18 V for older devices, while for devices with serial number 10200 or higher, the operating input voltage range is 6 V to 27 V (absolute maximum rating is 40 V). The input is protected from load dumps. The Kvaser Leaf will Ω...
Page 14 This value is chosen as to load the system as little as possible. You will probably need to add extra pull-up and pull-down resistors to the CAN bus unless the system you connect the Kvaser Leaf to already has a proper resistor configuration. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 15: Obdii Connector
When running the SWC bus in its high-speed mode, a Ω load resistance of 180 from CAN_H to ground is required. The Kvaser Leaf hardware Ω supports high-speed as a master and has an internal 180 which is automatically switched in when required, as seen in Figure 8 on Page 13.
Page 16 Kvaser Leaf User Guide 16 (65) Figure 11: J1939-13 Connector pins J1939-13 Pin Kvaser Leaf Leaf Light with J1939-13 connector Not connected CAN_HI CAN_LOW SHIELD Not connected Table 5: J1939-13 pin configuration GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 17: Technical Data
Table 6: Technical data for all Kvaser Leafs Kvaser Leaf Light HS Introduction Kvaser Leaf Light is a reliable low cost product. With a time stamp precision of 100 µs it handles transmission and reception of standard and extended CAN messages on the bus.
Page 18: Leds
Table 7: Kvaser Leaf Light LED configuration Technical data Technical data exclusive to Kvaser Leaf Light HS are listed in Table 8 on Page 19: Technical data for Kvaser Leaf Light HS. For common technical data for all Kvaser Leaf Leaf products, see Table 6 on Page 17: Technical data for all Kvaser Leafs.
Page 19 OBDII Connector Optional J1939-13 Connector Optional Galvanic isolation Optional Table 8: Technical data for Kvaser Leaf Light HS With Kvaser Leaf Light OBDII With Kvaser Leaf Light J1939-13 With Kvaser Leaf Light Galvanic Isolation GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 20: Kvaser Leaf Light Rugged
Table 9: Kvaser Leaf Light Rugged LED configuration Technical Data Technical data exclusive to Kvaser Leaf Light Rugged HS are listed in Table 10 on Page 21: Specifications for data for Kvaser Leaf rugged. For common technical data for all Kvaser Leaf Leaf products, see Table 6 on Page 17: Technical data for all Kvaser Leafs.
Page 21 -40 to +85 Max message rate 8000 Messages/s USB speed Mbit/s Clock accuracy µs Time stamp bits Galvanic isolation Polyurethane cabling IP Rating IP 67 Table 10: Specifications for Kvaser Leaf Light Rugged GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 22: Kvaser Leaf Semipro Ls/Hs/Swc
Technical Data Technical data exclusive to Kvaser Leaf SemiPro LS/HS/SWC are listed in Table 14 on Page 25. For common technical data for all Kvaser Leaf Leaf products, see Table 6 on Page 17: Technical data for all Kvaser Leafs.
Page 23 12 & 480 Mbit/s Clock accuracy µs Time stamp bits Galvanic isolation Clock sync of multiple devices Error frame generation Silent mode Polyurethane cabling Table 12: Technical data for Kvaser Leaf SemiPro LS/HS/SWC GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 24: Kvaser Leaf Semipro Rugged
Table 13: Kvaser Leaf SemiPro Rugged LED configuration Technical Data Technical data exclusive to Kvaser Leaf SemiPro Rugged are listed in Table 14 on Page 25. For common technical data for all Kvaser Leaf Leaf products, see Table 6 on Page 17: Technical data for all Kvaser Leafs.
Page 25 Clock accuracy µs Time stamp Bits Galvanic isolation Clock sync of multiple devices Error frame generation Silent mode Polyurethane cabling IP Rating IP 67 Table 14: Technical data for Kvaser Leaf SemiPro LS/HS/SWC GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 26: Kvaser Leaf Professional Ls/Hs/Swc/Lin
Technical data exclusive to Kvaser Leaf Professional LS/HS/SWC are listed in Table 16 on Page 27 and to Kvaser Leaf Professional LIN in Table 17 on Page 28. For common technical data for all Kvaser Leaf Leaf products, see Table 6 on Page 17: Technical data for all Kvaser Leafs.
Page 27 Sound indicator Silent mode Auto transmit buffers Auto receive buffers Polyurethane cabling OBDII Connector Optional Table 16: Technical data for Kvaser Leaf Professional LS/HS/SWC With Kvaser Leaf Professional HS with OBDII connector GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 28 Clock sync of multiple devices Professional LS/HS/SWC Galvanic isolation Sound indicator Normal/Sleep Mode Monitor Mode Master/Slave Mode Auto transmit buffers Auto receive buffers Polyurethane cabling Table 17: Technical data for Kvaser Leaf Professional LIN GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 29: Kvaser Leaf Professional Rugged
Technical data exclusive to Kvaser Leaf Professional Rugged HS are listed in Table 19 on Page 30: Specifications for Kvaser Leaf Professional Rugged. For common technical data for all Kvaser Leaf Leaf products, see Table 6 on Page 17: Technical data for all Kvaser Leafs.
Page 30 Clock sync of multiple devices Galvanic isolation Error frame generation Sound indicator Silent mode Auto transmit buffers Auto receive buffers Polyurethane cabling IP Rating IP 67 Table 19: Specifications for Kvaser Leaf Professional Rugged GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 31: Frequently Asked Questions
2.2, Identification, on Page 8, Identification. How can I identify which Kvaser Leaf has a certain channel number? Use “Kvaser Device Guide” to flash the LEDs on the Kvaser Leaf. For more information see Section 2.2, Identification, on Page 8.
Page 32: Support And Software Updates
10.2 Firmware Updates Firmware updates and upgrade instructions can be found at www.kvaser.com/download Use “Kvaser Device Guide” to see the present firmware version of your Kvaser Leaf. 10.3 Driver Updates Driver updates and upgrade instructions can be found at www.kvaser.com/download Use “Kvaser Device Guide”...
Page 33: Disposal And Recycling Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 34: Eu Regulatory Compliance
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 35 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 36 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 37 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 38 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 39 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 40 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 41 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 42 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 43 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 44 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 45 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 46 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 47 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 48 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: of 15 December 2004 (EMC-directive) (title, date of standard/specification): Signed for and on behalf of: Place of issue Date of issue GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 49: Fcc Regulatory Compliance
Kvaser Leaf User Guide 49 (65) 12.3 FCC Regulatory Compliance Federal Communications Commission (FCC) Compliance Information Statement APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 50 Kvaser Leaf User Guide 50 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00242-5 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 51 Kvaser Leaf User Guide 51 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00243-2 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 52 Kvaser Leaf User Guide 52 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00260-9 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 53 Kvaser Leaf User Guide 53 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00261-6 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 54 Kvaser Leaf User Guide 54 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00263-0 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 55 Kvaser Leaf User Guide 55 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00264-7 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 56 Kvaser Leaf User Guide 56 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00269-2 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 57 Kvaser Leaf User Guide 57 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00402-3 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 58 Kvaser Leaf User Guide 58 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00404-7 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 59 Kvaser Leaf User Guide 59 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00411-5 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 60 Kvaser Leaf User Guide 60 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00427-6 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 61 Kvaser Leaf User Guide 61 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00506-8 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 62 Kvaser Leaf User Guide 62 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00509-9 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 63 Kvaser Leaf User Guide 63 (65) Federal Communications Commission (FCC) Compliance Information Statement Type: 73-30130-00642-3 APPLICABLE COMPLIANCE STATEMENTS: Mission Viejo, CA 92691 GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 64: About This Manual
Trademark of Open DeviceNet Vendor Association, Inc. NMEA 2000® is the registered trademark of the National Marine Electronics Association, Inc. The products described in this document are protected by U.S. patent 5,696,911. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
Page 65: Document Revision History
– this information is better obtained from our web site. 2011-01-21 Updated dimensions for Kvaser Leaf Light Rugged, updated temperature range for Kvaser Leaf Light HS, updated product images, and removed transceiver types from technical data tables. Other minor editorial changes.
