Motorola Mag One BPR 50dX Quick Reference Manual

Mag One BPR 50dX Portable Radio Quick
Reference Guide
This Quick Reference Guide covers the basic operation of the radio.
Check with your dealer or system administrator because your radio may
have been customized for your specific needs.
For more operational details and information on warnings and safety,
refer to the MN010575A01 Mag One BPR 50dX Portable Radio User
Guide at https://learning.motorolasolutions.com.

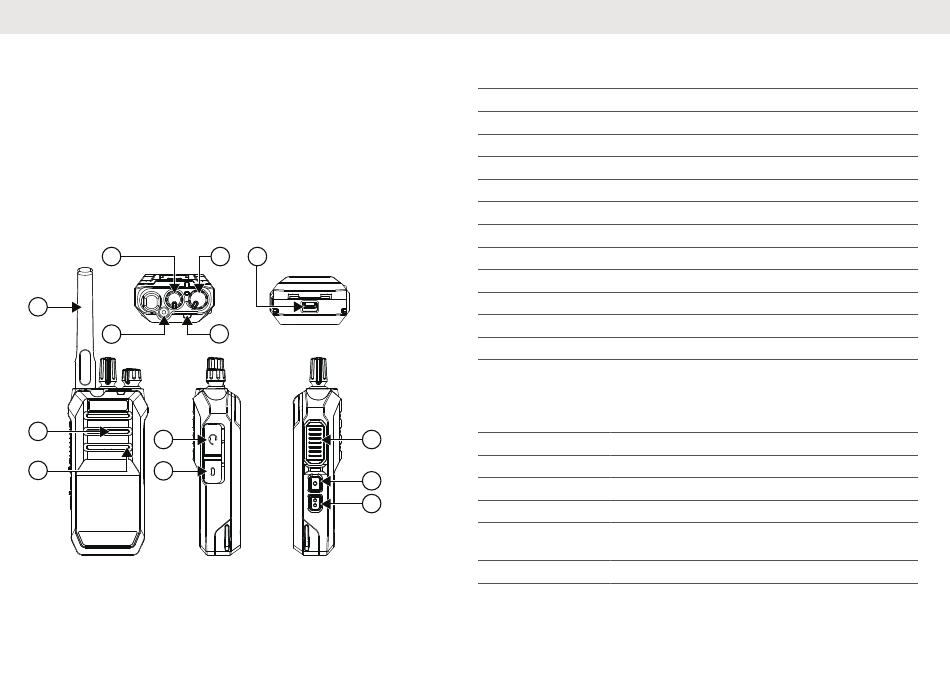

Radio Overview
1
2
3
7
9
8
10
4 6
5
11
12
13
Number Description
1 Channel Selector Knob
2 Antenna
3 Emergency Button (Programmable)
4 On/Off/Volume Control Knob
5 LED Indicator
6 Battery Latch
7 Speaker
8 Microphone
9 Audio Accessory Connector
10 USB-C Connector (Charging or Programming)
11 PTT Button
12 Programmable Side Button 1
13 Programmable Side Button 2
Radio LED Indications
Indication Status
Solid Red The radio is transmitting.
Solid Green The radio is receiving a signal.
Blinking Green The radio is scanning.
Blinking Orange The radio is in the cloning mode.
Blinking Red The battery capacity is low.
Solid White The radio is charging through USB-C. LED turns
off when USB-C charging completes.
Blinking White USB-C charging fault.
