Summary of Contents for RayChee RQ23042

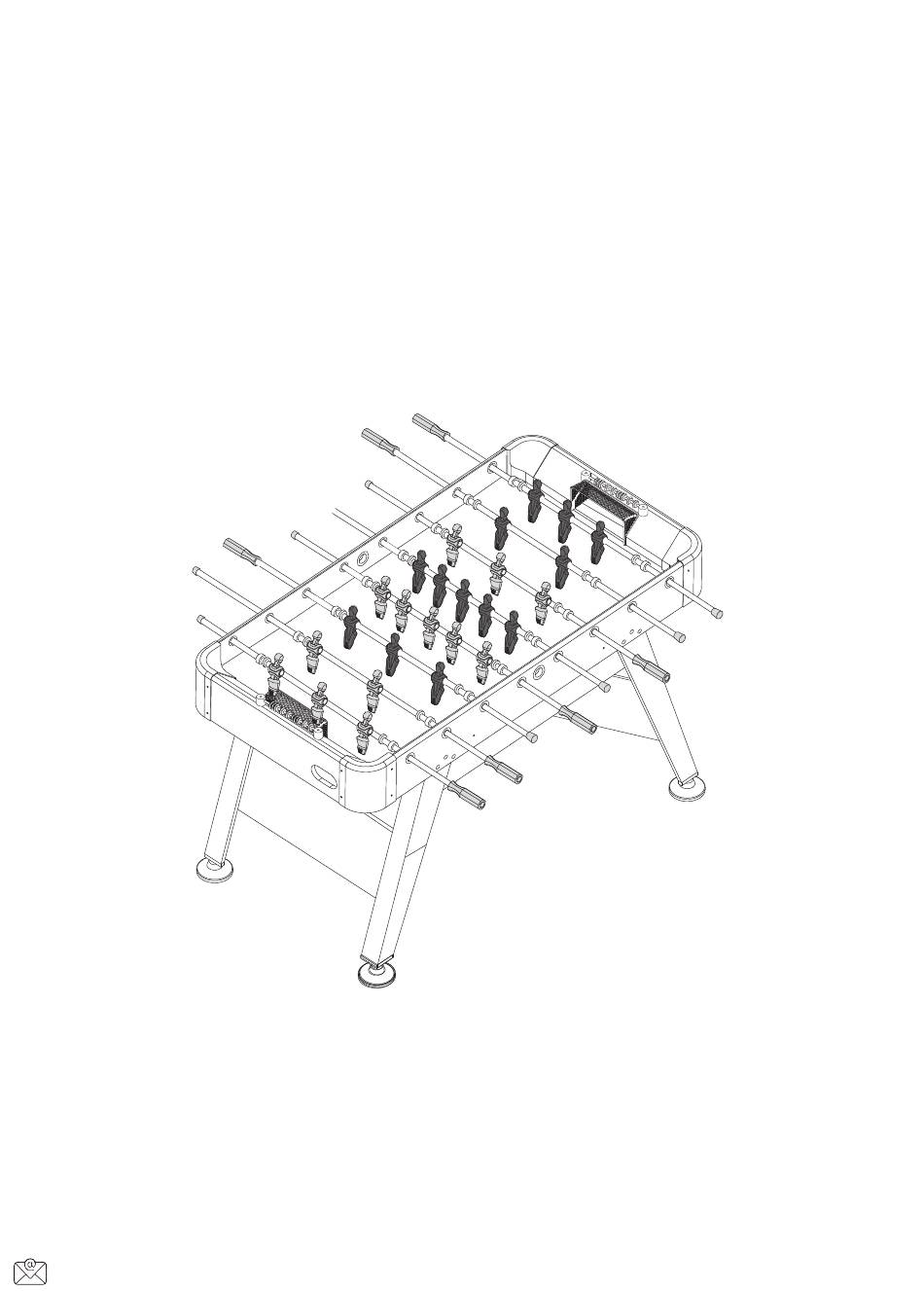

- Page 1 INSTRUCTION MANUAL Missing parts, damages, and any other problems, please contact us via email. raycheesport@gmail.com...
-
Page 2: Parts Identifier
English PARTS IDENTIFIER PART NUMBER FIG NUMBER FOR FIG. 1 PART QUANTITY PART NAME Side Apron FOR FIG. 1, 3 FOR FIG. 2 FOR FIG. 5 FOR FIG. 5 End Apron Playfield Left Leg Right Leg FOR FIG. 4 FOR FIG. 7 FOR FIG. -
Page 3: Before Assembly
English ACCESSORIES Soccer Ball HARDWARE FOR FIG. 5 FOR FIG. 5 FOR FIG. 4 4x35mm Round Allen Key 1/4''x1-1/8'' Bolt 1/4'' Washer Head Screw FOR FIG. 8 FOR FIG. 1, 3, 9 FOR FIG. 6, 7 4x35mm Flat 4x12mm Screw 4x15mm Screw Head Screw PRE-INSTALLED PARTS... - Page 4 English ASSEMBLY FIG. 1 Pre-installed Pre-installed Pre-installed Pre-installed Note: Do not tighten the screws at this step. FIG. 2 Note: Playfield graphic should face down when assembling.
- Page 5 English ASSEMBLY FIG. 3 Pre-installed Pre-installed Note: After this step, tighten Screw (A6). FIG. 4 FIG. 5 Pre-installed Note: DO NOT over tighten bolts.
- Page 6 English ASSEMBLY FIG. 6 FIG. 7 Note: Go back and make sure that all connections are tight. DO NOT HOLD THE TABLE DO NOT LEAN THE HOLD BY THE CABINET BY THE LEGS TABLE ON ITS LEGS TABLETOP CAUTION Two strong adults are recommended to turn over the table as shown. 1.
- Page 7 English ASSEMBLY FIG. 8 FIG. 9...
- Page 8 English ASSEMBLY FIG. 10 Note: Hole at the end of Rod designates handle location. See Arrow Location Below. The Hole The Hole...
- Page 9 English ASSEMBLY FIG. 11 Order of players (Overhead View) Note: The Rods have a hole at the end where their Handles will go. & = Black & 19 & 22 Note: Players of the same team color should have Handles on the same side, and each team’s players should be facing their opponent.
- Page 10 English ASSEMBLY FIG. 12 Missing parts, damages, and any other problems, please contact us via email. raycheesport@gmail.com...
