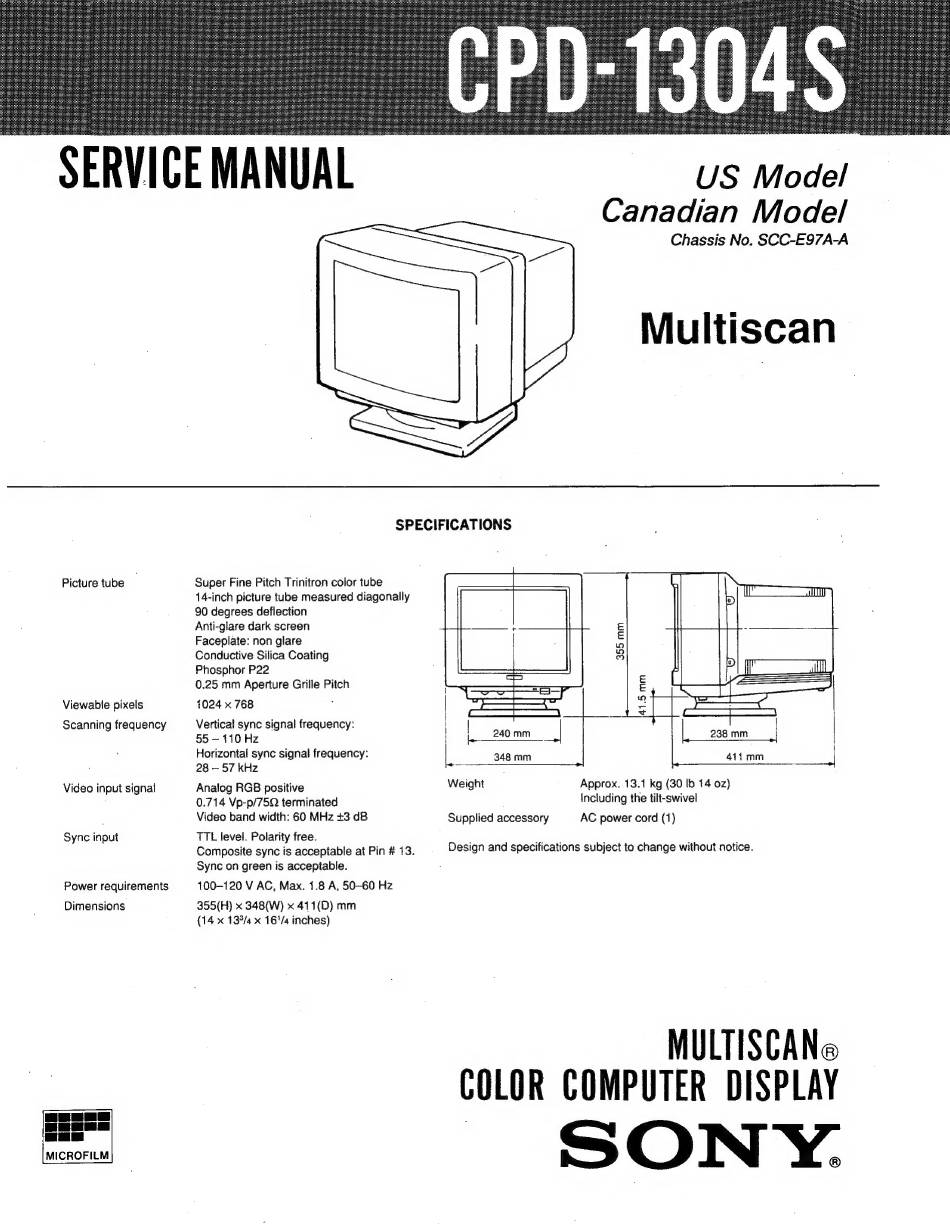

Sony MULTISCAN CPD-1304S Service Manual

SERVICE MANUAL
Picture tube
Viewable pixels
Scanning frequency
Video input signal
Sync input
Power requirements
Dimensions
MICROFILM
US Model
Canadian Model
Chassis No. SCC-E97A-A
Multiscan
SZ
SPECIFICATIONS
Super Fine Pitch Trinitron color tube
14-inch picture tube measured diagonally
90 degrees deflection
Anti-glare dark screen
Faceplate: non glare
Conductive Silica Coating
Phosphor P22
0.25 mm Aperture Grille Pitch
1024 x 768
Vertical sync signal frequency:
55 — 110 Hz
Horizontal sync signal frequency:
28 — 57 kHz
Analog RGB positive
0.714 Vp-p/75Q terminated
Video band width: 60 MHz +3 dB
TTL level. Polarity free.
Composite sync is acceptable at Pin # 13.
Sync on green is acceptable.
100-120 V AC, Max. 1.8 A, 50-60 Hz
355(H) x 348(W) x 411(D) mm
(14 x 13°/4 x 16'/4 inches)
355 mm
Weight Approx. 13.1 kg (30 Ib 14 02)
including the tilt-swivel
Supplied accessory AC power cord (1)
Design and specifications subject to change without notice.
MULTISCANe
COLOR COMPUTER DISPLAY
SONY.
