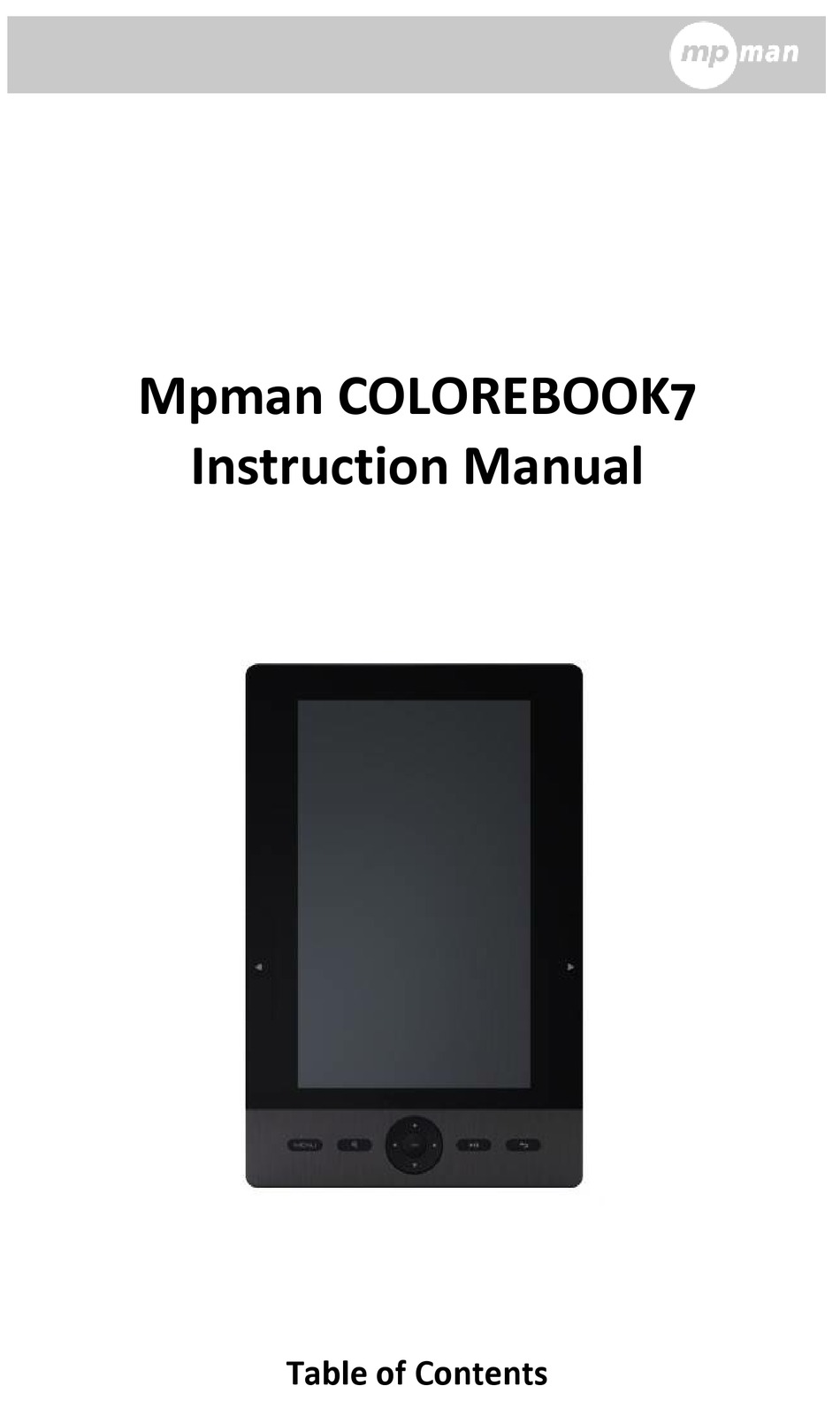

- Page 1 Mpman COLOREBOOK7 Instruction Manual Table of Contents ...
-
Page 2: Table Of Contents
Disclaimer ……………………………..………………………..……………………………………..…… 1 Introduction …………………………………………………..…………..………………………….…. 2 Package Content ……………………………………………………..………………………………... 3 Getting Started …………………………………………..………….….………………..……………. 2 Parts and Controls ……………………..………………………………….…..…..… 2 Power on Reader………………………..…………………………………….………. 3 Charging ………………………………….……………………………………….. 3 Inserting Memory Card ……………………………………………..……..….. 4 Starting from Home Menu ……………………………..…………..……..….. 5 Entering Option Menu ………………………………………………….…….. 6 Importing & Transferring Content …………………………………………………………...… 6 Importing Content ………………………………….………………………….…… 6 Importing DRM Content ………………………………………………………..…..6 ... -
Page 3: Disclaimer
Disclaimer All the information, design and specifications contained in this manual were correct at the time of publication. However, as the product is under development and upgrading, the final device may have a slightly difference in appearance or modified functionality than presented in this manual. Introduction COLOREBOOK7 is an ebook reader with full color display screen. COLOREBOOK7 supports ebooks encrypted with Adobe DRM. Package Content Ebook Reader USB cable Leather Cover Instruction Manual ... -
Page 4: Getting Started
Getting Started Parts and Controls Power button – press and hold for 3 second to turn on/off, 1 press and hold 6 seconds to reset Next pg button – press to turn to next page 2 Previous pg button – press to turn to previous page 3 OK / Enter Button 4 Zoom button – press to adjust font size or to zoom in/out ... -
Page 5: Charging
Getting Started Power On and Off the Reader • Press and hold the [Power] button for 2 seconds to turn on Reader. • It may take a few moments for reader to turn on and loading the content. • If Reader does not turn on, charging is required. • To turn off Reader, press and hold [Power] button for 2 seconds. Charging the Reader • You need to charge the Reader prior to using it for the first time or when battery power is low. • You can charge the Reader via: • Connect to AC source via supplied AC adapter • Connect to PC or other USB adapter via supplied USB cable. • When charging through PC, you cannot operate the Reader. To operate ... -
Page 6: Inserting Memory Card
Getting Started Inserting Memory Card The Reader supports SD/SDHC/MMC card. To insert a Memory card: • Open the SD cover. • Check that the SD card is in the correct position with the contact pin facing upwards as illustrated below. You may damage the card and the reader if SD card is not inserted in correct position. • Push the SD card into the card slot until it clicks. • To remove SD card, push the SD card once again until it clicks. • When a SD card is inserted in or ejected from the reader, it may take few seconds for the reader to update the content. • Please avoid inserting SD card when other operation is running as this may cause the system hang. ... -
Page 7: Starting From Home Menu
Getting Started Starting from Home Menu When the Reader is turn on, you will enter into the Home Menu. 1. Continue Reading • ‐display the page of the last read • book. Press <OK> button to • open the last read page. • 2. Library • Library ‐display the list of books •... -
Page 8: Entering Option Menu
Getting Started Entering Option Menu To access extra functions available, press [Menu] button to display the Option Menu as illustrated. Press the directional key to move cursor to desired item. Selected item will be highlighted in dark. Press <OK> to enter. To exit from Option menu, move cursor to and press <OK> to confirm. Alternatively, press the <Return> button to exit. To sort books by different categories: Title, Author, Category, Date, Format Jump to a specific page Read from previously added bookmarks ... -
Page 9: Importing Drm Content
Importing Content • The Reader supports USB Mass Storage Device function. • To import contents (ebooks, video, audio, photo etc) into the reader, connect the reader to PC via the supplied USB cable. • Upon successful connection to PC, the reader will enter USB mode and all operation will be halted. • Go to [My Computer], double click on the reader’s disk to open. • Perform normal file management operation like other USB device. Importing DRM Contents The Reader supports Adobe DRM contents. Adobe Digital Editions (ADE) is required. Installing Adobe Digital Editions (ADE) • The ADE installer is preloaded into the Reader. •... -
Page 10: Authorizing Pc & Reader
Importing and Transferring Content Authorizing PC and Reader • Upon registration, return to the ADE window. Enter the username and password to activate your Adobe account. • After activation, connect the Reader to PC. ADE will detect the Reader and you are prompted to authorize device. • After authorization, you will be able to find the Reader recognized in ADE as below. Contents inside the Reader will be displayed on the right hand windows. • • You can now start downloading or buying ebooks from online Ebook stores supporting Adobe DRM. ... -
Page 11: Reading
Reading Books Opening Book • Books transferred to Reader will be listed in Home Menu. • Reader supports ebooks in epub, pdf, txt format. • Use the <Directional> buttons to move the cursor to select book and press <OK> to open. Book Page Interface Current Page / Total Page ... -
Page 12: Adjusting Font Size
Reading Books Adjusting Font Size • In reading page, press <Zoom> button to enter the font size menu. • There a 5 font sizes available: Small, Medium, Large, XLarge, XXLarge. • Move the cursor to the desired font size then press <OK> to confirm. • It may take some time for the fonts to be resized. Zooming In/Out • You will need to use zooming function to enlarge images available in the ebook (epud & pdf file) • From the size menu, select [Elarge] • Zoom menu will appear. • Move the cursor to the desired zoom level and press <OK>. • In zoom mode, use <Directional> buttons to pan across the zoomed page. ... -
Page 13: Using Option Menu In Reading
Reading Books Using Option Menu in Reading In Reading page, press <Menu> button to enter Option Menu. Options available: Add / Delete Bookmark Bookmarks Go to Page Music Auto flip Book Information Rotate Display Settings Add to Favorite Adding Bookmark When reading, turn to the desired page that you would like to bookmark. Press <Menu> button, move the cursor to [Add Bookmark] and then <OK>. Deleting Bookmark • Turn to the bookmarked page that needs to be deleted. Press <Menu> and move the cursor to <Delete Bookmark>. Press <OK> to ... - Page 14 Reading Books Read from Bookmarks in Home Menu • From Home Menu, press <Menu> and select [Bookmarks] to enter Bookmark List. Upper window displays a quick preview of the selected book. Lower window displays the list of books with bookmarks. Press <OK> on the desired book to view the available bookmark list. • In the Bookmark List, move the cursor to the desired bookmark, press <OK> to open. • To delete bookmark from the Bookmark List, press <Menu> to display [Option Menu] and select [Delete] to confirm. ...
-
Page 15: Auto Flip
Reading Books Auto Flip You can set the Reader to [Auto Flip] mode. The auto flip duration available are: 10s, 20s, 30s, 40s, 50s, 1 min. Book Information You can check the information of the current book from the [Book Information] option. This will show: Title, Author, Publisher, File Type, Date added, File size, Publisher and Expiration. Depends on the source of ebook that you download/purchase, some of the information may not be available. Rotate ... -
Page 16: Add To Favourite
Reading Books • In landscape view, the Option Menu is divided into 2 pages. To access options in the second page, move the cursor to [More>] icon at the top right corner of the Option Menu and then enter • To return to previous page, move the cursor to [< Back] and then enter Display Settings ... -
Page 17: Background Music
Reading Books Background Music Playback in Book page • The reader supports background music playing when reading books or viewing photos. • To control music playback in book page, press <Music> button and a mini music player control bar will appear at the bottom of the page. • Press the music control buttons to control music playback. • To return to book page, press <Return> button and resume normal book reading controls. ... -
Page 18: Playing Audio File
Playing Audio File Music Player • From Home Menu, press <Menu> to display Option Menu. • Move the cursor to [Music] and press <OK> to confirm. • In the Music player, press <OK> to play/pause music playing • Press <Directional Right> to play next song, press and hold to Fast Forward • Press <Directional Left> to play previous song, Press and hold to Fast Rewind • Press <Directional Up> to increase volume • Press <Directional Down> to decrease volume Using Option Menu in Music Player ... -
Page 19: Viewing Picture
Viewing Picture Gentle Reminder: Please organize the pictures into a specific folder for the ease of navigation. • From Home Menu, press <Menu> to display Option Menu. • Move the cursor to [Photo] and press <OK> to confirm. Upper window displays a quick preview of the selected photo Lower window displays the file list in the reader. • Use the <Directional> buttons to navigate through the files/folders. • Press <OK> on the selected photo to view a full screen display. • In full screen mode, press <Directional Left/Right> to view previous and next picture. Zoom In/Out Picture • There are 3 zoom levels available. To zoom in picture, in full screen mode, press <Zoom> button to change different zoom level. ... -
Page 20: File Explorer
File Explorer • From Home menu, press <Menu> [Explorer] • Press <Left> / <Right> to select Internal / SD card memory and press [OK] to enter. • Press <Return> to exit from current directory and the cursor will move to the top for memory selection. Copy / Paste file • You can copy files/folders from SD card to internal memory and wise versa. ... -
Page 21: Settings
Settings • From Home Menu, press <Menu> to display Option Menu. • Move the cursor to [Settings] and press <OK> to confirm. Time & Date To set the clock and date of the Reader. Press <Directional Left/Right> buttons to move the cursor. Press <Directional Up/Down> buttons to input value. Device Standby • To enable / disable auto standby mode. • To manually set the reader to standby mode, press the <Power> button once in any menu. • Press the <Power> button once to wake up the reader from standby mode. ... -
Page 22: Troubleshooting
Troubleshooting 19 If the reader does not function as it is expected, please try the following steps. The Reader is not responding or can’t be turned on. • Reset the reader by press and hold the power button for 6 seconds. The reader will be forced shutdown if it is on and you are required to restart the reader again. • Battery has been fully depleted. Please charge the reader via USB or USB AC Adapter. ... -
Page 23: Precautions And Maintenance
Precautions and Maintenance n Battery • Charge the battery only in temperature that ranges from 0 to 35 degree Celsius. • Do not charge reader if the battery is found damaged or leaking. On Operation • Never subject reader to extremes of light, temperature, moisture or vibration. • Never wrap reader in anything when it is being used or charged. Heat may build up in reader while charging or if it used for an extended period of time. • Do not use or store reader in a location subject: A. Extreme high temperature, such as in a sun‐heated car B. - Page 24 On Cleaning and Maintenance • If reader does get wet, turn off reader immediately. Wait for reader to dry completely before turning on again. • Clean the screen with a soft cloth; be careful not to wipe it with anything abrasive. When carrying your reader in bag, keep reader in the protecting case supplied to avoid scratches • If reader needs service, please consult the authorized dealer through the contact information provided in the warranty card. Faulty service may void the warranty. . On SD card • After inserted a SD card, if the reader has no response, please take out and insert again. • Do not remove SD card or turn off reader during data writing or reading to prevent damage to data and to the reader. • Make sure the SD card is unlocked before writing or deleting data in the SD card. ...
-
Page 25: Product Specifications
Product Specifications Display 7 inch TFT‐LCD Display, 800x480 pixels Brightness: 200cd/m Storage memory Built in memory: 2GB Supports SD/SDHC/MMC up to 16GB (FAT format) Media File Format supported Ebook: epub, pdf, txt Audio: wma, wav, ogg, aac Photo: jpg, bmp, gif Connectivity Data transfer: USB 2.0 High Speed Audio: 3.5mm audio jack Power: DC jack, USB jack Miscellaneous Built in stereo speaker Clock / Date Real time battery indication Battery life Reading – up to 6 hours Music – up to 20 hours (with backlight off) Charging Power: DC 5.0V, 1.0A Duration: 4 hours (approx) Minimum system requirement (USB Mass Storage) Windows 2K, ME, XP, Vista, Win 7, Mac OS 10x Physical properties Dimension: 206.4 x 133 x 12.9 mm (approx) Weight: 340g (approx) **Design and specifications are subject to change without prior notice ... -
Page 26: Copyright And Trademark Notice
(illustrations, related documents, etc.) in whole or in part without the permission of the copyright holder. Additionally, use of the data of this product or the contents of this manual is not allowed without Mpman’s permission except for personal use. ... - Page 27 www.mpmaneurope.com ...
