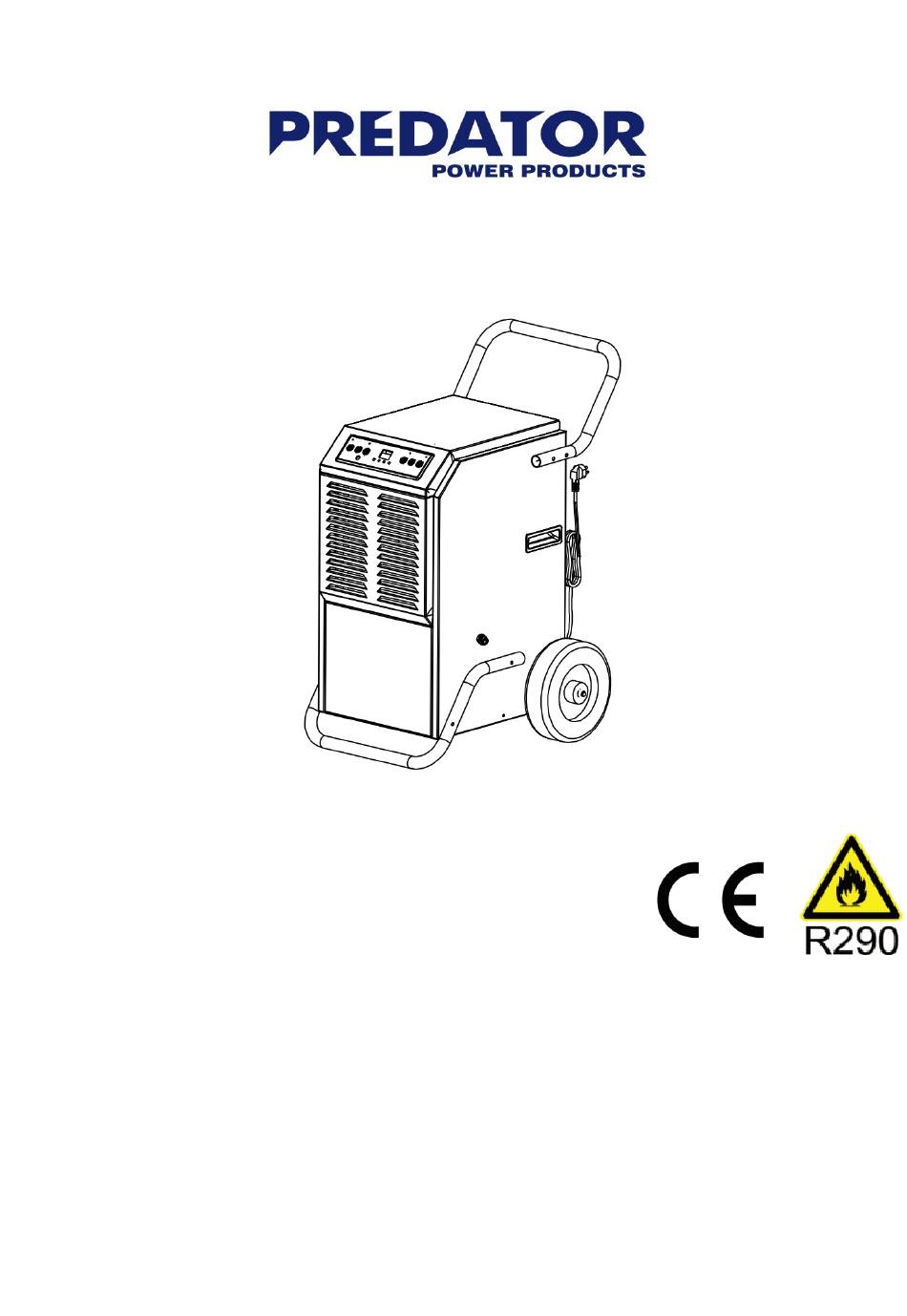

INSTRUCTION MANUAL

DEPT098

Please keep this manual for future reference!

Thank you for selecting our dehumidifiers. This manual details the proper use and

maintenance of these dehumidifiers. Please take a few minutes to read this

manual, and please keep it for further reference.

Table of Contents

Need help?

Do you have a question about the DEPT098 and is the answer not in the manual?

Questions and answers

Summary of Contents for Predator DEPT098

Page 1 INSTRUCTION MANUAL DEPT098 Please keep this manual for future reference! Thank you for selecting our dehumidifiers. This manual details the proper use and maintenance of these dehumidifiers. Please take a few minutes to read this manual, and please keep it for further reference.
Page 2: Table Of Contents
CONTENTS BEFORE YOU BEGIN..................1-4 IMPORTANT SAFETY INSTRUCTIONS..............5-9 FEATURES......................10 SPECIFICATIONS ....................10 PRODUCT DRAWINGS..................11 INSTALLATION.....................12 MACHINE SETUP AND OPERATION..............13-15 ERROR.........................16 MAINTENANCE....................17 MACHINE STORAGE...................18 TROUBLE SHOOTING..................19...
Page 3: Before You Begin
1. BEFORE YOU BEGIN 1.1 PRODUCT DESCRIPTION The dehumidifier is used to remove excessive moisture from the air. The resulting reduction in relative humidity protects buildings and their contents from the adverse effects of excess humidity. The environmentally friendly R290 is used as the refrigerant. R290 has no damaging influence on the ozone layer (ODP), a negligible greenhouse effect (GWP) and is available worldwide.
Page 4 above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Page 5: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS Your safety is the most important thing we concerned! 2.1 OPERATIONALPRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ◼ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Page 6 ◼ Do not operate the unit if it is dropped, damaged or showing signs of product malfunction. ◼ Do not clean the appliance with any chemicals. ◼ Ensure the unit is far away from fire, inflammable, or explosive objects. ◼ The unit shall be installed in accordance with national wiring regulations.
Page 7 SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing a dehumidifier with R290. 2.2.1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
Page 8 removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed. 2.2.7 Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
Page 9 be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: -those capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; -that there no live electrical components and wiring are exposed while charging, recovering or purging the system;...
Page 10: Features
⚫ Built-in Auto Defrost System to protect key working components ⚫ Adjustable Humidity ⚫ Timed Operation ⚫ Quiet Running ⚫ Optional Drainage Type ⚫ Energy-saving design 4.SPECIFICATION Model No. DEPT098 28.7L/D (27℃, RH60%) Dehumidifying Capacity 50L/D (30℃, RH80%) Rated Voltage AC220~240V Rated Frequency 50Hz 602W (27℃, RH60%)
Page 11: Product Drawings
5. PRODUCT DRAWINGS Front Control Panel Pushing Handle Air Inlet Lift Handle Drainage Port Big Wheel Back Air Outlet Power cord hook Power Cord Support Frame Grille...
Page 12: Installation
6. INSTALLATION • Install the included drain pipe to the draining nozzle on the machine and direct the pipe to the desired area before operate the machine. • When the water pump is full, it will start working automatically. The “Full” indicator will illuminate red. After 35 seconds, the water pump will stop and the “Full”...
Page 13: Machine Setup And Operation
7. MACHINE SETUP AND OPERATION 7.1 Button Function Press this button while on electric, screen light on, machine automatically goes to continuous mode, display screen shows environmental humidity, compressor on after fan run for 3 seconds; press this button again, compressor stops, machine goes to standby mode, fan will run for another minute and stop.
Page 14 press, press the button for 1 second can increase the humidity continuously; press this button to set the time after press “TIMER”. Decrease the humidity by press this button at normal mode, humidity decrease 5%RH with each press, buzzer rang each time with the press, press the button for 1 second can decrease the humidity continuously;...
Page 15: Error
seconds, the water pump will stop working with the light off. 7.2 Operation 1) When the water pump is full, the “FULL” light goes on red and alarm goes on after 5 seconds. Buzzer beeps 15 times and the compressor and fan shut off.
Page 16: Maintenance
(1) “E1”: If the temperature sensor got failure, it will show “E1”. The system works in circle of dehumidification for 30 minutes and defrosting for 15 minutes. We should replace the failure temperature sensor with a new one. (2) “E2”: If the humidity sensor got failure, it will show “E2”. The humidity adjusting button will not work.
Page 17 9.1 Clean the machine with a soft wet cloth. 9.2 Pull the louver on the front panel out to gain access to the filter. 9.3 Remove the filter mesh out of the unit. 9.4 Use a clean rag to adsorb the surface dust on the filter mesh. If the filter is extremely dirty, use tap water to flush the filter.
Page 18: Machine Storage
10. MACHINE STORAGE If you don’t use the unit for an extended period of time, please store it per the following steps: (1) Clean the filter mesh. (2) ATTENTION: the evaporator inside the machine has to be dried out before the unit is packed to avoid component damage and molds. Unplug the unit and place it in a dry open area for days to dry it out.
Page 19: Trouble Shooting
11.TROUBLE SHOOTING Please confirm by after-sale service for the following conditions. trouble cause solution Unit is not plugged in Plug in the unit Machine does not run To protect the machine, use it only Room temperature under 5 when ambient temperature is between degrees or above 35 degrees.
