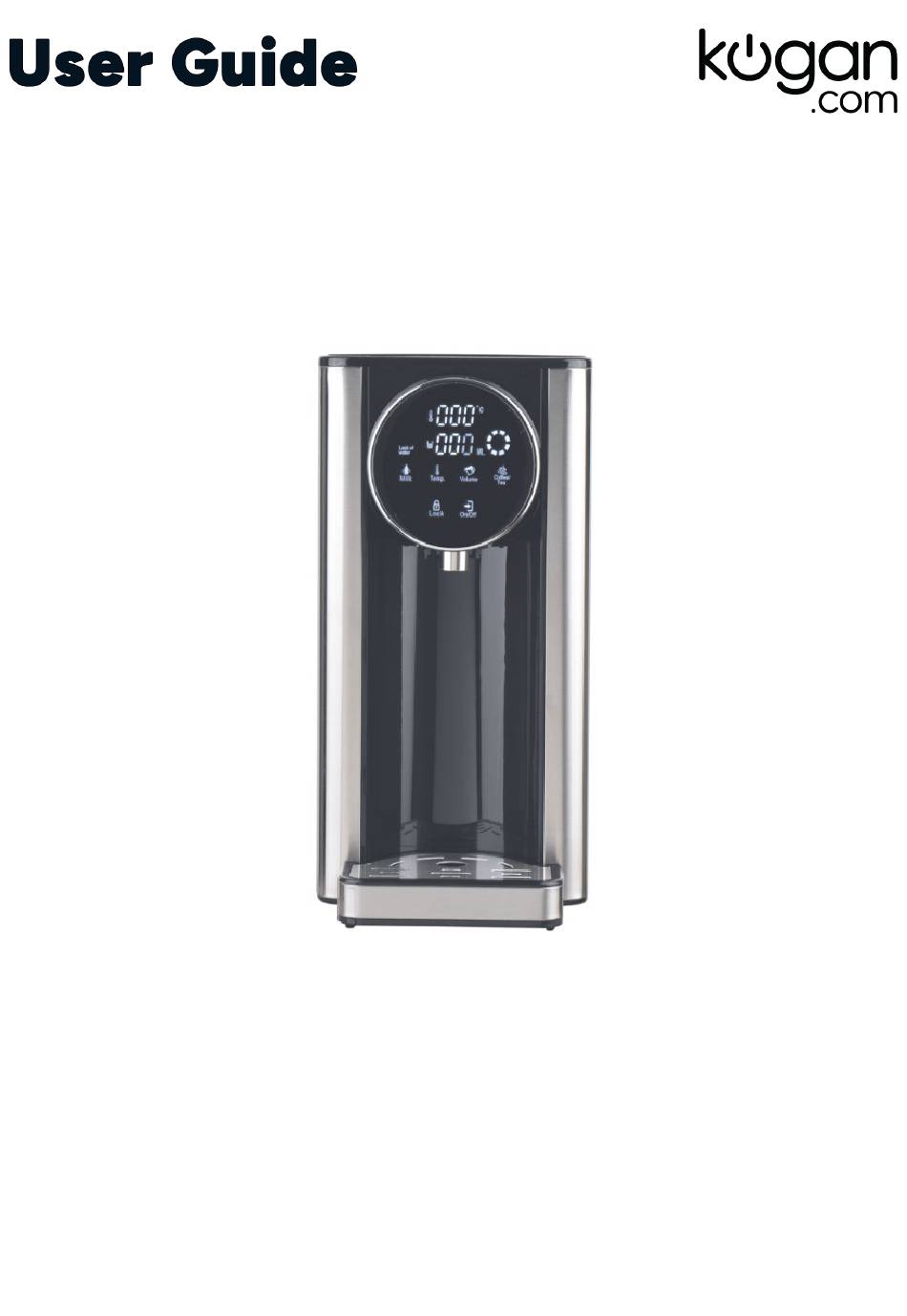

- Page 1 Instant Hot Water Dispenser KA22HWDSSDA...
-
Page 2: Safety And Warnings
Use the appliance only to heat water. Do not fill above the ‘MAX’ indication or operate if water is below the minimum level. • Unplug the appliance before cleaning and ensure it has cooled thoroughly. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. - Page 3 • Do not operate the appliance if it malfunctions or is not working properly. Cease use immediately and contact help.Kogan.com for support. • This appliance is intended for household and similar use, such as: • Staff kitchen areas in shops, offices, and other working environments.
- Page 4 Overview Water Tank Lid Water Tank Lower Cover Drip Tray Drip Plate Spout Control Panel...
-
Page 5: Control Panel
Control Panel Temperature Display Dispensing Indicator Volume Display Coffee/Tea Button Volume Button On/Off Button Lock Button Temperature Button Milk Button Lack of Water Indicator Descaling Indicator... -
Page 6: Operation
Operation Control Panel Functions • Press and hold for 3–5 seconds to unlock. • The screen will lock automatically after 15 seconds of no Lock Button user input. • Press the button again to lock the screen manually. Temperature Set the desired temperature: 45°C, 55°C, 65°C, 75°C, 85°C, Button 100°C, or 000 (normal temperature water). -
Page 7: Filling The Water Tank
Filling the Water Tank Open the lid, fill the water tank to the desired level (between the MIN and MAX indicators) using one of the methods illustrated below, and close the lid. B Fill the Tank Without Removing A Remove the Water Tank Obtaining Desired Water Place a cup on the removable water tray, ensuring alignment with the spout. -
Page 8: Cleaning And Care
Cleaning & Care • Always switch off and unplug the water dispenser, allowing it to cool completely before cleaning. • Do not immerse the appliance in any liquid to prevent damage. • Avoid using chemical, metal, wooden, or abrasive cleaners on the appliance housing. Clean the exterior with a damp cloth. -
Page 9: Resetting The Thermostat
Emptying the Water Tray When full, stabilise the appliance with one hand, remove the tray with the other, empty it, and reinsert it firmly. Resetting the Thermostat If the appliance malfunctions (e.g., no power or heating), unplug it and insert the reset key located underneath the drip tray into the reset hole at the rear of the appliance. -
Page 10: Error Codes
Error Codes Error Code Description Solution Refill the water tank to the MAX Lack of water. level. Temperature sensor (water Contact help.Kogan.com for inlet) issue. support. Temperature sensor (water Contact help.Kogan.com for outlet) issue. support. Contact help.Kogan.com for PC board issue. -
Page 11: Specifications
Specifications Volume 2.7L Rated 220-240V, 2000-2400W Frequency 50/60Hz Disposal This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. - Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
