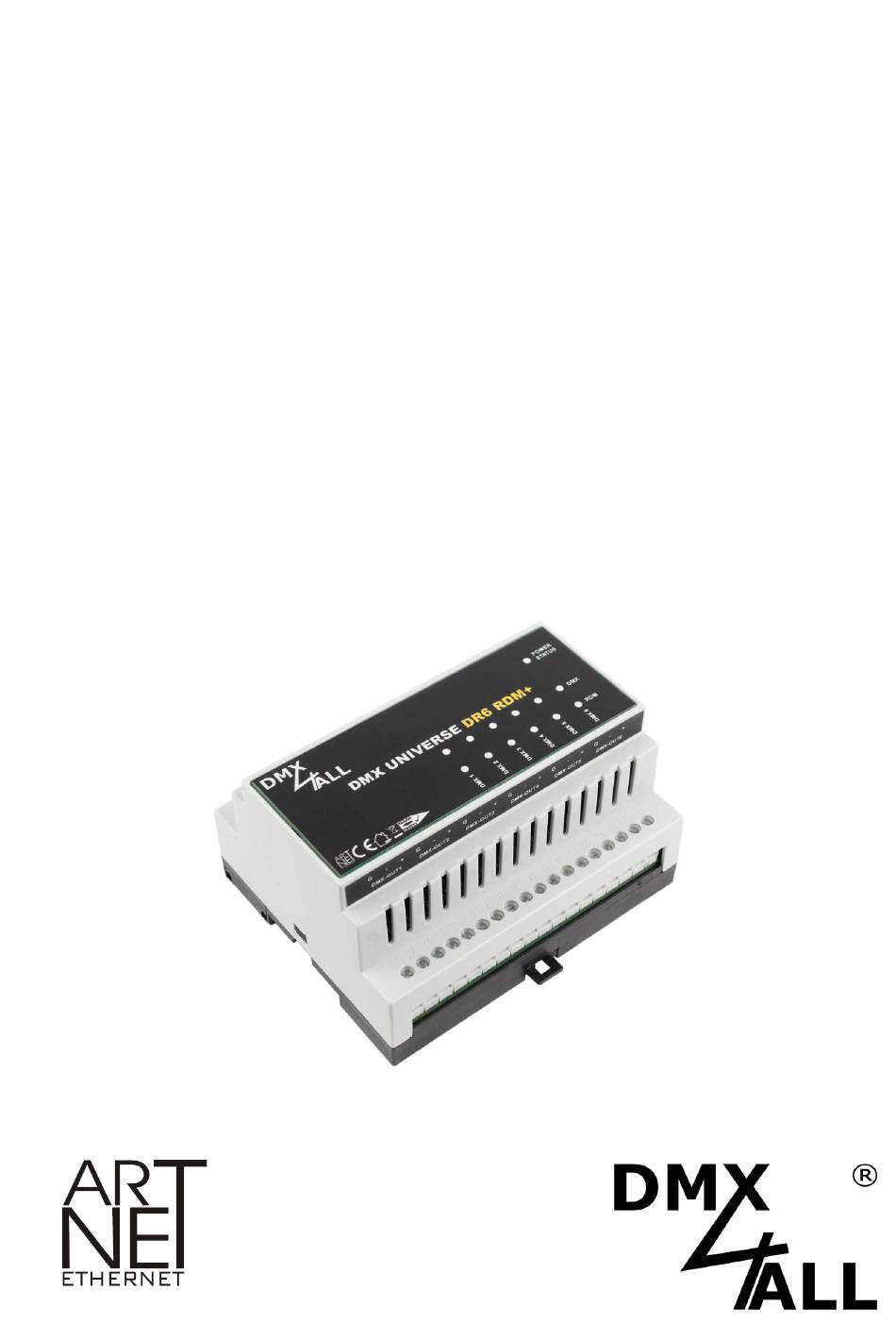

- Page 1 DMX UNIVERSE DR6 RDM+ User manual Art-Net™ Designed by and Copyright Alderamin Group Ltd.
-
Page 2: Important Notes
DMX UNIVERSE DR6 RDM+ Important Notes For your own safety, please read this user manual and warnings carefully before installation. A firmware update is recommended after receipt the product. This is the only way to ensure that the device has the latest version. You can find the latest firmware on the homepage. - Page 3 DMX UNIVERSE DR6 RDM+ Description The DMX UNIVERSE DR6 RDM+ is an Ethernet to DMX gateway with up to 6 bidirectional DMX universes (DMX over Ethernet) and RDM functionality. 6 DMX ports The DMX UNIVERSE DR6 RDM+ offers 6 bidirectional DMX ports to which the DMX/RDM devices can be connected.
- Page 4 DMX4ALL Communication-Interface The DMX UNIVERSE DR6 RDM has an additional communication interface using the DMX4ALL-Commands via TCP or UDP packages. Top hat rail housing available The top-hat rail housing 1050 is available as accessory for the DMX UNIVERSE DR6 RDM+...
-
Page 5: Data Sheet
NO OUTPUT DMX-IN Fail HOLD last data (DMX-IN) CLEAR all to 0% SET all to 100% NO OUTPUT Protocol: Art-Net™ sACN (Unicast) DMX4ALL Commands LED display: Ethernet-Status (green + yellow) Device-Status (RGB) DMX-Status (6x RGB) RDM-Status (6x RGB) Dimensions: 105mm x 90mm x 60mm... - Page 6 DMX UNIVERSE DR6 RDM+ Connection POWER DMX UNIVERSE DR6 RDM+ DMX1 DMX2 DMX3 DMX4 DMX5 DMX6...
- Page 7 DMX UNIVERSE DR6 RDM+ Dimensions 60mm 105mm 90mm All details in mm...
- Page 8 DMX UNIVERSE DR6 RDM+ Accessories Power supply 12V Net work cable...
-
Page 9: Revision History
DMX UNIVERSE DR6 RDM+ Revision History Firmware V1.00 First release... - Page 10 DMX UNIVERSE DR6 RDM+ CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
- Page 11 DMX UNIVERSE DR6 RDM+ Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary. Initiation risk: For the installation of the board, the board must be connected and adjusted to foreign components according to the device paperwork.
- Page 12 Germany Last changes: 20.11.2024 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
