Summary of Contents for Trigger 4 PLUS

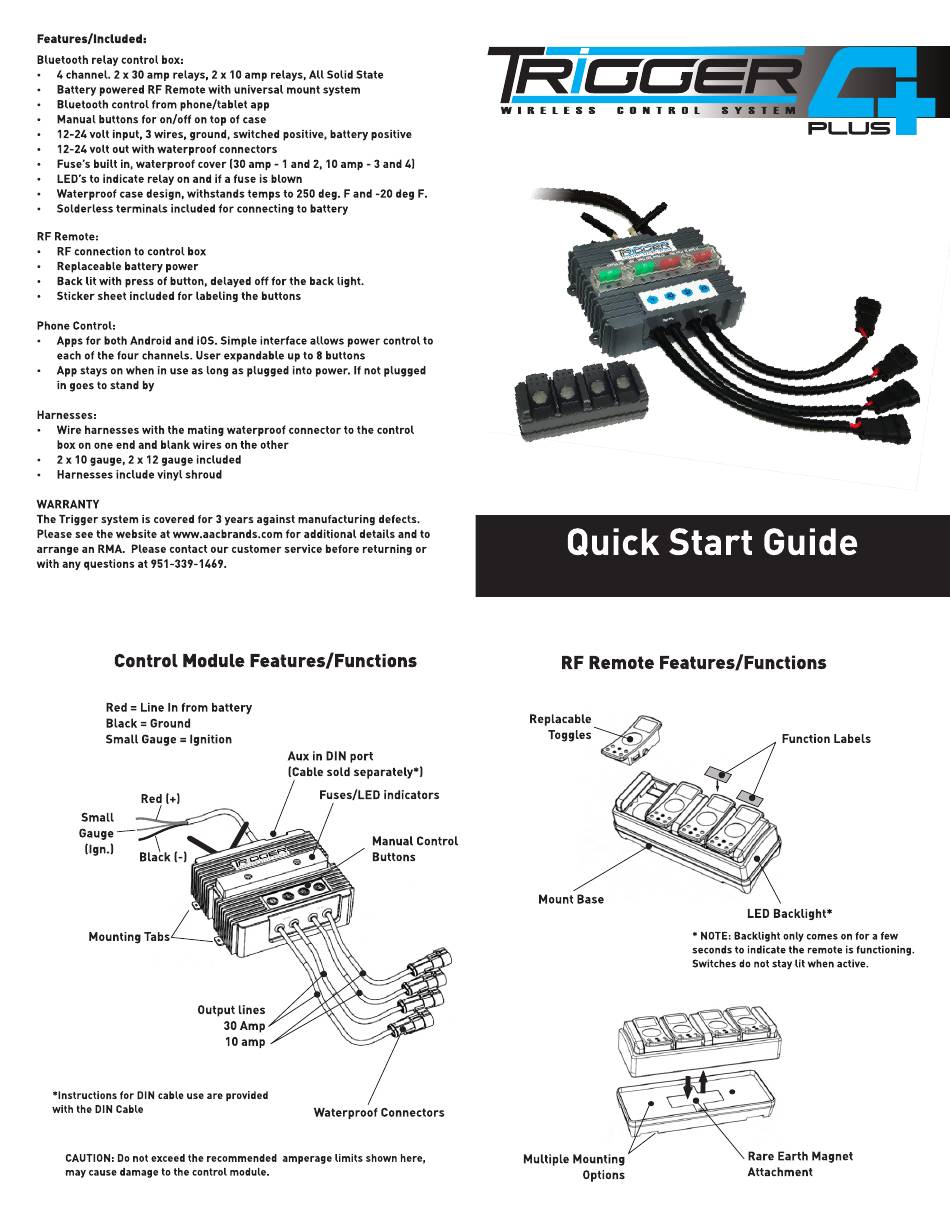

  • Page 1 Please go to www.triggercontroller.com for more detailed info...
  • Page 2 IOS and Android App Installation RF Remote Battery Installation CR 2025 3 Volt Battery NOTE: Arrow indicates Gasket “Close”.
  • Page 3 3mm x 13mm Flat head (x2) If running 12 volt power to the Pedestal, insert the 12 volt power wire included in the original Trigger 6 Shooter packaging (not included with Pedestal Kit). Wire is inserted on one side of the base, then routed through opening as shown.
  • Page 4 NOTE: Be careful not to over tighten as the screws may strip and the pivot Installation of Trigger Mounting Plate will no longer operate as required. (Use original Trigger 6 Shooter mount included in Trigger controller kit. Not included in Pedestal Kit) Please contact AAC for help or warranty support at www.triggercontroller.com...
  • Page 5 3) Install mount/Trigger onto the factory holes under the hood just behind the fuse box. See picture below for location detail. Note: for 2002 to 2009 it may be necessary to flip the bracket over so the Trigger is higher in the engine bay. NOTE: Route wires as required depending on installation requirements.
  • Page 6  Wiring the RF remote for 12 volt power White to headlamp circuit or Switched Pos (+) For switch pad backlight Black to Ground (-) Red to Switched Pos (+) Controls individual switch back lights To Switch Base Wiring for the back lighting on the RF switch pad includes 3 wires for connection. The RED is used to back light the individual switches when they are turned on and should be connected to switched ignition.
