Summary of Contents for Labtron LEGD-A11

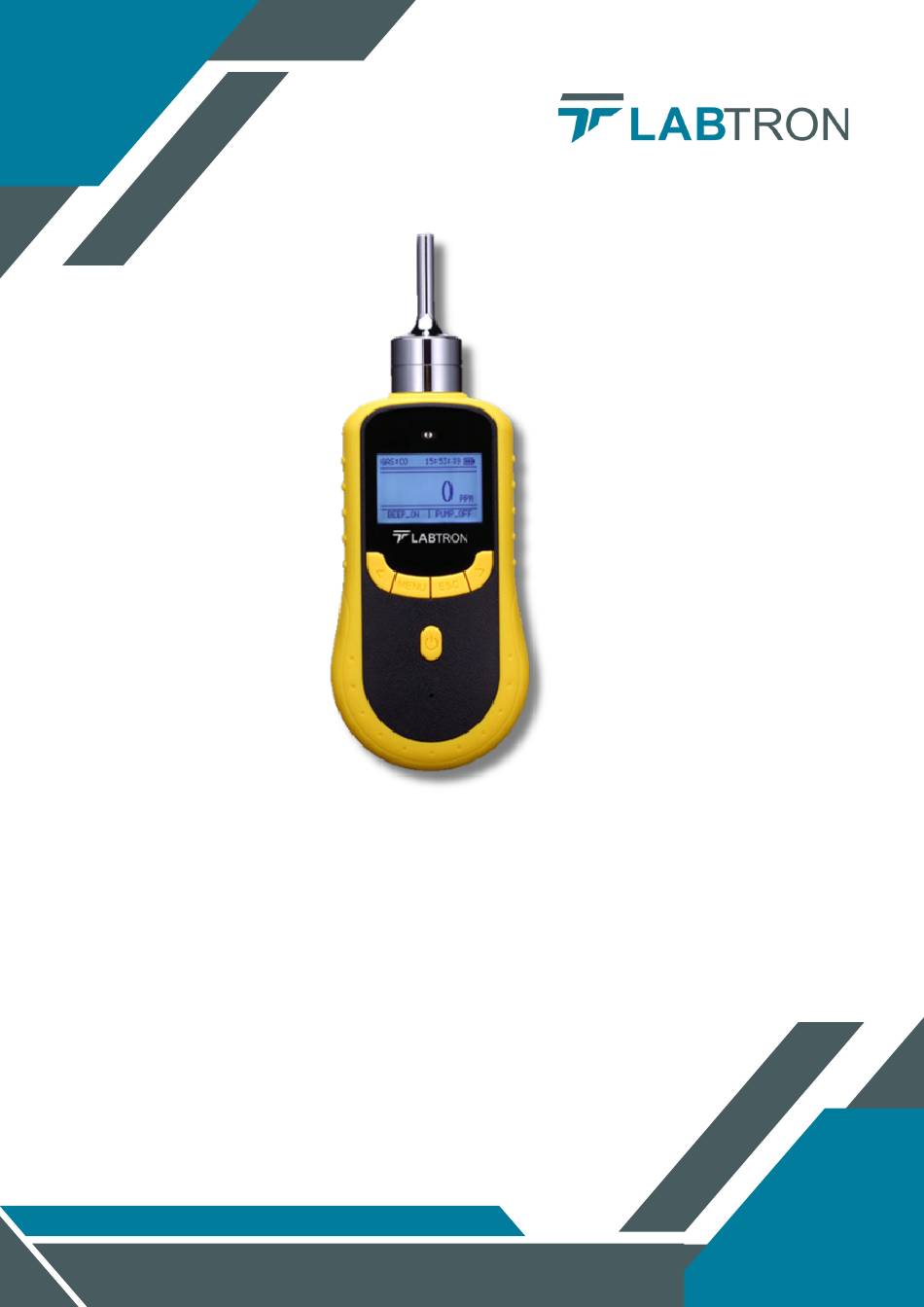

- Page 1 Handheld C2H4 Ethylele Gas Detector LEGD-A11 www.labtron.com | info@labtron.com...
-
Page 2: Table Of Contents
Handheld C2H4 Ethylene Gas Detector LEGD-A11 Index Sr.no Title Page no Safety Measures Introduction Features Specifications Applications Instrument Introduction Installation Operations... -
Page 3: Safety Measures
Handheld C2H4 Ethylene Gas Detector LEGD-A11 1. Safety Measures ▪ Before using the instrument, read the product instruction manual carefully. ▪ It is strictly forbidden to open the cover with power on site. ▪ It is strictly forbidden to replace the sensor with electricity. -
Page 4: Introduction
Handheld C2H4 Ethylene Gas Detector LEGD-A11 2. Introduction Handheld C2H4 Ethylene Gas Detector LEGD-A11 is a self-calibrated detector designed for quick response times, quite useful for immediate gas leak detection in case of accidents. Internal sampling pump facilitates rapid gas sampling and a high flow to ensure efficient detection of ethylene gas concentration. -
Page 5: Specifications
Handheld C2H4 Ethylene Gas Detector LEGD-A11 4. Specifications Model LEGD-A11 Gas Detected Ethylene (C₂H₄) Measuring Range 0 to 1000 ppm Measuring Resolution 1 ppm Precision ± 2% Full Scale Sampling Method Internal sampling pump with a flow rate of up to 1 L/min;... -
Page 6: Instrument Introduction
Handheld C2H4 Ethylene Gas Detector LEGD-A11 6. Instrument Introduction 1. Air Inlet 2. Air outlet 3. Air chamber of sensor 4. LCD 5. PLUS 6. MINUS 7. ESC 8. ON/OFF Operations Turn on/off: long press for 3 seconds to power on/off, short press to confirm or save data. -
Page 7: Operations
Handheld C2H4 Ethylene Gas Detector LEGD-A11 7. Operations When the detector is turned on completely, the device will enter the detecting interface. The gas type will be shown on the top left, and the time and battery power will be on the right. In the middle, there is the real-time concentration. If the detector is with data storage function, there will be the storage status at the top of the concentration: ON or OFF, and the total storage number. - Page 8 Handheld C2H4 Ethylene Gas Detector LEGD-A11 Calibration Span Note: Calibration needs to be done by professionals and with necessary accessories and standard gas. Prepare the standard gas before starting the span calibration. In detection mode, press “MENU”, select “calibrate span”, and press the ON/OFF button to enter. Then you will need to enter the password.
- Page 9 Handheld C2H4 Ethylene Gas Detector LEGD-A11 The Calibration process is as follows: ▪ Connect the detector with a standard gas cylinder by T-shape hose, ensuring that the bypass flowmeter has flow to empty. ▪ Enter the span calibration interface and set the “SET value” as the standard gas concentration.
- Page 10 Handheld C2H4 Ethylene Gas Detector LEGD-A11 Erase history data ▪ To make sure the detector works perfectly and you can check the history data quickly, we suggest you erase the history data regularly. Press MENU, choose the “Erase ex_ flash”, password is needed (the password is 9999), then press ON/OFF, and it shows “erasing”, and when finished, it will turn back to the detecting interface.
