Total TMXLI2001 Series Product Manual

Lithium-ion mixer
Hide thumbs

Advertisement

Table of Contents

PRODUCT MANUAL
LITHIUM-ION
MIXER
TMXLI2001xy, UTMXLI2001xy
(x=blank, 1,2,3,4,5,6,7,8,9, E, S,A,M)
(y=blank, -1,-2,-3,-4,-5,-6,-7,-8,-9, E, S,A,M)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMXLI2001 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Total TMXLI2001 Series

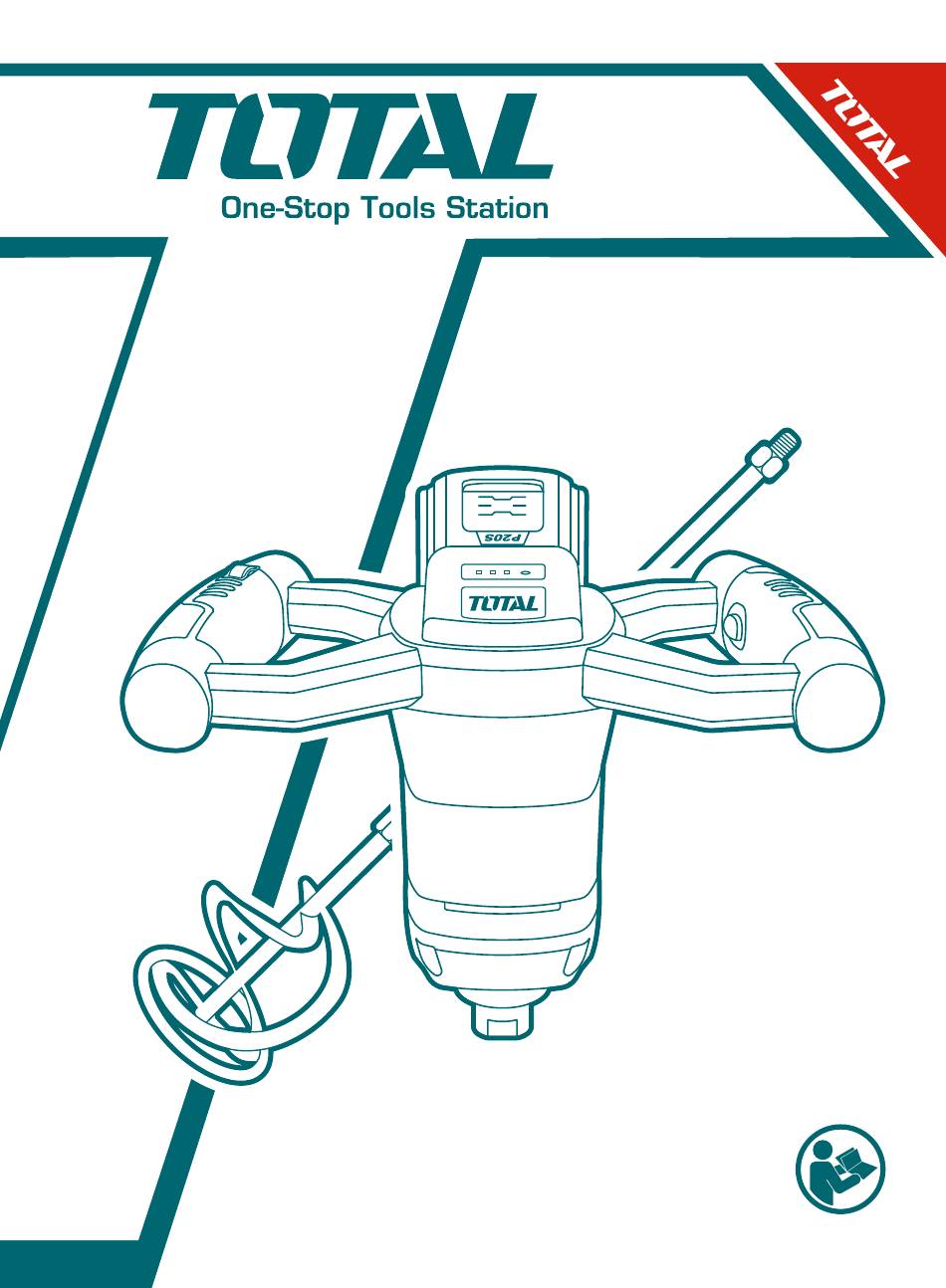

  • Page 1 PRODUCT MANUAL LITHIUM-ION MIXER TMXLI2001xy, UTMXLI2001xy (x=blank, 1,2,3,4,5,6,7,8,9, E, S,A,M) (y=blank, -1,-2,-3,-4,-5,-6,-7,-8,-9, E, S,A,M)

  • Page 2: General Safety Warnings

    | English Original Instructions GENERAL SAFETY WARNINGS ⚠ Warning! Work area safety Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 3 | English Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.
  • Page 4 | English operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories, and tool bits etc.
  • Page 5 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. Caution: only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
  • Page 6 | English Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life. Charge the battery cartridge with room temperature at 10°C-40°C (50°F- 104°F). Let a hot battery cartridge cool down before charging it. Charge the battery cartridge if you do not use it for a long period (more than six months).
  • Page 7 | English THE SYMBOLS IN INSTRUCTION MANUAL Read the instruction manual before using CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

  • Page 8: Additional Safety Warning

    | English ADDITIONAL SAFETY WARNING During the mixing process you should guide the mixer around the container to ensure a more consistent mix. Continue until all of the material is completely mixed. NOTE: Please follow the processing instructions of the manufacturer of the material. Always be aware that the greater the viscosity of the material, the greater the impact of the torque forces on the mixer.

  • Page 9: Specifications

    | English SPECIFICATIONS 1. Switch for on/off and speed 3. Spindle control 4. Mixing paddle 2. Lock-off button 5 Wrench (2)

  • Page 10: Technical Specifications

    | English Technical specifications TMXLI2001xy UTMXLI2001xy (x=blank, 1,2,3,4,5,6,7,8,9, (x=blank, 1,2,3,4,5,6,7,8,9, Model No. E, S,A,M) E, S,A,M) (y=blank, -1,-2,-3,-4,-5,-6,- (y=blank, -1,-2,-3,-4,-5,-6,- 7,-8,-9, E, S,A,M） 7,-8,-9, E, S,A,M） Voltage No-load Speed 0-650/min Max. mixing paddle dia. 100mm 4” Mixing pad thread...
  • Page 11 | English ⚠ Warning! Only use original battery pack and battery charger as below for this power tool: x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M) Product Battery pack TFBLI2001...
  • Page 12 | English OPERATION PICTURE...

  • Page 13: Operation

    | English OPERATION To install the battery into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage. Insert the paddle thread into paddle holder by turning it clockwise.
  • Page 14 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
  • Page 15 TOTAL TOOLS WORLD MADE IN CHINA T0523.V03 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.

This manual is also suitable for:

Utmxli2001 series
