USE AND CARE GUIDE
2 X 4FT. VERSASTRIP SERIES STRIP LIGHT

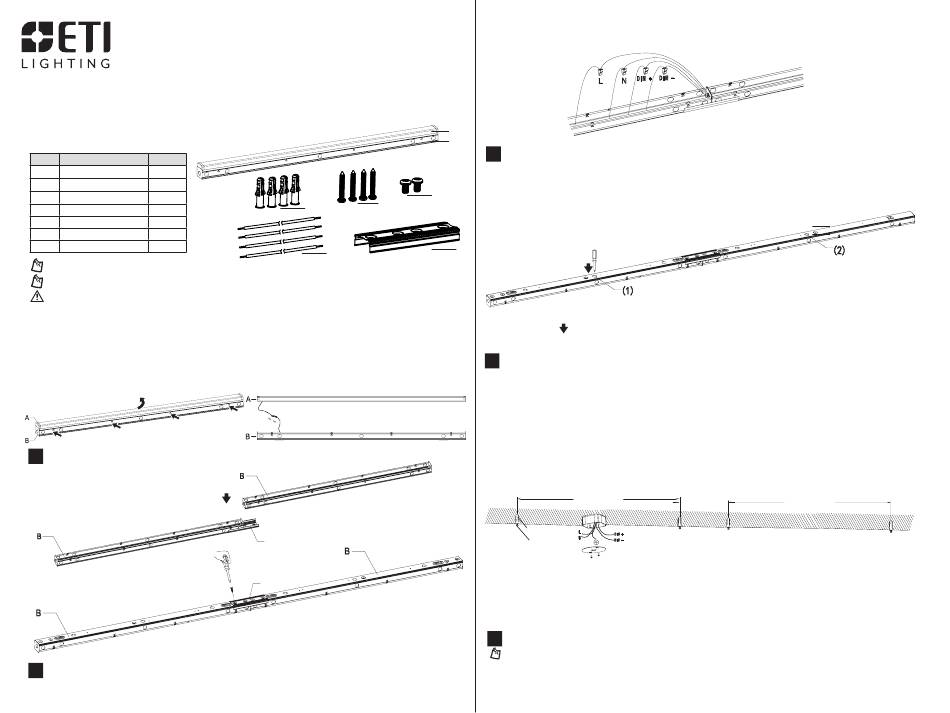

PACKAGE CONTENTS
Part Description Quantity
A Lens 2
B Fixture 2
C Drywall Anchor 4
D Mounting Screw 4
E Continuous Run Screw 2
F Continuous Run Wirings 4
G Continuous Run Bracket 1
NOTE: This fixture should be used on a 120-277 Volt fused circuit 50/60Hz.
NOTE: Keep your receipt and these instructions for proof of purchase.
WARNING: Shut off the power at the circuit breaker or fuse panel before removing the old fixture.
If you are unfamiliar with electrical installations, we recommend you contact a qualified electrician to do the installation.
INSTALLATION
Select a suitable location that can support the weight of the fixture.
SURFACE MOUNTING
With power disconnected to the electrical box, remove the existing fixture. Make a sketch of how the current fixture is wired (by wire color) or mark the wires
with masking tape and a pencil so you will know how to properly reconnect the wires to the new LED light fixture.
1 Press the sides of the fixture (B) inward, in the direction of the arrows, and remove the lens (A) with the other hand. After separating the lens (A) from
the fixture (B), unplug the wire connector to disconnect the terminal wires.
2
Place the two fixtures (A) on the continuous run bracket (G) and secure with the continuous run screws (E).
Model # 54598341 Part # VRST-8-840-MV-LVD
B01079801A VRST-8-850-MV-LVD
D
C
F
Wire Connector
G
G
E
SURFACE MOUNTING (CONTINUED)
A
B
3
Use continuous run wires (F) to connect two 4ft electrical wires of the lamp through the hole at the end of the fixture (B), and insert the wire directly
into the conductive hole of the terminal to complete the connection.
E
G
4
Hold the fixture (B) up to the mounting surface to determine which knock out hole to use for wiring the fixture. Mark two keyhole locations on the
mounting surface. Using a screwdriver, punch out one of the large knock out holes in the fixture (B) for wiring, based on the installation position. Drill a
1/8-in. pilot hole into the screw locations marked on the ceiling. You can also use an awl or nail to dimple the screw holes. Install a drywall anchor (C)
and a mounting screw (D) in each drilled mounting hole, but do not tighten fully.
37.4"(950mm)
C
D
5
Feed the electrical wires from the electrical box through the center of the electrical box plate (not included). Secure the electrical box plate (not
included) to the electrical box with the electrical box screws (not included).
NOTE: Additional hardware sold separately. Visit www.etissl.com for more information and to purchase.
B
2 Knock Out Holes
8.46"(271.5) 37.4"(950mm)
