Summary of Contents for Lenz J1772

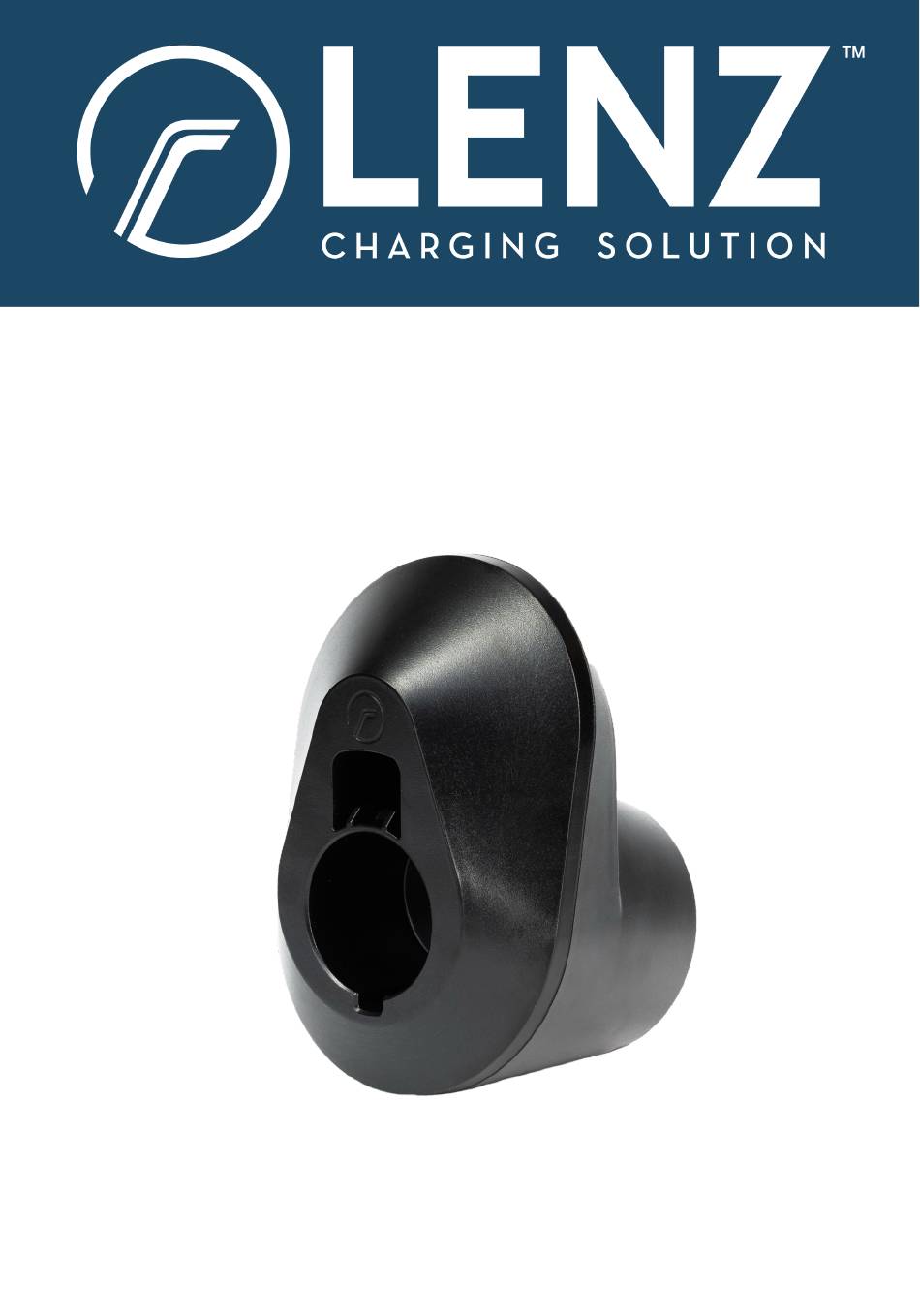

- Page 1 Wall-Mounted J1772 Holster & Cable Organizer User Manual & Installation Guide Model HLST-1772BK01 Includes IMPORTANT SAFETY INFORMATION. Read thoroughly before use. v051524...
-
Page 2: Safety Information
• Secure Mounting: Before proceeding with the installation, it is crucial to verify that the chosen wall or surface is both sturdy and capable of supporting the weight of the product, as well as the J1772 handle and cable. This will ensure a safe and reliable installation. -
Page 3: Product Overview
Product Overview A. Main Housing (”Holster”): Designed to securely hold and support your J1772 handle and cable. B. Installation Bracket: A bracket to secure and attach Mount Housing. C. Screws: Two (2) screws for attaching the Installation Bracket to the wall. - Page 4 Preparation Electric Vehicle (EV) Charging Cable and Handle: This product is designed to securely hold and support your J1772 EV charging cable and handle. Please make sure you have the appropriate cable and handle that are compatible with your EV charging system.
-
Page 5: How To Install
How to Install Step 1: Mark and Drill Starter Holes: Mark the desired location and drill holes for mounting plate (Part A). With the appropriate drill bit, carefully drill starter holes at the marked locations. Step 2: Secure Installation Bracket into place: Position the Installation Bracket over the drilled starter holes. -
Page 6: Usage Guideline
Q: Can this product be used with any J1772 EV charging cable and handle? A: Yes, the product is designed to accommodate most J1772 EV charging cables and handles available on the market. However, it is recommended to check the compatibility of your specific cable and handle with the product specifications to ensure a proper fit. -
Page 7: Warranty And Support
And get special offers! Scan QR code to go to our registration page. Disclaimer LENZ is not affiliated with Tesla Inc. The term 'Tesla' is a trademark of Tesla Inc., used here only for compatibility description purposes. Headquarters...
