Mantion SLID'UP 1400 Instructions For Assembly

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
x2
x2
x4
x4
NM_SU1400_04
A 02-2024
INSTRUCTION DE MONTAGE
MONTAGEANLEITUNG
INSTRUCTIONS FOR ASSEMBLY
INSTRUCCIONES DE MONTAJE
INSTRUKCJA MONTAŻU
x4
x4
x11
D = 1890 mm MAX
B = 1005 mm MAX
D
www.slidup.net
SLID'UP 1400
X1
x10
x2
B = D/2 + 60
A x B = 1,1 m² MAXI
30
KG
135 Km/h
MAX
25 MINI
35 MAXI
57
26
±6
15 MINI
20 MAXI
25 MINI
35 MAXI
1/8
1/8

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLID'UP 1400 and is the answer not in the manual?

Questions and answers

Related Manuals for Mantion SLID'UP 1400

Summary of Contents for Mantion SLID'UP 1400

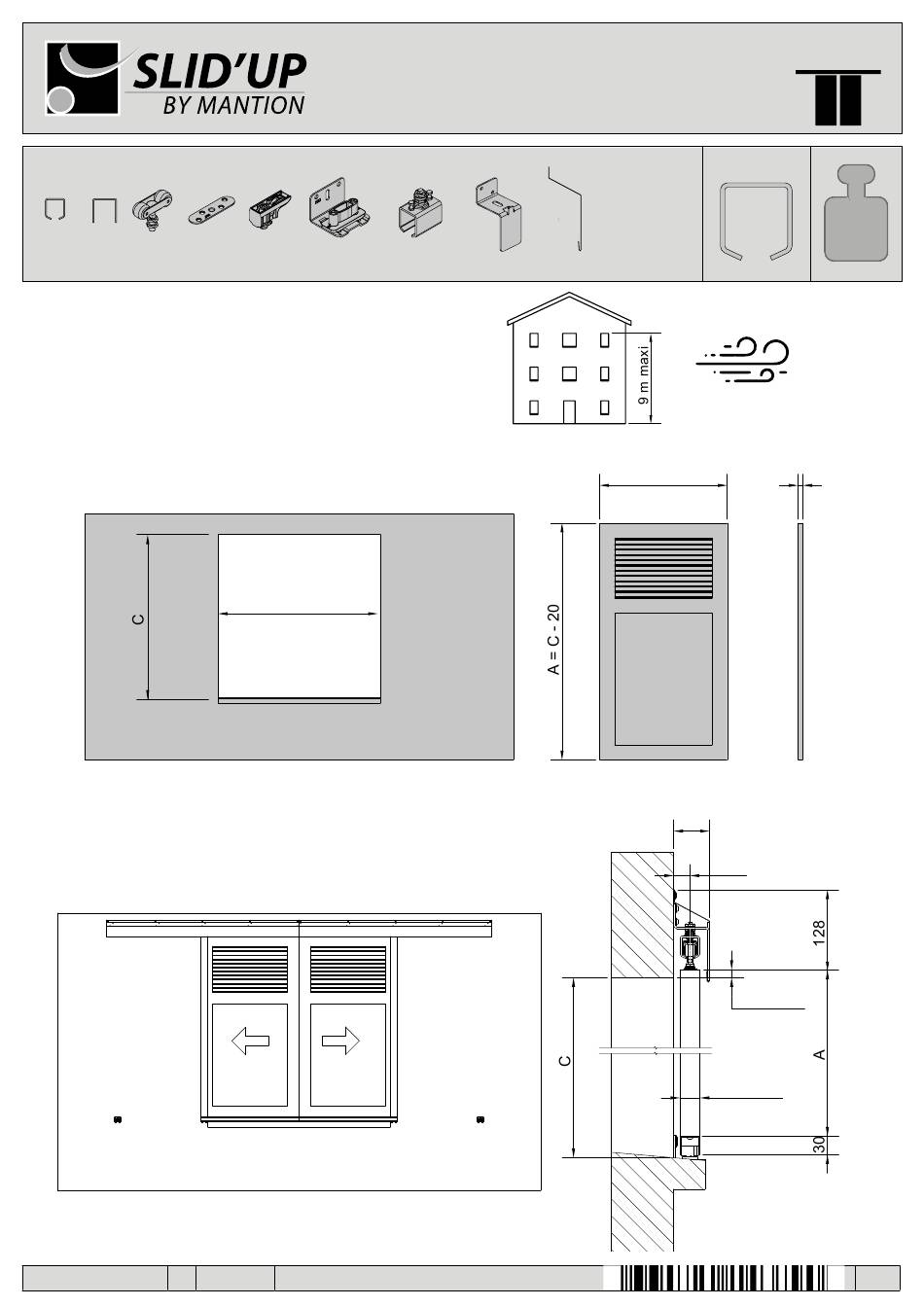

  • Page 1 INSTRUCTION DE MONTAGE SLID’UP 1400 MONTAGEANLEITUNG INSTRUCTIONS FOR ASSEMBLY INSTRUCCIONES DE MONTAJE INSTRUKCJA MONTAŻU 135 Km/h 25 MINI 35 MAXI B = D/2 + 60 D = 1890 mm MAX B = 1005 mm MAX A x B = 1,1 m² MAXI ±6 15 MINI 20 MAXI...
