- Page 1 JZ M30 QUICK SEARCH KIT User manual V1.0 2024.04...
-
Page 2: Reading Tips
Reading tips Usage precautions Do not stare directly at the spotlight. Do not obstruct the rear cover heat sink or cause deformation of the heat sink structure. Do not intervene with external force in the stability of the gimbal light. Do not touch the main body of the lamp head with your bare hands during operation. -
Page 3: Table Of Contents
Table of Contents R e a d i n g t i p s ....................2 Usage precautions ......................2 T a b l e o f C o n t e n t s ..................3 P r o d u c t O v e r v i e w ..................4 I ntr oducti on........................ -
Page 4: Product Overview

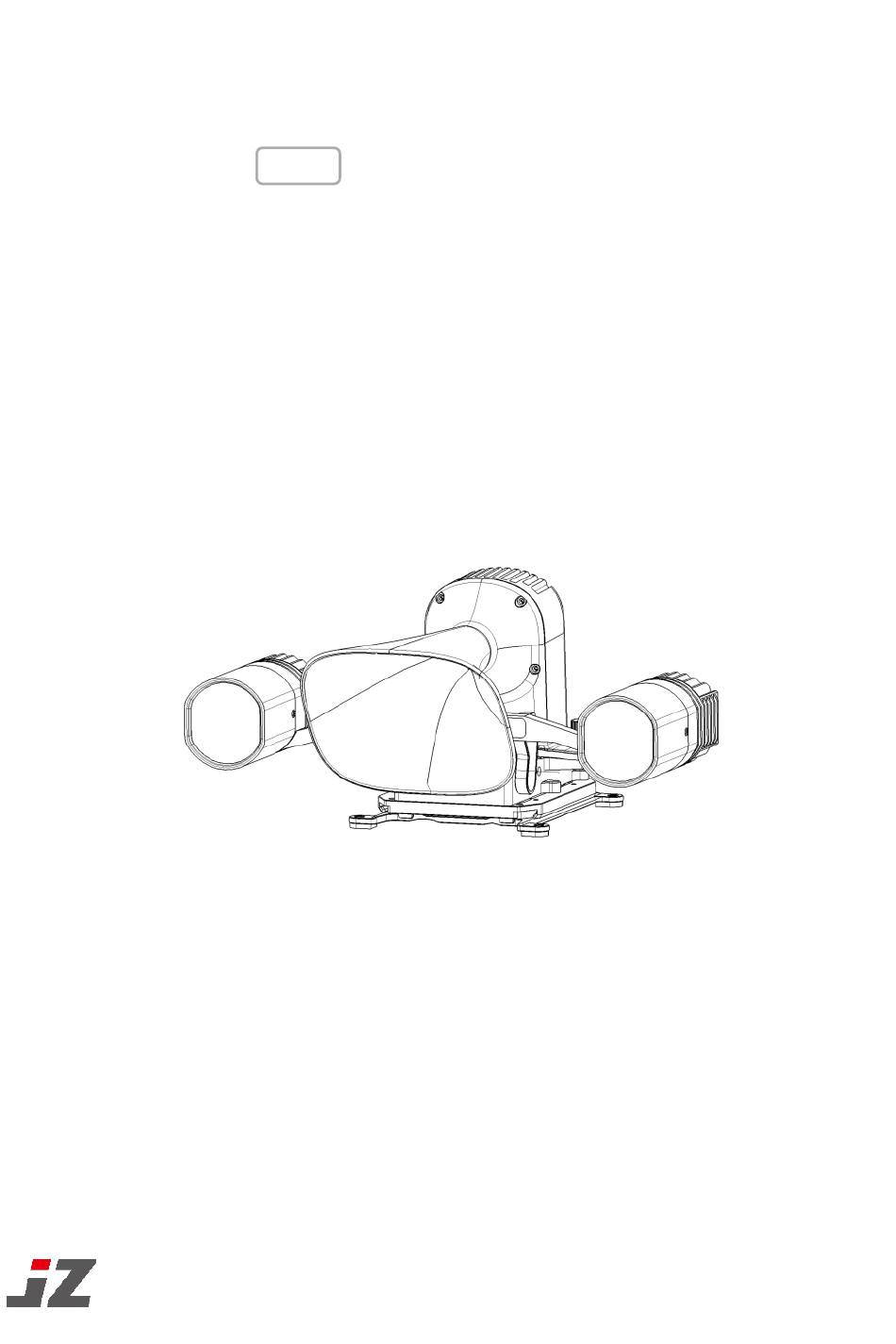

The JZ_M30 QUICK SEARCH KIT integrates shout and lighting functions. The device has a lighting power of 60W while weighing only 230g, which is very lightweight. The M30 QUICK SEARCH KIT set features a 14° concentrated lighting design that can provide more than 36Lux illumination over a distance of 50 meters. -
Page 5: Component Names
+30° to -90° control, supports pan-tilt and camera linkage. Color strobe light set Comes with 5 colors (red, green, blue, yellow, white) for matching, Allows customization of strobe colors. Fixed bracket Used to securely install the M30 QUICK SEARCH KIT on the aircraft. © 2024 极至科技 版权所有... -
Page 6: Installation
Installation Supported Aircraft Types Supported models：DJI Matrice 30 Series. Please upgrade the firmware of your aircraft device to the latest version. Before use, please ensure that the aircraft is in normal operating condition. Installation and Sartup Slide and push bracket B into bracket A until a "click" sound is heard to ensure it is locked securely (as shown in the figure below). -
Page 7: Activation Steps
Activation Steps * These steps are for reference only. Although the product model shown in the picture may be different from your device model, it will not affect the device activation process. The device has been installed on the aircraft. After both the aircraft and the remote controller are powered on, the remote controller will connect to the aircraft and display the PSDK name JZ_T60S. - Page 8 Upon entering the flight page, open the PSDK floating window. You will see a prompt indicating "Not activated, function unavailable," along with the device's serial number. Go to the JZ official website, select "Support" -> "Device Activation." © 2024 极至科技 版权所有...
- Page 9 Enter the device serial number (SN), click the "Generate Activation Code" button to obtain the device activation code. Following the steps in the image, input the device activation code obtained in step 4 to activate the device and unlock all functions. 2.
-
Page 10: Dji Pilot Control
DJI PILOT Control Connection DJI Pilot APP Power on the aircraft and the remote controller. Upon successful connection, DJI PILOT 2 will display the payload name "JZ_T60S." © 2024 极至科技 版权所有... -
Page 11: Key Mapping
Key mapping Once the device is successfully connected, you will enter the flight interface. In this interface, by clicking the PSDK button on the right, you can display the floating window of the function list. © 2024 极至科技 版权所有... -
Page 12: Loudspeaker Function Menu
Loudspeaker function menu After successfully connecting the device, you will enter the flight interface. In this interface, click on the three-dot settings icon in the top right corner to enter the Payload settings. Once there, click on the PSDK button to display all the functions of the device. Switch the way of shouting ©... - Page 13 Recorded shouting: Play the audio recorded by the remote control microphone . Real-time shouting. © 2024 极至科技 版权所有...
- Page 14 Text playback © 2024 极至科技 版权所有...
-
Page 15: Searchlight Function Menu
Searchlight function menu Brightness adjustment: quickly set the searchlight brightness. Angle adjustment: adjust the searchlight exposure (cloud head) angle © 2024 极至科技 版权所有... -
Page 16: Upgrade
Firmware Upgrade Upgrade The upgrade process for the JZ_M30 QUICK SEARCH KIT is divided into two parts: the searchlight section and the megaphone section. The upgrade methods for each section are different, so please upgrade them separately. Loudspeaker Upgrade Remove the megaphone. Connect the megaphone to the computer using a USB-C data cable (note that the USB-C port of the megaphone has a specific orientation). - Page 17 Copy the new version of the firmware to the root directory of the megaphone's built-in USB flash drive. Wait for the new firmware to finish copying. Once the copying is complete, please eject the USB flash drive and wait patiently for the ejection to finish before disconnecting the data cable.
- Page 18 Searchlight Upgrade Remove t he searchlight . Visit DJI's official website or the relevant software download page. You can enter "DJI Assistant 2 download" in the search engine to find relevant download links. On the download page, find the DJI Assistant 2 software version suitable for your computer's operating system.
-
Page 19: Notes
Connect the USB-C tuning port of the aircraft to the computer using a data cable. Install the searchlight that needs to be upgraded onto the aircraft, and then turn on the aircraft. Open DJI Assistant 2, and if the connection is normal, the corresponding aircraft will be automatically recognized.
