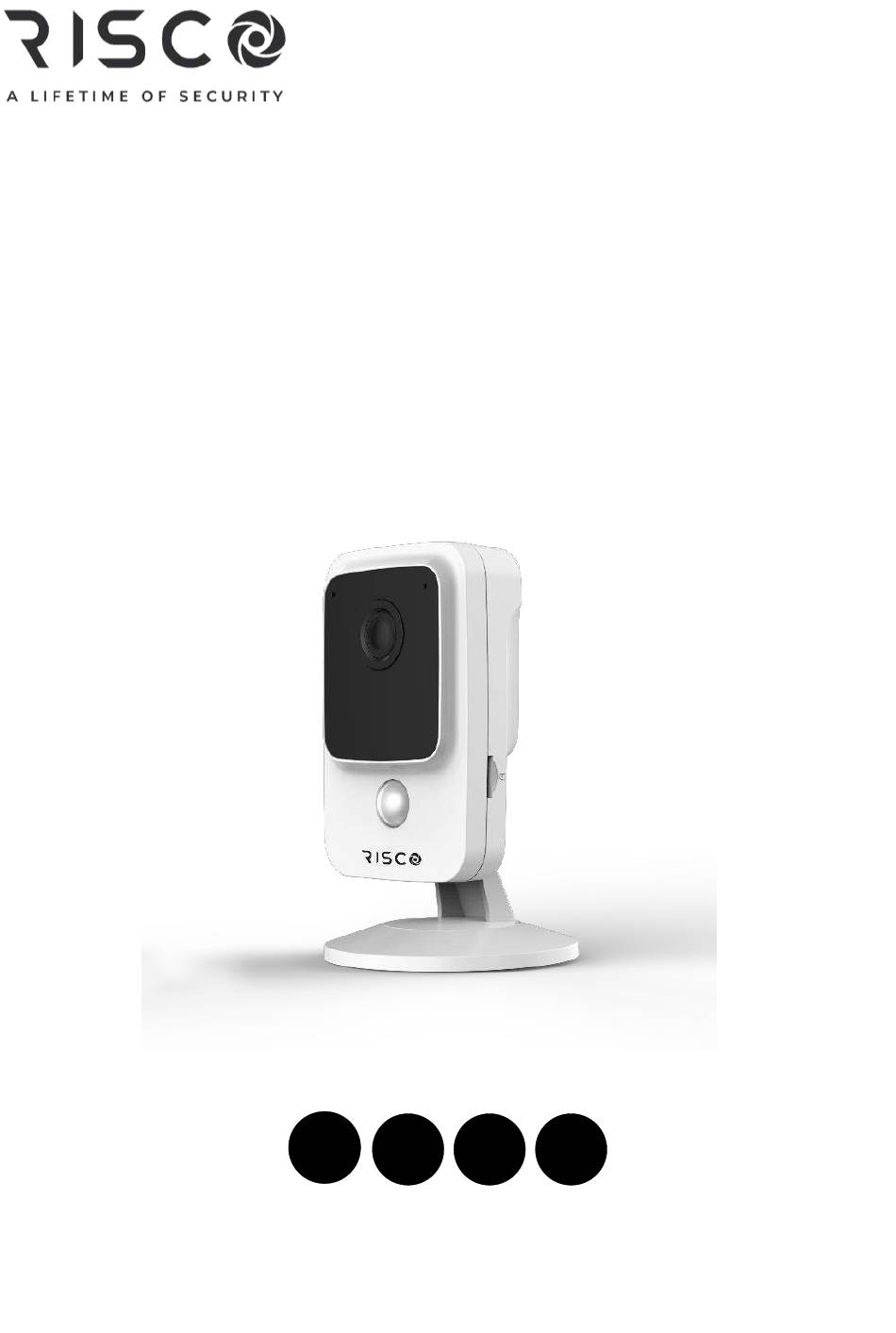

- Page 1 VUpoint Cube 2MP Wi-Fi Camera Model: RVCM11W1500B Quick Guide...
- Page 2 Reset/WPS button for 8 seconds; the light turns off. Indication Status Green light slow IP Camera is not connected to the RISCO Cloud. Please check for flashing internet connection. Green light steady on IP Camera is successfully connected to the RISCO Cloud.
-
Page 3: Defining Ip Camera Settings
Defining IP Camera Settings Step 1 Connect one end of the network cable (LAN) to the camera Ethernet port and the other side to your router. Power up the camera with an appropriate power supply. Step 2 If the camera is connected to a VUpoint NVR, refer to the VUpoint Network Video Recorder Installation Guide for further installation instructions. - Page 4 Step 5 Select a wireless network from the available list If your network is password protected, enter a password into the displayed password field Click for Wi-Fi network connection Step 6 Click OK...
-
Page 5: Product Specification
Product Specification Parameter Description Image Sensor 1/2.7” 2Megapixel progressive CMOS IR Distance 10 m Focal Length 2.8 mm Power Supply 12V DC, Power Consumption <3.5W Wi-Fi Power Output 20dBm max. Wi-Fi Frequency 2.4 GHz Note: For Australia and New Zealand, the approved AC/DC adapter shall be used according to the country’s regulations. - Page 6 Contacting RISCO RISCO Group is committed to customer service and Product support. You can contact us through our website (www.riscogroup.com) or at the following telephone and fax numbers: United Kingdom Belgium (Benelux) Tel: +44-(0)-161-655-5500 Tel: +32-2522-7622 support-uk@riscogroup.com support-be@riscogroup.com Italy Tel: +39-02-66590054 Tel: +1-631-719-4400 support-it@riscogroup.com...
