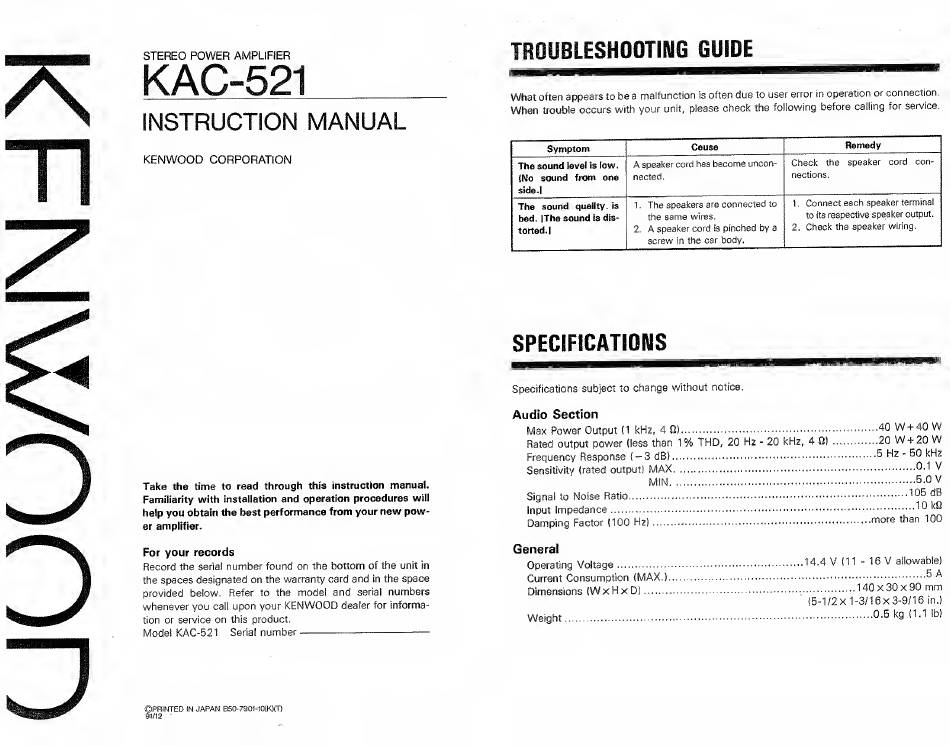

Kenwood KAC-521 Instruction Manual

B
STEREO POWER AMPLIFIER
NSTRUCTION MANUAL
KENWOOD CORPORATION
What often appears to be a malfunction is often due to user error in operation or connection.
When trouble occurs with your unit, please check the following before calling for service.
Symptom
Cause
Remedy
The sound level is low.
(No sound from one
side.}
A speaker cord has become uncon¬
nected.
Check the speaker cord con¬
nections.
The sound quality, is
bad. (The sound is dis¬
torted.)
1. The speakers are connected to
the same wires.
2. A speaker cord is pinched by a
screw in the car body.
1. Connect each speaker terminal
to its respective speaker output.
2. Check the speaker wiring.
SPECIFICATIONS
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will
help you obtain the best performance from your new pow-
er amplifier.
For your records
Record the serial number found on the bottom of the unit in
the spaces designated on the warranty card and in the space
provided below. Refer to the model and serial numbers
whenever you call upon your KENWOOD dealer for informa¬
tion or service on this product.
Model KAC-521 Serial number'--—
Specifications subject to change without notice.
Audio Section
Max Power Output (1 kHz. 4 Q).40 W + 40 W
Rated output power (less than 1% THD, 20 Hz - 20 kHz, 4 0).20 W + 20 W
Frequency Response (-3 dB).5
Sensitivity (rated output) MAX.^
MIN.5.0 V
Signal to Noise Ratio.^'^5 dB
Input impedance.10 kfi
Damping Factor (100 Hz).
General
Operating Voltage.
Current Consumption (MAX.)
Dimensions (WxHxD).
Weight.
14.4 V (11 - 16 V allowable)
.5 A
.140x30x90 mm
(5-1/2x1-3/16x3-9/16 in.)
.0.5 kg (1.1 lb)
©PRINTED !N JAPAN B50-7901-10{K)(D
91/12
