Summary of Contents for AtlasIED Atmosphere AZMP8-DW

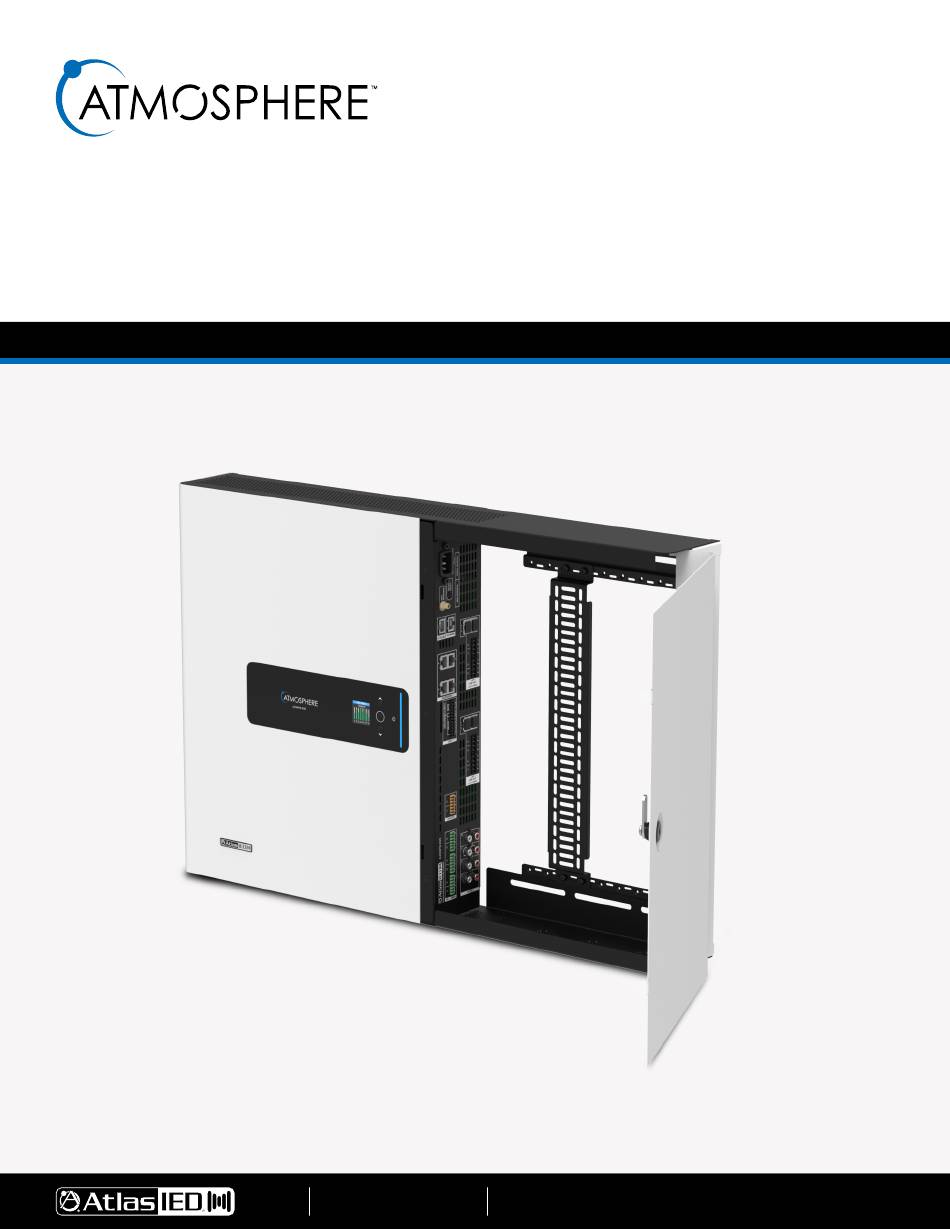

- Page 1 AZMP8-DW ATMOSPHERE™ ALL-IN-ONE WALL MOUNT CABINET INSTALLATION GUIDE 1601 JACK MCKAY BLVD. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 TELEPHONE: (800) 876-3333 AtlasIED.com AtlasIED.com ENNIS, TEXAS 75119 U.S.A. ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM SUPPORT@ATLASIED.COM...
-
Page 2: Table Of Contents
Step 9 – Connect conduit for wiring (optional) ..........13 Step 10 – Connect electrical, audio, and other wiring to panel ....14 Step 11 – Power on unit and configure settings..........15 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 3: Introduction
ITEM should always be observed: Level • All AtlasIED products must be used in accordance with local, Power Drill state, federal, and industry regulations. It is the owner’s and user’s responsibility to evaluate the reliability of any mounting method for Cabinet mounting hardware / screws their application. -
Page 4: Step 1 - Open The Box And Remove Contents
Open the flaps at the top of the box, then flip the box upside-down on the floor. Slowly and carefully lift the box leaving the contents contained within (Figure 1). Make sure all items are included (Figure 2). Figure 1 STEP 1 - CONTINUED ON NEXT PAGE 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... - Page 5 PARTS - ( INCLUDED ) ITEM AZMP8-DW Cabinet Mounting Bracket Power Cord Connector Kit QR placard Kit Wi-Fi antenna Extender Cabinet Lock Keys Lacing Bar Screws (M6) Lacing Bar 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 6: Step 2 - Identify Where The Azmp8-Dw Will Be Hung
(475 mm) (350 mm) for Open Door (431 mm) (Signal) Gang Box Mounting Area Footprint of Cabinet 9.75 in 3.5 in (248 mm) (88 mm) Figure 3 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 7: Step 3 - Prepare Wall Boxes & Cable Pass Through Plates (Optional)
Install desired items (Figure 4). Be sure to comply with all local regulations and codes. 13.75 in (350 mm) 9.75 in (248 mm) Figure 4 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 8: Step 4 - Mount Bracket On The Wall
Mount the bracket to the wall horizontally using at least two (2) screws (Figure 6). Ensure secure mounting. The AZMP8-DW weighs 30.5lbs (14kg) and must be secured to wall studs, anchors, or other weight-bearing surfaces. Figure 5 Figure 6 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 9: Step 5 - Hang The Cabinet Onto The Mounting Bracket
On the back of the cabinet there are two guiding pegs (A) that fit into slots (B) on the top of the mounting bracket (Figure 8). Once properly connected the mounting bracket will hold the weight of the cabinet for securement in the next step. Figure 7 Figure 8 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 10: Step 6 - Secure Mounting Point At The Bottom Of Cabinet
To fully secure the cabinet to the mounting surface, connect at least one (1) fastener through any slot at the bottom of the cabinet to the wall (Figure 9). It is recommended to secure into a wall stud or other solid surface when possible. Figure 9 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 11: Step 7 - Mount Lacing Bar To The Rails And Screw In Place (Optional)
Determine the best location and secure the lacing bar to the top and bottom rails using the four (4) included Phillips head screws (Figures 10 & 11). Figure 10 Figure 11 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 12: Step 8 - Wi-Fi Antenna Extension (Optional)
(Figure 12b). Finally, screw the antenna to the top of the cabinet (Figure 12c). Figure 12a Figure 12b Figure 12c 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 13: Step 9 - Connect Conduit For Wiring (Optional)
For installations requiring a conduit connection for wiring, there are several perforated locations on both the top and bottom of the cabinet (Figure 13a). Knock out the required size and attach conduit using an appropriate conduit connector (Figure 13b). Figure 13a Figure 13b 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 14: Step 10 - Connect Electrical, Audio, And Other Wiring To Panel
STEP 10 - CONNECT E LECTRI CAL , AU DIO, A N D OT HE R WIR ING TO CON NECTOR PA N E L With the cabinet mounted and secure connect audio, electrical, and other cabling to the connector panel of the unit (Figure 14). Figure 14 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM... -
Page 15: Step 11 - Power On Unit And Configure Settings
FRONT PANEL CONTROLS: LEARN MORE: • Standby – Put the unit into and out of standby. Note: This function can • AtlasIED.com/Atmosphere be disabled in configuration software. • AtlasIED.com/AZMP8-DW • LCD Menu Screen – Display IP address, configure network settings, view •...
