Summary of Contents for Well Splash FCT-EL-SPLASH-WL

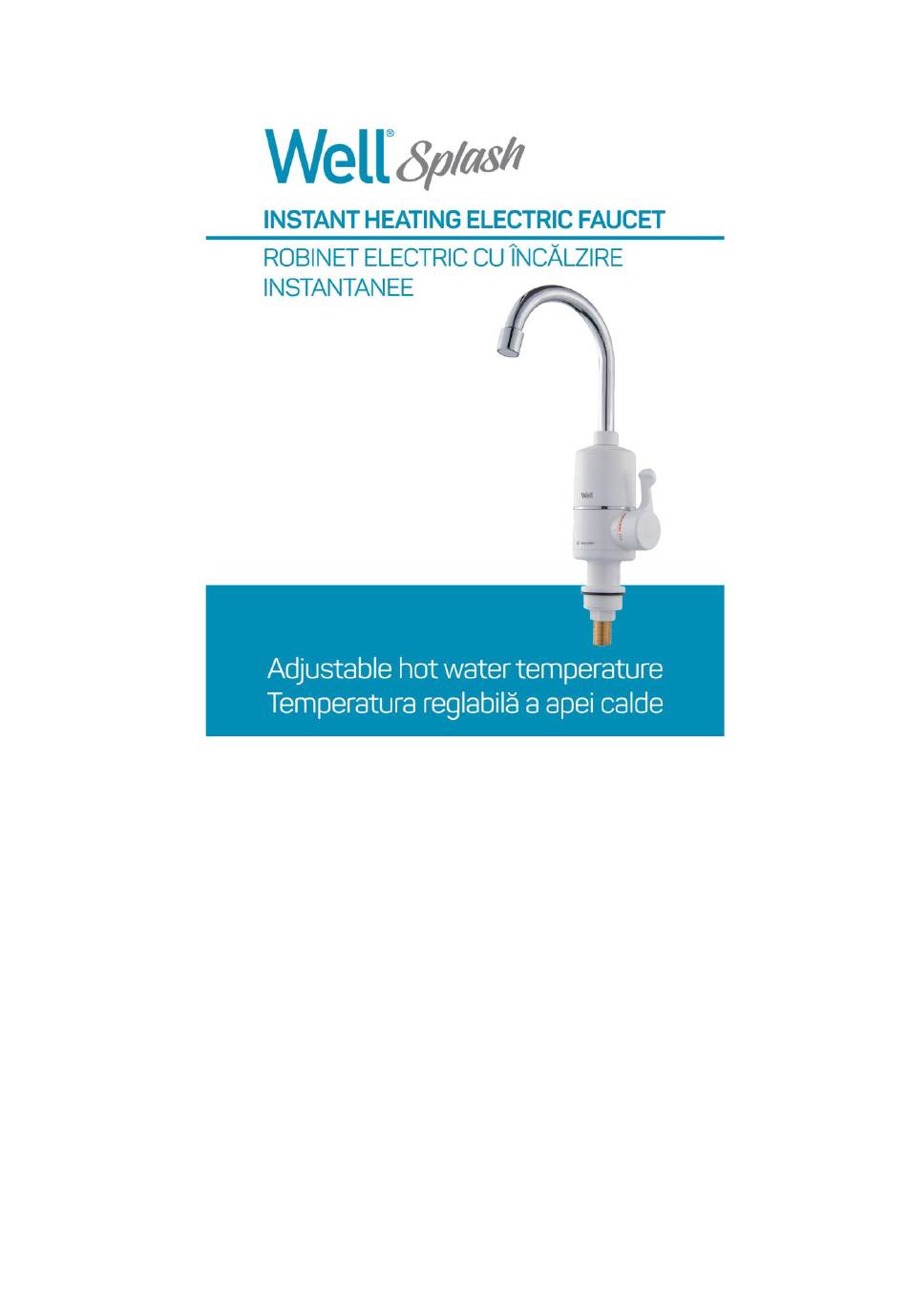

- Page 1 WELL INSTANT WATER HEATING FAUCET USER MANUAL Model: FCT-EL-SPLASH-WL 1/11...
-
Page 2: Table Of Contents
ELECTRICAL DIAGRAM ....................... 9 FAULT ANALYSIS AND CLEARING METHODS ..............10 PACKING LIST ........................10 WASTE MANAGEMENT ...................... 11 Thank you for buying our Well Instant Heating Faucet. Please read the manual carefully before using and keep it for the future reference.. 2/11... -
Page 3: Product Introduction
PRODUCT INTRODUCTION This product can provide instant hot water within few seconds. faucet nozzle can be rotate left and right, which enables this machine to be used in single sink, double sinks and platform basin Type: FCT-EL-SPLASH-WL Application: kitchen, garage and the other appropriate environments water inlet style: side water inlet INSTALLTION CONDITIONS... -
Page 4: Installtion Methods Of Products
INSTALLTION METHODS OF PRODUCTS Check the wire and water route. turn down the water gate before installation. take water heater from foam box and remove sealing paste (picture 1). Picture 1: schematic diagram of removing the sealing paste downside water inlet machine. Check the position of rubber ring and circlip. -
Page 5: Installtion Methods Of Downside-Inlet Machines
INSTALLATION METHOD OF DOWNSIDE-INLET MACHINES 1. Abut water outlet pipe with main engine and screw tight. (note: do not damage rubber ring during installation). 2. Embed sealing ring into base of main engine with crown upward. Then screw downsideinlet connecting piece into base of main engine and screw tight. 3. -
Page 6: Key Points In Installation And Adjusment
KEY POINTS IN INSTALLATION AND ADJUSTMENT • during decoration, please preserve 2.5-4 cm2 power wire for water heater. • If decoration is finished, with no sunk wire reserved in the wall, power wire qualified to required standards can be led-in from the nearest spot. •... -
Page 7: Operating Method
OPERATING METHOD As indicated in picture 5, nozzle and nozzle tube can offer a 360 degree rotation in horizontal plane, offering wash needs. Picture 4: As indicated in picture 6, there are 3 zones in index dial of the handle: “cold water zone”, “stop zone”, “hot water zone”. -
Page 8: Maintenance Method
MAINTENANCE METHOD Cleaning of water outlet: When water flow becomes disorder or smaller, the water outlet needs cleaning. Steps are as follows: unscrew the water outlet counterclockwise and out, flush the water outlet under high-pressure faucet upside down. Dig out and remove the adherent deposit from the hole in the water outlet with thin iron wire and then screw it back. -
Page 9: Attentions
ATTENTIONS • Water supplly should be released connected to the power source. • This water heater must be installed vertical, other angles are forbidden. Right installation method can be referred to in the installation diagram. • If the volume of your power grid is small, please try not to use other high-power electric appliances (air conditioner, microwave, etc.) while using this water heater. -
Page 10: Fault Analysis And Clearing Methods
FAULT ANALYSIS AND CLEARING METHODS Phenomenon of Reason of breakdown Treatment method breakdown The red light does not turn on Power source is not connected Check power wire, check and water does not become or water pressure is too low wire connecting, make sure hot at the turning of hot water the lowest water supply... -
Page 11: Waste Management
Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health. Submitting waste electrical and electronic equipment to special collection centers makes the waste to be recycled properly and protecting the environment.
