TP-Link Tapo T300 Manual

About This Guide

This guide provides a brief introduction to the Smart Water Leak Sensor and the Tapo app, as well as regulatory information.
Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo experience.

Conventions
In this guide, the following convention is used:

Convention	Description
Blue	Key information appears in blue, including management page text such as menus, items, buttons and so on.
Underline	Hyperlinks are in blue and underlined. You can click to redirect to a website.
Note:	Ignoring this type of note might result in a malfunction or damage to the device.

More Info

• Specifications can be found on the product page a thttps://www.tapo.com.
• Our Technical Support and troubleshooting information can be found athttps://www.tapo.com/support/.
• The setup videos can be found athttps://www.tp-link.com/support/setup-video/#smart-sensors.

Introduction

The Tapo Smart Water Leak Sensor notifies you via different methods in case of an emergency. Get alerted immediately when a water leak occurs, so you can respond quickly to prevent further damage.

• Drip & Leak Alert - Features 6 highly sensitive sensor probes to quickly and consistently respond to drips and leaks for faster protection of your property.
• Built-in 90 dB Alarm - Alerts you immediately with its adjustable 90 dB alarm when leakage occurs. Press once to silence the alarm after you find the spot.
• Instant App Notifications - Receive an instant app notification when a leak happens. Find out even while away from home to prevent worse water damage.
• Tapo Hub Alarm - Set a Smart Action and tigger the Hub alarm for additional audible alert coverage in your home when water leakage is detected.
• Visible Alarm with Smart Lights - Set up Smart Actions in the Tapo app to get a visual alert from your Tapo smart light bulb before disaster strikes. (Tapo smart lights sold separately)
• IP67 Rating - Provides high-grade water resistance and dust protection and a long service life. Ideal for humid and dusty environments.
• Flexible Placement - No wiring requrired and simple to use. Place the sensor anywhere leaks or floodling may occur, like near a washing machine, water heater, sink/bathtub, and more.
• 3 Year+ Battery - Uses two replaceable AAA/LR03 batteries (pre-installated out of box) and provides you with up to three years of protection. Receive in-app reminders when the batteries are low.

*Battery life of up to 3 years is based on TP-Link's laboratory results when in standby mode. Actual battery life may vary depending on working conditions and environments.

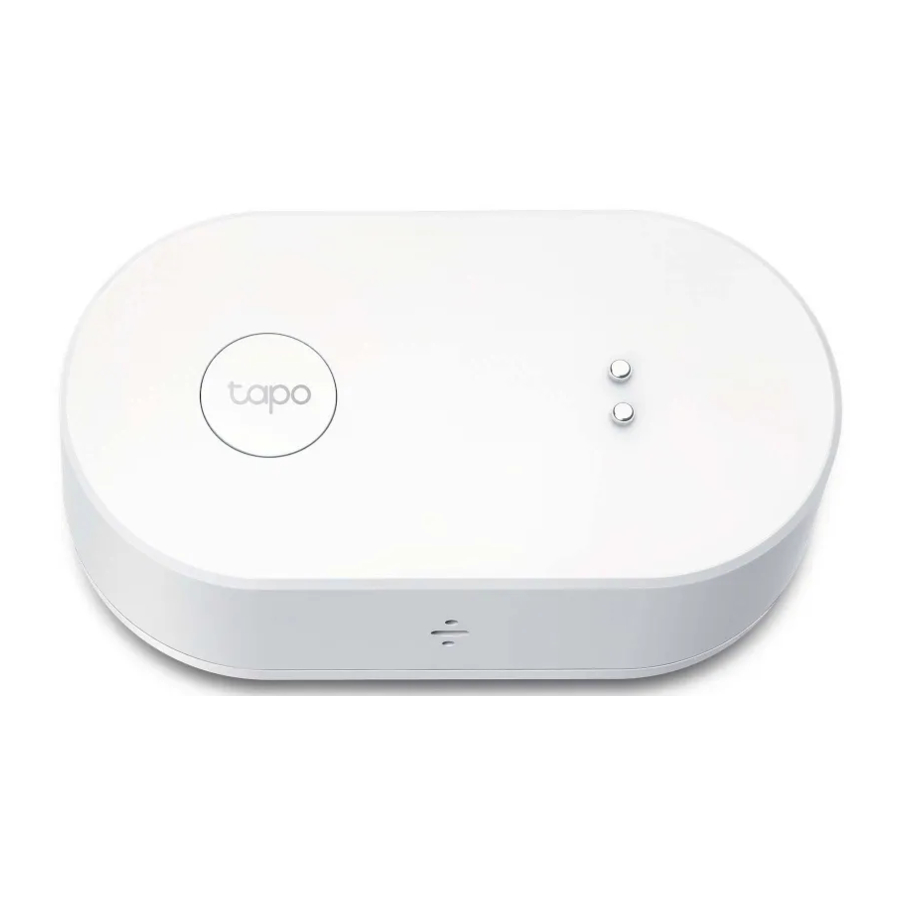

Appearance

2. LED Indicator

   Blinking	Enter pairing mode
   Blinks once	Adjusted alarm volume level to Mute
   Blinks twice	Adjusted alarm volume level to Low
   Blinks 3 times	Adjusted alarm volume level to Normal
   Blinks 4 times	Adjusted alarm volume level to High

Tapo Smart Ecosystem

Tapo is the easy way to turn your home into a smart home. With the Tapo Hub as a bridge, Tapo Smart Sensor works with a wide range of Tapo accessories. So you can easily control and monitor your home from anywhere.

Set Up Your Smart Sensor

Watch setup videos at https://www.tp-link.com/support/download/tapo-t300/

Before You Start
A Tapo Hub is required. Make sure your Tapo Hub's firmware is updated to the latest version and successfully set up via the Tapo app.


OR

1. Set Up Your Sensor
   Tap the button in the Tapo app, tap Sensors, and select your model.

2. Power Up & Check LED
   Remove the battery insulation tab to power up your sensor. The LED should blink. Follow the app instructions to complete setup.

3. Test Your Sensor
   After setup, single press the control button on your sensor and check if the hub sounds an alarm.

4. Place Your Sensor
   Lay the sensor flat to monitor water leaks.


Use Your Smart Sensor

After you successfully set up your hub and sensor, you will see your devices listed on the home page. With the Tapo app, you can view and manage your devices and get instant notifications anytime, anywhere.

Home Page
This page lists all the devices you've added and you can view them directly and manage them easily. Tap the card to enter its page.

Home Page Settings
Long press on a card, then you can reorder cards, tap to remove your device from your account, share your device, favorite/unfavorite device, or relocate your device to other Home.

Status Page
You can check the event logs. Slide the panel up to check more settings or tap the gear icon to enter the Settings page.

Featured Smart Actions
The sensor can work with other Tapo devices to automate your home. You can customize smart actions based on the templates.

Device Settings
Check/edit the basic info, set notifications schedules, adjust the alarm volume, or remove your device from your account.

How to Reset Your Smart Sensor

Option 1. Via the Button
Press and hold the button for at least 5 seconds until the LED starts blinking.

Option 2. Via the Tapo App
Long press the card on the home page and tap or go to the Device Settings page and tap the Remove button to remove your sensor from your account.

How to Replace Battery

2. Replace with the new batteries (AAA/LR03).


Safety Information

• Keep the device away from fire or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
• Do not ingest battery, Chemical Burn Hazard

Operating Temperature: 0 ºC– 40 ºC (32°F–105°F )
Operating Humidity: 10%–90%RH, Non-condensing
Handling Instructions for Battery
Please read and follow the handling instructions for the battery before use. Improper use of the battery may cause heat, fire explosion, damage or capacity deterioration of the battery.

• Do not place or leave the battery and equipment in the reach of infants so that they are not able to swallow or mistreat the battery by mistake.
  In case of ingestion, consult with a doctor immediately.
• Do not let leaked electrolyte come into contact with eyes or skin.
  In such a case, immediately wash the area of contact with clean water and seek help from a doctor.
  If not treated soon, prolonged contact may cause serious injury.
• Do not put the battery into a fire. Do not use it or leave it in a place near fire, heaters, or high temperature sources.
  In such a case, the insulator in the battery may be melted, the safety vent and structure may be damaged, or the electrolyte may catch fire, all of which may cause heat generation, explosion, or fire.
• Do not submerge the battery in water, or wet the battery.
• Do not use or leave the battery near fire or in a car under the blazing sun. Such a high temperature may cause damage of the protecting device in the battery, which may result in an abnormal reaction, and then heat generation, explosion, or fire.
• Do not connect the battery reversed in positive (+) and negative (-) terminals in the equipment.
• Do not let the battery terminals (+ and -) contact a wire or any metal (like a metal necklace or a hairpin) with which it carried or stored together.
  In such a case, the battery will be shorted and cause an excessive current, which may result in heat generation, explosion, or fire.
• Do not connect the battery directly to an electric outlet or cigarette heater socket in car.
  With a high voltage applied, the battery may overheat, explode, or cause fire.
• Do not throw or drop the battery.
  Strong impact may damage the protecting device, which may cause an abnormal chemical reaction during charging and result in heat generation, explosion, or fire of the battery.
• Do not drive a nail in, hit with a hammer, or stamp on the battery.
  In such a case, the battery may be deformed and shorted, which may cause heat generation, explosion, or fire of the battery.
• Do not solder the battery directly.
  Heat applied during soldering may damage the insulator of the safety vent and mechanism, which may result in heat generation, explosion, or fire of the battery.
  The battery employs a safety mechanism and a protecting device in order to avoid any danger.
  If these are damaged, heat, explosion or fire may be caused.

• Do not put the battery in a microwave or a pressure cooker.
  Sudden heat may damage the seal of the battery and may cause heat generation, explosion, or fire of the battery.
• Do not use the battery with other maker's batteries, different types and / or models of batteries such as dry batteries, nickel-metal hydride batteries, or nickel-cadmium batteries.
• Do not leave the battery in a equipment if it generates an odor and /or heat, changes color and / or shape, leaks electrolyte, or causes any other abnormality.
• Do not use the battery in the place where the static electricity (more than the limit of the manufacturer's guarantee) occurs. Otherwise, the protecting device in the battery might be damaged and cause heat generation, explosion, or fire.
• Do not use the battery in other than the operating conditions; otherwise, the battery might cause heat generation, damage, or deterioration of its performance.
  Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label
Symbols may vary from products
