Summary of Contents for Evotech RO1071

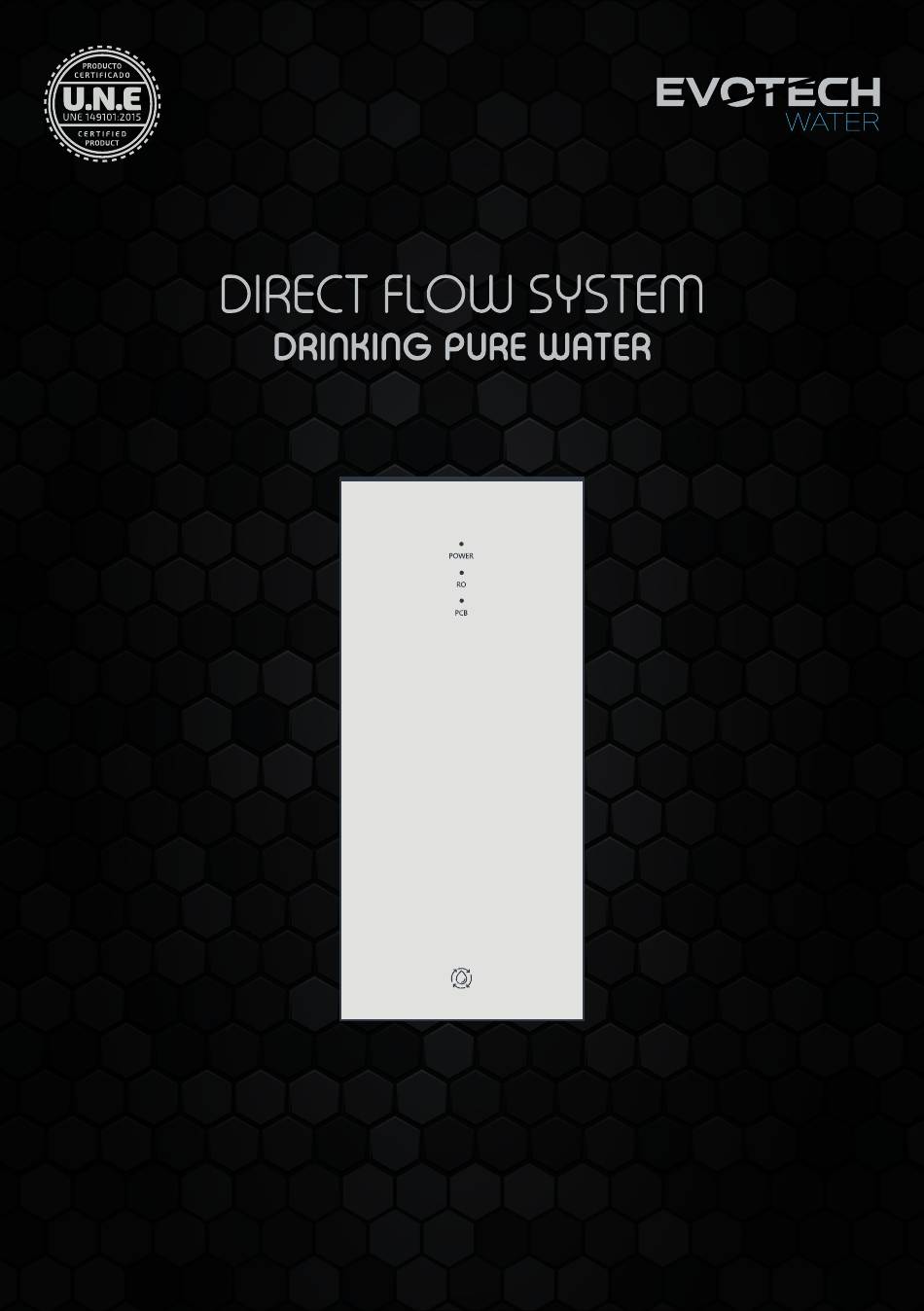

Page 1 User’s manual Direct flow system...
Page 3: Table Of Contents
INDEX USER’S MANUAL PRODUCT FEATURES WARNINGS FOR PRODUCT USE EQUIPMENT INDICATORS PARTS OF THE PRODUCT | TECHNICAL PARAMETERS | CLEANING & MAINTENANCE | EQUIPMENT COMPONENTS FILTER INTRODUCTION | INSTALLATION DIAGRAM TROUBLE SHOOTING | WATER FLOW DIAGRAM CIRCUIT SCHEMATIC DIAGRAM | INSTALLATION STEPS QUICK INSTALLATION OF THE EQUIPMENT | FIRST USE | DISPLAY AND OPERATION CARTRIDGE REPLACEMENT...
Page 4: User's Manual
USER’S MANUAL 1. PRODUCT FEATURES 5 stage filtrations effectively removes up to 99% of Thanks to its reinforced integrated water route over 1,000 contaminants including lead,bacterial, design, and leak-free DIY installation, filter changes heavy metal, remanent pesticide, mineral salt, are greatly simplified, much easier, and truly time- remanent chlorine, THMS, organic compounds, saving.
Page 5: Warnings For Product Use
USER’S MANUAL 2. WARNINGS FOR PRODUCT USE Avoid store in place with strong sunlight, which may cause aging of the water purifier machine. Please be sure to observe the following safety Avoid storing the product or keeping it in a precautions, failure to comply with the safety warning sub-zero environment.
Page 6 USER’S MANUAL Damp or dusty areas may cause circuit damage. Do not approach or touch heat and fire sources. Do not place heavy objects on the product to avoid damage. The water purifier will have slight vibration and noise when working which is normal. If the water purifier machine is not in use for a long time, please turn off the power and entry water valve.When using again, please drain out...
Page 7: Equipment Indicators
USER’S MANUAL Do not allow children to use alone. Please replace the filter element regularly to 3. EQUIPMENT INDICATORS ensure the purity of drinking water and the life of the product. The following is a brief introduction to the various Renew parts and connection examples.
Page 8: Equipment Components
Inlet water osmosis membrane faucet adapter ⅜” Note: Part of the parts shown in the drawing are for reference only. 5. TECHNICAL PARAMETERS Model: RO1071 Drain Faucet quick Teflon Voltage: 110V / 220V bracket ¼” connect fitting (x1) Frequency: 50-60Hz...
Page 9: Filter Introduction | Installation Diagram
USER’S MANUAL 5. FILTER INTRODUCTION CARTRIDGE COMPOSITION FUNCTION QUANTITY CHANGE NAME OF THE CARTRIDGE Composite filter PCB Effectively remove sediment, rust, suspended matter, odor 1 unit 12 months adsorption of residual chlorine in water. RO composite filter Accurate filtration of 0.0001 micron pollutants, intercept 1 unit 36-48 months organic matter, microorganism, calcium and magnesium ions,...
Page 10: Trouble Shooting | Water Flow Diagram
USER’S MANUAL 10. TROUBLE SHOOTING The following abnormal situation can be handled by ourselves. If it cannot be removed, please ask professional maintenance personnel to carry out comprehensive inspection and maintenance. It is normal for machines to make a slight noise while they are working.
Page 11: Circuit Schematic Diagram | Installation Steps
USER’S MANUAL 12. CIRCUIT SCHEMATIC DIAGRAM Water supply line Control panel White PE inlet Booster pump water pipe ⅜” Adapter 110V-220V-/50-60Hz Inlet water adapter High voltage switch Inlet solenoid valve Water supply line 13. INSTALLATION STEPS Install the Reverse Osmosis Faucet: Before installation, it is strongly recommended to read the instruction manual carefully and follow the installation steps below.
Page 12: Operation
USER’S MANUAL 15. FIRST USE Faucet body. Intelligent led light. Worktop. Open the cold water supply valve. Check for Power cable connector. leaks. ¼” safety clip. Insert the power cord into the outlet. The reverse ¼” blue reverse osmosis tubing. osmosis system is ready for use.
Page 13: Cartridge Replacement
USER’S MANUAL Filter life reminder: 17. CARTRIDGE REPLACEMENT Filter life indicator in the system: When the life of the PCB cartridge and RO membrane is over, the indicator light flashes and the sound reminder will play for 30 seconds until When the service life of the reverse osmosis filter the filter is replaced.
Page 14: Warranty System
WARRANTY SYSTEM CUSTOMER INFORMATION phates, sediment cartridges, etc. as indicated in the instruction manual of the equipment. Mr. Mrs.: Damages caused by bad use of the device and Address: those caused by transportation. ZIP Code and location: Phone number: Handling, modifications or repairs made by third Email: parties.
Page 15: Equipment Installation Log
EQUIPMENT INSTALLATION LOG NOTICE: Read this manual carefully. If you have any Clearly inform about the use, handling and mainte- questions, please contact the technical support nance required by the equipment to ensure proper service (T.S.S.) of your distributor. The data marked operation of water.
Page 16: System Control And Monitoring
SYSTEM CONTROL AND MONITORING TECHNICAL DATA NOTIFICATION DATE Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection...
Page 17 SYSTEM CONTROL AND MONITORING TECHNICAL DATA NOTIFICATION DATE Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection...
Page 18 SYSTEM CONTROL AND MONITORING TECHNICAL DATA NOTIFICATION DATE Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection Repair Name: Installation Signature or stamp: Maintenance Warranty Inspection...
